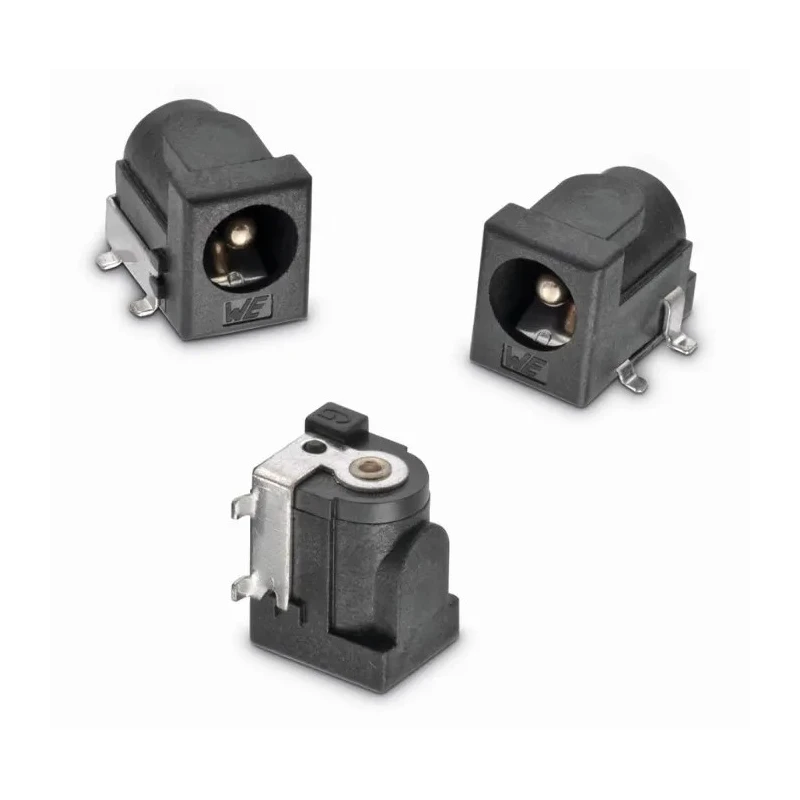

Wurth Elektronik WR-DC Right Angle DC Power Socket 5A 24V PCB Mount Length 9mm Gold Tin 694106106102

Wurth Elektronik 694106106102 WR-DC series right angle DC power socket is engineered for precise PCB mount applications requiring 5 amps current at 24 volts. It is widely used in electronic devices needing stable DC power connections.

This socket incorporates an internal normally closed single switch to facilitate power control directly from the connector. Both the pin and barrel diameters are 2.5 mm, compatible with standard DC plugs.

Contacts are gold and tin plated over copper alloy, ensuring durability and minimal contact resistance. The housing is manufactured from black UL94-V0 rated PA9T polymer which ensures flame retardant and strong mechanical stability.

Designed with a right angle orientation, it improves PCB layout efficiency by allowing the cable to exit parallel to the board, optimizing space and enabling neat cable management. Solder termination provides a reliable connection to the PCB pads, while integrated board guides aid in precise positioning during assembly.

The socket measures 9 mm in length and 21 mm in width, making it compact for modern electronic assemblies. Ideal for industrial electronics, control systems, power supplies, and consumer electronics requiring safe DC power interface.

The socket has an internal normally closed single switch mechanism. Contact plating is gold and tin, ensuring corrosion resistance and reliable connectivity. The connector gender is female, designed to mate with compatible male plugs.

Pin diameter and inside diameter are both 2.5 mm, ensuring standard fit. Contact material is copper alloy for excellent electrical conductivity. Termination type is solder for secure PCB installation. The length of the socket is 9 mm with a width of 21 mm, optimized for compact PCB layouts.

Right angle orientation improves PCB design flexibility and cable routing. The socket body is made from robust black UL94-V0 PA9T material providing flame retardancy. Explore the full Wurth Elektronik range for reliable electronic connectors and components at EnvMart.
