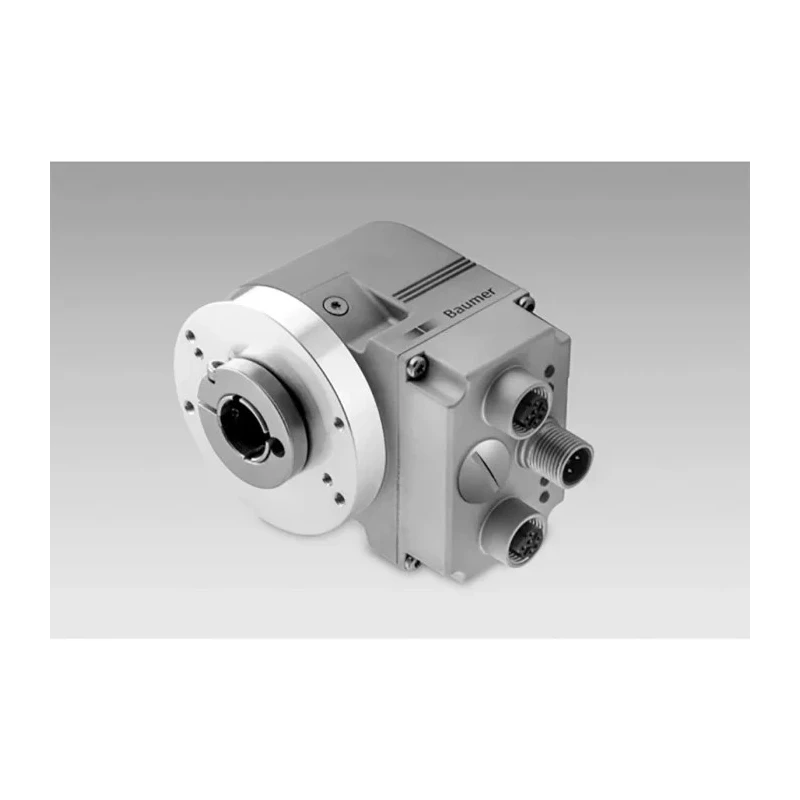

Baumer Optical Absolute Encoder 30V DC, Analogue Signal, Hollow Shaft 12 mm, Flange Mount EAL580

Free Delivery in India | Lowest Global Shipping Charges

Baumer Optical Absolute Encoder 30V DC, Analogue Signal, Hollow Shaft 12 mm, Flange Mount EAL580

Name: Baumer Optical Absolute Encoder 30V DC, Analogue Signal, Hollow Shaft 12 mm, Flange Mount EAL580
Brand: Baumer
SKU: 304497
Price: 1162.65 USD
Availability: InStock



Category Absolute Encoder Brand Baumer Condition New

Specifications

Country of Origin	Germany
Brand	Baumer
Model	EAL580
IP Rating	IP65
Mount Type	Flange
Series	EAL580
Overall Width	58mm
Maximum Operating Temperature	85°C
Max. Resolution	single turn 18 bit, multi turn 16 bit
Minimum Operating Temperature	-40°C
Shaft Diameter	12mm
Overall height	90.9mm
Shaft Type	Hollow
Terminal type	M12 Flange Connector
Interface Type	Ethernet/IP
Standards/Approvals	UL
Maximum Supply Voltage	30V dc
Overall Depth	59mm
Encoder Technology	Optical
Maximum Revolutions	6000rpm
Output Signal Type	Analogue

Key Features

Features optical encoding technology for reliable absolute position detection.
Operates at a maximum speed of 6000 rpm with high resolution single turn 18 bit and multi turn 16 bit.
Designed with a flange mount and M12 flange connector terminal for secure installations.
Built to IP65 rating ensuring protection against dust and water jets.
Operates within temperature range of -40°C to 85°C for versatile industrial environments.
Includes LED status display and supports EtherNet/IP interface.
Maximum supply voltage is 30V DC for stable performance.
Constructed with a hollow shaft measuring 12 mm diameter for easy integration.

Product Description

Baumer EAL580 is a high-precision optical absolute encoder featuring a hollow shaft design with 12 mm diameter and flange mount, designed for advanced motion control applications. It supports a 30V DC power supply and analogue output signal, providing reliable position feedback in industrial automation, manufacturing, and robotics.

The encoder offers a maximum speed of 6000 rpm and a high resolution of 18 bits single turn and 16 bits multi turn for detailed position measurement. Its robust IP65 enclosure protects it from dust and water ingress, making it suitable for harsh operating conditions.

It is also equipped with buttons enabling preset and reset functions.

Manufactured in Germany, this encoder complies with UL standards and operates reliably across temperatures from -40°C to 85°C. Its through hollow shaft and EtherNet/IP interface support seamless integration into existing automation systems.

Optical encoding technology ensuring precise position detection. Single turn 18 bit and multi turn 16 bit resolution for fine measurement. Flange mount with hollow shaft of 12 mm diameter enabling mechanical flexibility.

IP65 rated housing for dust and water resistance. LED status display and easy interface setup with rotary coding switch. Ideal for industrial automation, manufacturing, and robotics applications. Supports EtherNet/IP for modern control networks.

Built to operate from -40°C to 85°C ambient temperature. Durable and high-quality construction from German manufacturing.

This Baumer EAL580 Series Optical Absolute Encoder suits precise positional measurement requirements in demanding industrial, manufacturing, and automation contexts. Explore more motion control sensor solutions in the EnvMart Electronics & Electrical category.
