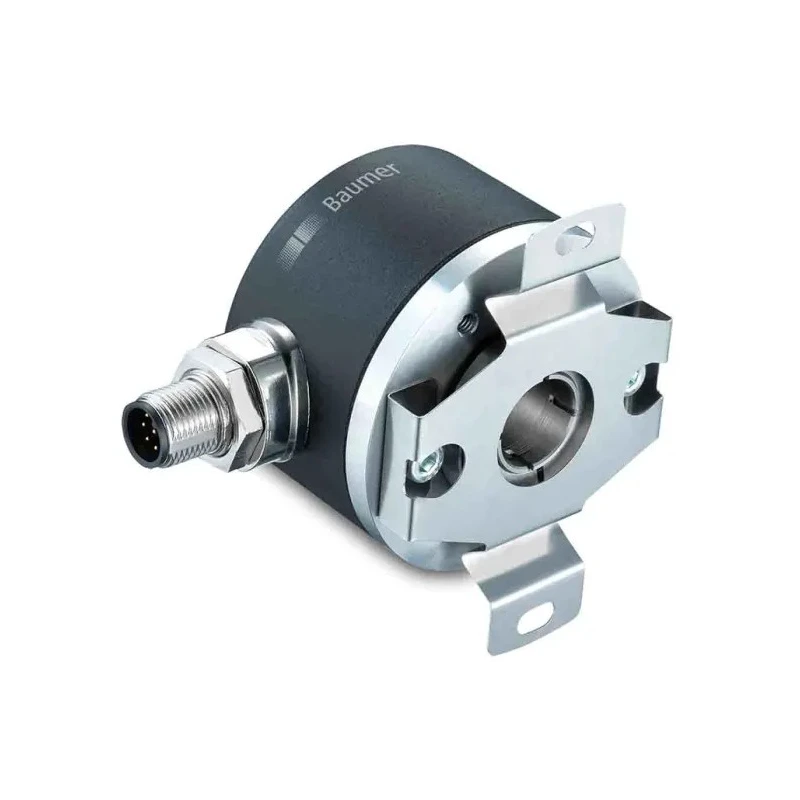

Baumer Magnetic Absolute Encoder Series EAM580, 30V Supply, 4096 ppr, Push Pull Signal, Solid 10 mm Shaft EAM580

Baumer EAM580 Series Magnetic Absolute Encoder is a high-performance rotary position sensor designed for precise motion control in industrial automation and electrical applications. Operating at 30V supply, this encoder provides a resolution of 4096 pulses per revolution (ppr), ensuring accurate angular position feedback suitable for demanding control systems.

The device utilizes state-of-the-art magnetic sensing technology, offering robust performance and resistance to shock and vibrations, making it ideal for harsh environments. Featuring a solid 10 mm shaft with a clamp-type mount flange, the encoder is easy to install and ensures mechanical stability during operation.

Its output signal conforms to the push-pull standard for enhanced signal integrity, with an interface type of SSI-Grey and an M12 flange connector for reliable electrical connection. The encoder supports rotational speeds up to 6000 rpm and operates within a temperature range from -40°C to +85°C, rated IP65 against dust and water ingress for versatile industrial usage.

Offering flexible resolution options up to 32-bit for single-turn (14-bit ST) and multi-turn (18-bit MT) modes, the EAM580 is suitable for applications requiring high angular accuracy up to ±0.15°. The compact dimensions, with an overall width and height of 58 mm and a depth of 33 mm, enable integration into various control systems and machinery.

Employs precise magnetic sensing technology for absolute rotary position measurements. Solid shaft and clamp mount for sturdy physical connection and installation. High switching frequency of 350 kHz for fast signal processing.

Designed to withstand harsh industrial conditions with IP65 rating. Wide operating temperature range for versatile application environments. Supports both single-turn and multiturn encoding with high resolution. Compact size facilitates easy integration in control panels and machinery.

Manufactured in Switzerland, ensuring premium quality and reliability.

This Baumer encoder is perfectly suited for industrial automation, laboratory instrumentation, robotics, and motion control systems requiring precise angular position feedback. Its robust construction and high resistance to environmental factors make it a dependable choice for manufacturing and process control.
