Essentra Nylon PCB Post 11.1 mm Height 18.5 mm Overall Height 3.18 mm PCB Hole Diameter MSPM-7-01

Free Delivery in India | Lowest Global Shipping Charges

Essentra Nylon PCB Post 11.1 mm Height 18.5 mm Overall Height 3.18 mm PCB Hole Diameter MSPM-7-01

Name: Essentra Nylon PCB Post 11.1 mm Height 18.5 mm Overall Height 3.18 mm PCB Hole Diameter MSPM-7-01
Brand: Essentra
SKU: 203745
Price: 0.19 USD
Availability: InStock



Category PCB Supports Brand Essentra Condition New

Specifications

Country of Origin	United Kingdom
Brand	Essentra
Material	Nylon
Colour	Natural
Height	11.1mm
Model	MSPM-7-01
Overall height	18.5mm
Standards/Approvals	RoHS
PCB Hole Diameter	3.18mm
PCB Thickness	1.57mm
Support Base Width	4.6mm

Key Features

The post height is 11.1 mm, with an overall height of 18.5 mm.
Designed for PCBs with a 3.18 mm hole diameter and 1.57 mm thickness.
Constructed from natural-colored Nylon 66 for strength and insulation.
The support base width measures 4.6 mm for stable mounting.
Complies with RoHS standards, ensuring environmental safety.
Manufactured in the United Kingdom with high-quality materials.
Micro-miniature size allows use in compact electronic assemblies.
Snap-in design that requires no fixing screws and can be released by hand.

Product Description

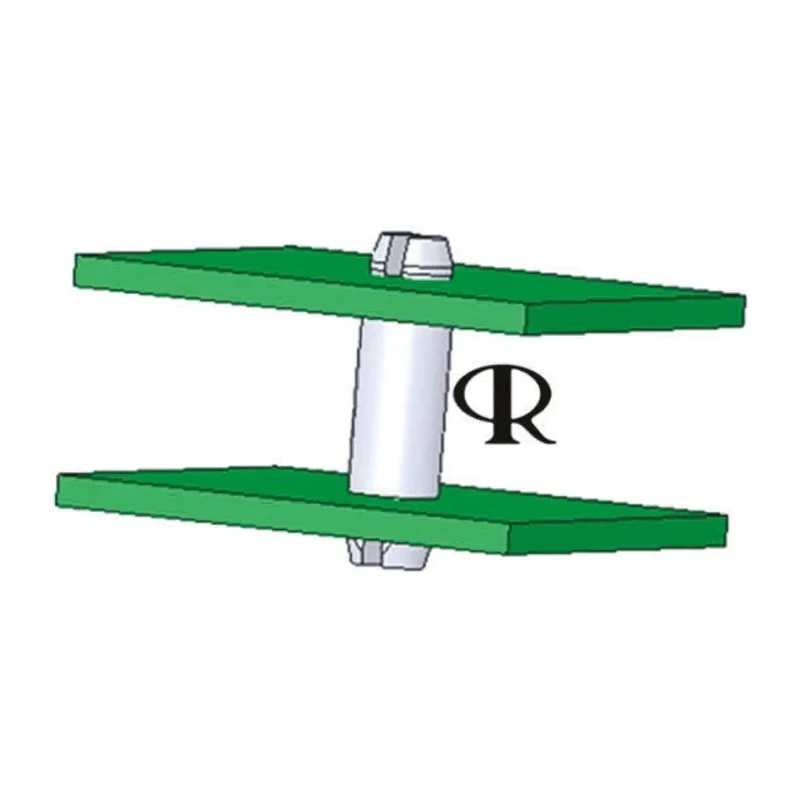

Essentra MSPM-7-01 Nylon PCB Post is a high-quality component engineered for electronic assemblies requiring reliable board support. This micro-miniature post features a precise 11.1 mm height and an overall height of 18.5 mm, making it suitable for compact printed circuit boards (PCBs) with a 3.18 mm hole diameter and a board thickness of 1.57 mm.

Constructed from Nylon 66 in a natural color, the post provides excellent electrical insulation and mechanical durability. The support base width of 4.6 mm ensures a robust mounting surface, contributing to stable board positioning during operation.

Designed for easy installation, the post snaps into place on both the chassis and the PCB without the need for fixing screws, simplifying assembly and maintenance processes. It can also be manually released if required, facilitating quick modifications.

This product conforms to RoHS standards, guaranteeing that it meets environmental and safety regulations critical for electronics manufacturing and application.

Manufactured in the United Kingdom, the Essentra MSPM-7-01 offers consistent quality and reliability for use in industrial, electronics manufacturing, repair, and prototyping scenarios. This component is particularly suited for supporting PCBs in ESD control environments, cleanrooms, and other sensitive electronic assembly contexts.

The post height is 11.1 mm, with an overall height of 18.5 mm. Fits PCBs with a hole diameter of 3.18 mm and thickness of 1.57 mm. Made from natural Nylon 66 which provides electrical insulation. Support base width of 4.6 mm for stable attachment.

RoHS compliant ensuring environmental safety. Snap-in design enables tool-free assembly and manual release. Micro-miniature size for compact electronic designs. Manufactured in the United Kingdom for quality assurance. Explore the full range of PCB Supports at EnvMart to find compatible components and accessories for your electronic assembly projects.
