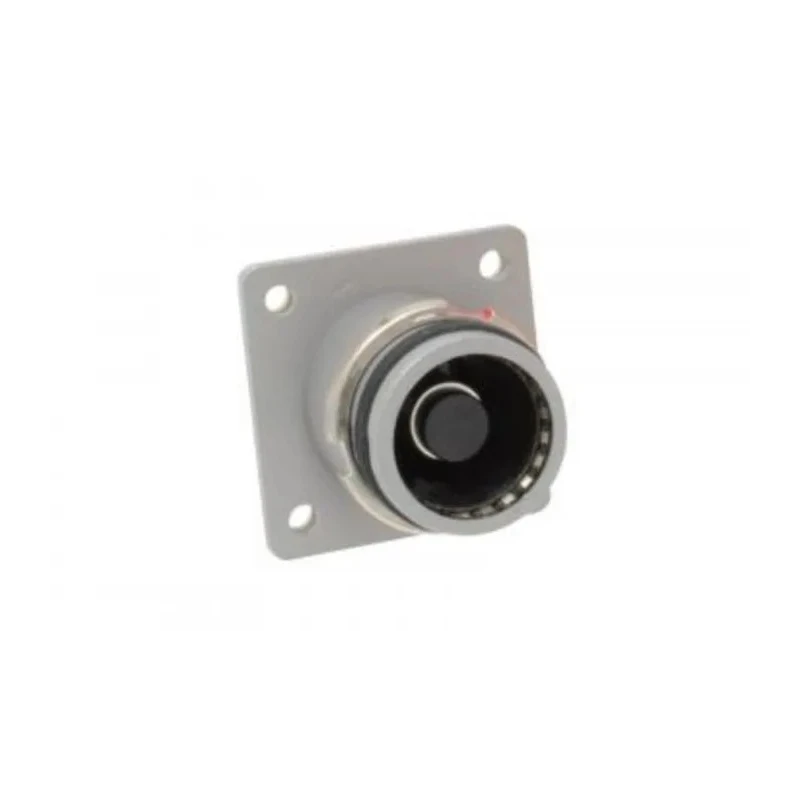

Amphenol Industrial EV Connector SLP RADSOK Receptacle with HVIL Female 200A 1500V Panel Mount IP67 SLPIRBBPSO0EH
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Current | 200A |
| Height | 31mm |
| Model | SLPIRBBPSO0EH |
| Depth | 71.5mm |
| IP Rating | IP67 |
| Connector Type | RADSOK Receptacle with HVIL |
| Width | 31mm |
| Mount Type | Panel |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SLP |
| Termination Type | Busbar |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 8mm |
| Number of Rows | 1 |
| Operating Voltage | 1500V |
| Standards/Approvals | TUV, UL, RoHS Compliant |
| Number of Contacts | 1 |
| Contact Gender | Female |
| Connector Gender | Female |
| Better World Claim | Renewable Energy Solution |
Key Features
- Supports a continuous current rating of 200A for heavy-duty power transfer.
- Operates reliably at a maximum voltage of 1500V for high-voltage EV systems.
- Features a panel mount with flange design for secure installation.
- Constructed with thermoplastic housing and copper alloy contacts for durability.
- Rated IP67 for dust and water ingress protection in harsh environments.
- Includes a high voltage interlock loop (HVIL) for increased electrical safety.
- Compact dimensions with 31mm width and height, and 71.5mm depth optimize space usage.
- Operates safely across a temperature range of -40°C to 125°C.
Product Description
Amphenol Industrial SLPIRBBPSO0EH is a high-performance EV connector specifically designed as a RADSOK receptacle with HVIL female configuration. This connector supports electric vehicle power systems requiring a continuous 200A current and operating voltages up to 1500V, making it suitable for modern high-voltage automotive applications.
The connector features a robust thermoplastic housing coupled with copper alloy contacts, ensuring excellent electrical conductivity and mechanical durability. Its panel mount flange design facilitates secure and stable mounting, contributing to system reliability in demanding industrial and automotive environments.
Designed to withstand challenging conditions, the connector maintains operation integrity between temperatures of -40°C and 125°C and is rated at IP67 for protection against dust ingress and water immersion. This makes it ideal for electric vehicles exposed to severe environmental factors.
Equipped with a high voltage interlock loop (HVIL), it enhances safety by preventing accidental disconnects during live operation. The orange color and compliance with TUV, UL, and RoHS standards emphasize its suitability for sustainable and renewable energy-focused solutions.
Supports continuous 200A current rating with 1500V operating voltage. Panel mount with flange design for secure fixture. Thermoplastic housing and copper alloy contacts for reliability. IP67 rating ensures dust and water resistance.
HVIL feature enhances electrical safety in EV applications. Wide operating temperature range of -40°C to 125°C. Dimensions: Width 31mm, Height 31mm, Depth 71.5mm for compact installation. Compliant with TUV, UL certifications and RoHS environmental standards.
Orange color for easy identification and renewable energy compatibility.
This Amphenol Industrial EV Connector is well-suited for industrial, automotive, electric vehicle manufacturing, and high-performance power distribution applications. Its design ensures durability, safety, and compliance with international standards, enabling confident usage in electric vehicle systems.
Explore more connectors and electrical components in our Electronics & Electricals category for comprehensive power connectivity solutions.
