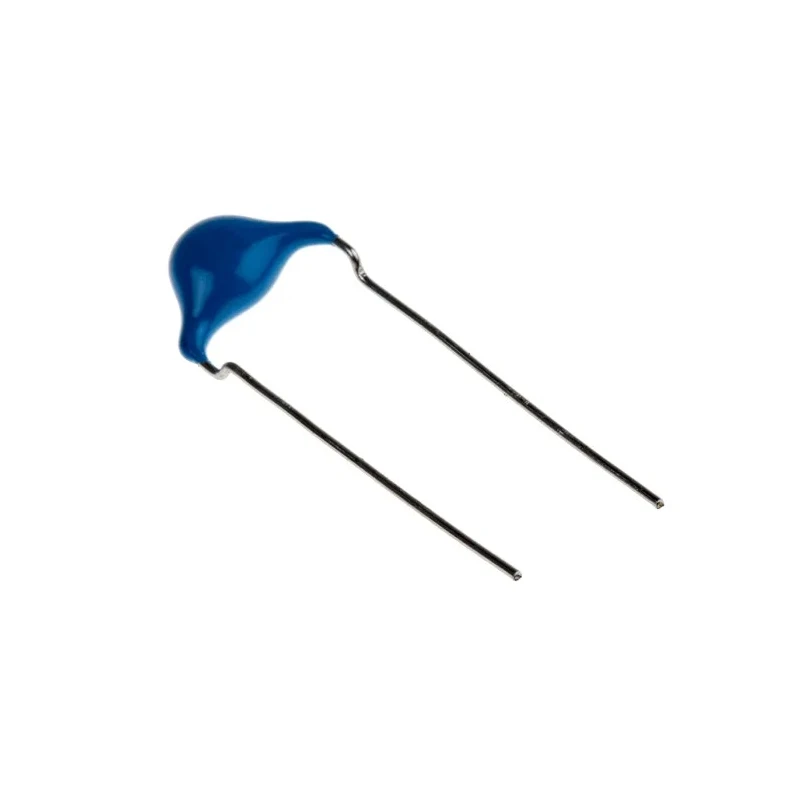

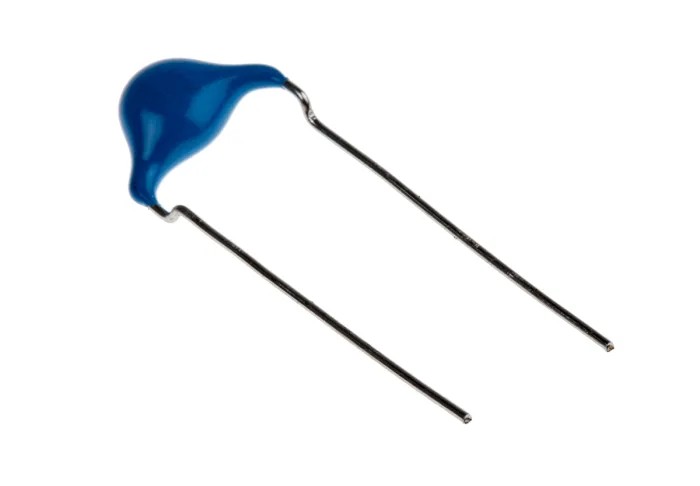

Murata Single Layer Ceramic Capacitor 10 pF 1.5 kV dc 500V ac ±10% SL (JIS) Dielectric Through Hole Axial DE11XRA100KA4BQ01F
Specifications
| Country of Origin | Thailand |
|---|---|
| Voltage | 1.5, 500kV dc |
| Diameter | 8mm |
| Brand | Murata |
| Model | DE11XRA100KA4BQ01F |
| Packaging | Bulk |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | DE1 |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 10pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Axial |
| Dissipation Factor | 2.5% |
| Standards/Approvals | REACH, RoHS |
| Pin Count | 2 |
| Dielectric | SL (JIS) |
Key Features
- This capacitor offers a capacitance of 10 pF with a voltage rating of 1.5 kV dc and 500 V ac.
- Manufactured with SL (JIS) single layer ceramic dielectric material for stability and reliability.
- Features a through hole mount type with axial terminal design suitable for PCB assembly.
- Operates within temperature range of -40°C to 125°C, ensuring performance in various environments.
- The capacitor has 2 pins and dimensions of 8 mm diameter and 5 mm width.
- It meets industry standards including REACH and RoHS compliances for hazardous substances.
- The dissipation factor is rated at 2.5%, indicating low energy loss during operation.
Product Description
Murata DE11XRA100KA4BQ01F single layer ceramic capacitor is a high-performance passive component designed to provide reliable capacitance of 10 pF at a voltage rating of 1.5 kV dc and 500 V ac. It utilizes the SL (JIS) ceramic dielectric technology to ensure stability and durability under demanding electrical conditions.
This capacitor is engineered for through hole axial mounting, offering ease of installation in electronic circuits requiring robust, high-voltage capacitors. Its terminal design is axial, facilitating secure soldering and mechanical strength on printed circuit boards.
With a maximum operating temperature of 125°C and a minimum temperature of -40°C, this capacitor can function efficiently across a broad temperature range typical in industrial, communications, and consumer electronics applications. The component has 2 pins, with a physical diameter of 8 mm and a width of 5 mm, making it suitable for tight circuit layouts while maintaining reliability.
Compliance with REACH and RoHS standards confirms that the capacitor meets essential regulations for hazardous substances, making it environmentally safe and compatible with global manufacturing requirements. The dissipation factor of 2.5% reveals its efficiency in reducing energy loss, supporting long-term operation with minimal thermal degradation.
Capacitance of 10 pF at 1.5 kV dc and 500 V ac ratings. SL (JIS) dielectric for enhanced performance and stability. Through hole axial mounting style for secure PCB integration. Wide operating temperature range from -40°C to 125°C.
Pin count of 2 with axial terminal type. Compliant with REACH and RoHS standards. Low dissipation factor of 2.5% ensuring energy efficiency.
This capacitor is ideally suited for electronic, automotive, industrial, and communication equipment requiring dependable Single Layer Ceramic Capacitors with high voltage capacity. It supports applications involving pulse circuits, high-frequency circuits, and snubbers, among others.
Explore more high-quality capacitors and electronic components to meet your project requirements in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 10 pF with a voltage rating of 1.5 kV dc and 500 V ac.
It operates efficiently within a temperature range of -40°C to 125°C.
This capacitor is designed for through hole mounting with an axial terminal type.
The capacitor has a diameter of 8 mm and a width of 5 mm.
The dissipation factor is rated at 2.5%, indicating low energy loss during operation.
It meets REACH and RoHS standards, confirming compliance with regulations for hazardous substances.
This model features 2 pins for connection.
It utilizes SL (JIS) ceramic dielectric material for stability and reliability.
It is suitable for use in electronic, automotive, industrial, and communication equipment, particularly in pulse circuits and high-frequency circuits.
The country of origin for this capacitor is Thailand.
The tolerance rating for this model is ±10%.
This capacitor belongs to the DE1 series.
