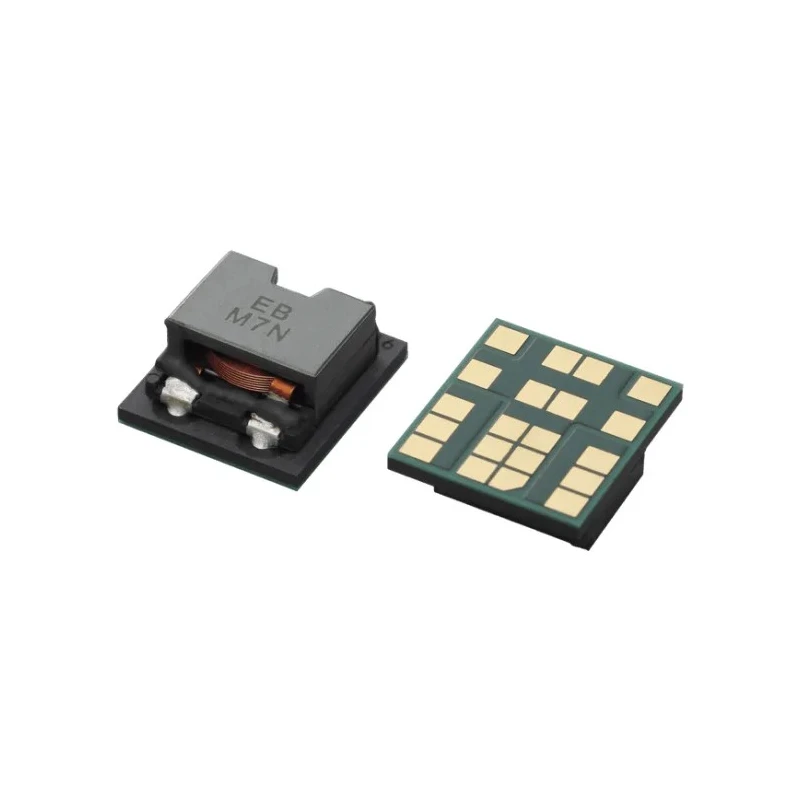

Murata Non-Isolated DC-DC Converter 25V Output, 6 A, 42V DC Input, 13.5V Minimum Input, 150 W Power, DIP MYSGK02506BRSR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Not Found Non-Isolated DC-DC Converter, 25V |
| Brand | Murata |
| Efficiency | 98% |
| Length | 14.7mm |
| Model | MYSGK02506BRSR |
| Depth | 7.5mm |
| Gross Weight | 3.7g |
| Width | 16.3mm |
| Series | Not Found |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2014kH |
| Number of outputs | 5 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Output Power | 150W |
| Maximum Input Voltage | 42V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 13.5V |
| Number of Pins | 20 |
| Output Voltage 1 | 25V dc |
| Output Current 1 | 6A |
Key Features
- High output power of 150 W suitable for embedded applications.
- Small form factor measuring 14.7 x 16.3 x 7.5 mm.
- High efficiency of 98% reduces energy losses.
- Features programmable UVLO and on/off control for protection and flexibility.
- Includes short circuit protection ensuring operational safety.
- Wide operating temperature range from -40°C to 100°C for harsh environments.
- Designed as a fixed frequency synchronous buck converter for stable performance.
- Five outputs with 20 pins available for integration.
Product Description

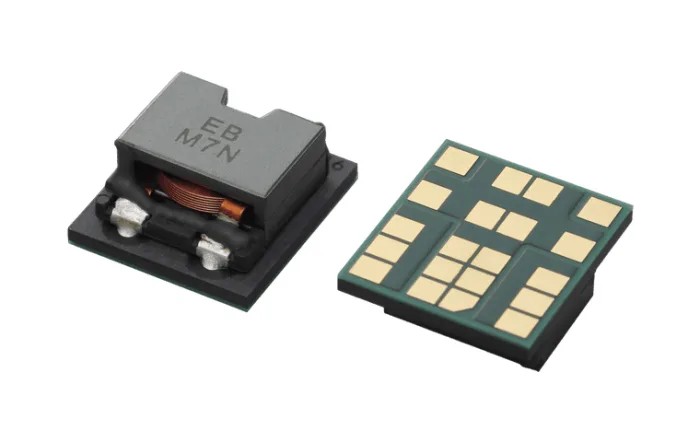

Murata MYSGK02506BRSR is a miniature solid block type non-isolated DC-DC power converter designed for embedded electronic applications requiring efficient power conversion within a compact footprint.
This converter operates with an input voltage range of 13.5 to 42 V DC and provides a settable output voltage from 5 to 25 V DC delivering up to 6 A output current with maximum output power of 150 W. Its highly efficient design achieves 98% efficiency through a fixed frequency synchronous buck converter switching topology.
The package type is DIP with dimensions 14.7 mm length, 16.3 mm width, and 7.5 mm depth, weighing only 3.7 grams, making it suitable for space-constrained industrial and commercial circuit boards.
Key protective features include programmable under voltage lockout (UVLO), output short circuit protection, and on/off control functionality, enhancing reliability and user control during operation.
With operating temperature specifications ranging from -40°C to 100°C, this converter meets RoHS standards and is ideal for industrial, laboratory, manufacturing, and HVAC power management applications requiring reliable DC power conversion.
High output power of 150 W suitable for embedded applications. Small form factor measuring 14.7 x 16.3 x 7.5 mm. High efficiency of 98% reduces energy losses. Features programmable UVLO and on/off control for protection and flexibility.
Includes short circuit protection ensuring operational safety. Wide operating temperature range from -40°C to 100°C for harsh environments. Designed as a fixed frequency synchronous buck converter for stable performance.
Five outputs with 20 pins available for integration.
This product is fully compliant with industrial RoHS standards and is distributed in new condition. Explore comprehensive DC-DC Converters and voltage conversion solutions in the Electronics & Electricals category at EnvMart for your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 150 W.
It operates within an input voltage range of 13.5 to 42 V DC.
This converter provides an output voltage of 25 V DC with a maximum output current of 6 A.
The dimensions of this unit are 14.7 mm in length, 16.3 mm in width, and 7.5 mm in depth.
It has a high efficiency rating of 98%.
The operating temperature range is from -40°C to 100°C.
This converter features five outputs.
It comes in a DIP package type.
It includes programmable under voltage lockout (UVLO), output short circuit protection, and on/off control functionality.
The weight of this unit is 3.7 grams.
Yes, it meets RoHS standards.
The ripple and noise specification is 50 mV peak-to-peak.
