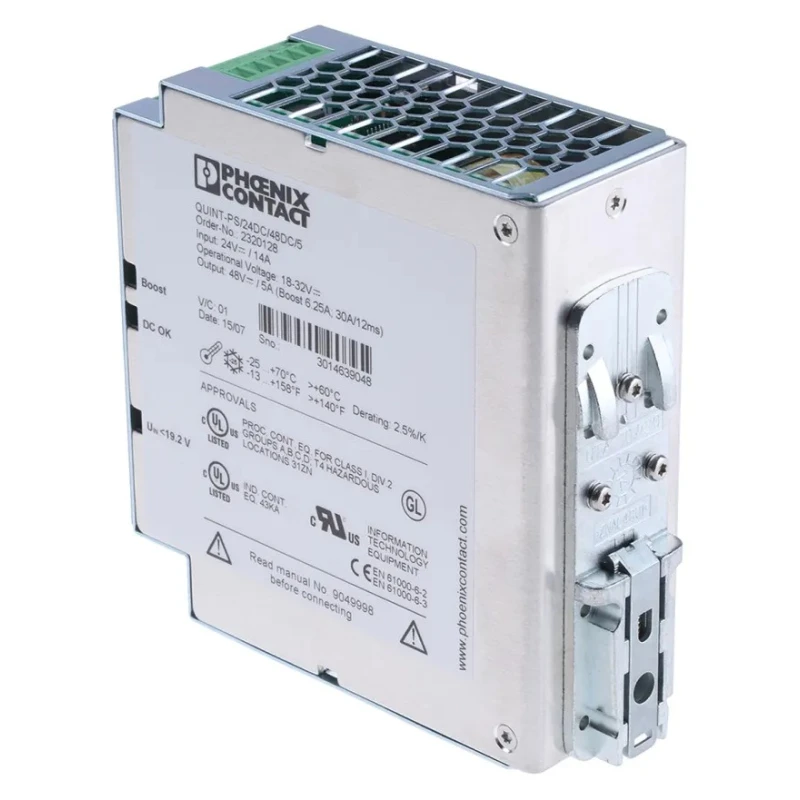

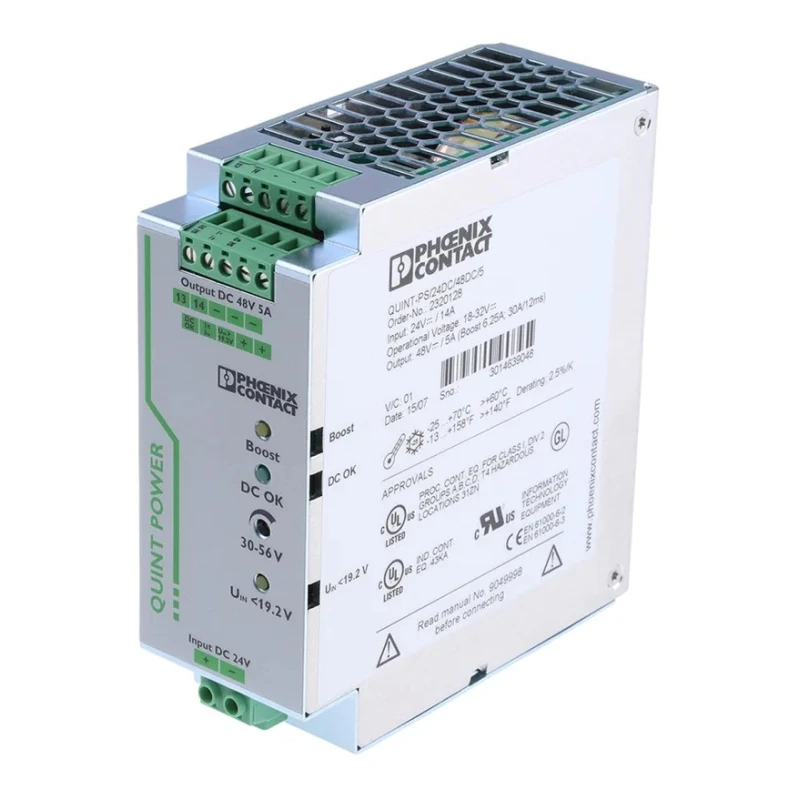

Phoenix Contact QUINT-PS/24DC/48DC/5 DC/DC Converter 48V DC Output 5A 24-32V DC Input DIN Rail Mount 240W 70°C 2320128

Phoenix Contact model 2320128 is a high-performance QUINT-PS/24DC/48DC/5 DC/DC converter delivering 48V DC output voltage at a current of 5A, with a power capacity of 240W. It operates from a wide input voltage range of 24V to 32V DC. Designed for mounting on standard DIN rails, it is optimized for industrial applications requiring reliable power supply conversions.

This DC/DC converter uses primary switched technology and Selective Fuse Breaking (SFB) technology, enabling fast tripping of circuit breakers to protect systems with high selectivity and reducing downtime. It offers galvanic isolation aiding in the creation of independent supply systems by electrical isolation. The device also supports output voltage adjustment within the range of 30 to 56V.

The unit features Power Boost technology allowing reliable startup of difficult loads and incorporates preventive function monitoring that signals critical operational errors before failure occurs. Ripple and noise are tightly controlled at 20mV Pk-Pk, ensuring stable output quality. Its efficiency is high at 92.5%, supporting energy-efficient industrial operations.

Compact physical dimensions (130mm length, 48mm width, and 125mm depth) and a moderate weight of 900g make it suitable for constrained spaces. Operating temperature is rated up to 70°C. Safety standards compliance includes cUL, EAC, UL, and cULus certifications. This product is manufactured in China.

Common industrial applications include machine building, automotive sectors, material handling systems, building automation, and other use cases where stable DC voltage conversion and isolation are required. Its robust design ensures the creation of reliable and independent power supply systems in demanding environments.

Package and install this Phoenix Contact DC/DC converter for enhanced system protection and reliable power conversion. Explore other power supply solutions and related industrial electronics within EnvMart for all your automation and control gear needs.

Supports input voltage range from 24V to 32V DC for versatile application. Features galvanic isolation and reverse polarity protection for system safety. High efficiency of 92.5% to minimize energy loss during operation.

Includes preventive function monitoring to detect potential faults early. Compact dimensions with 130mm length, 48mm width, and 125mm depth suitable for DIN Rail installation. Ripple and noise are limited to 20mV Pk-Pk for stable power output.

Isolation voltage of 1.5kV DC ensures enhanced electrical isolation. Discover a comprehensive range of DC-DC Converters and power supply products at EnvMart to meet diverse industrial requirements.
