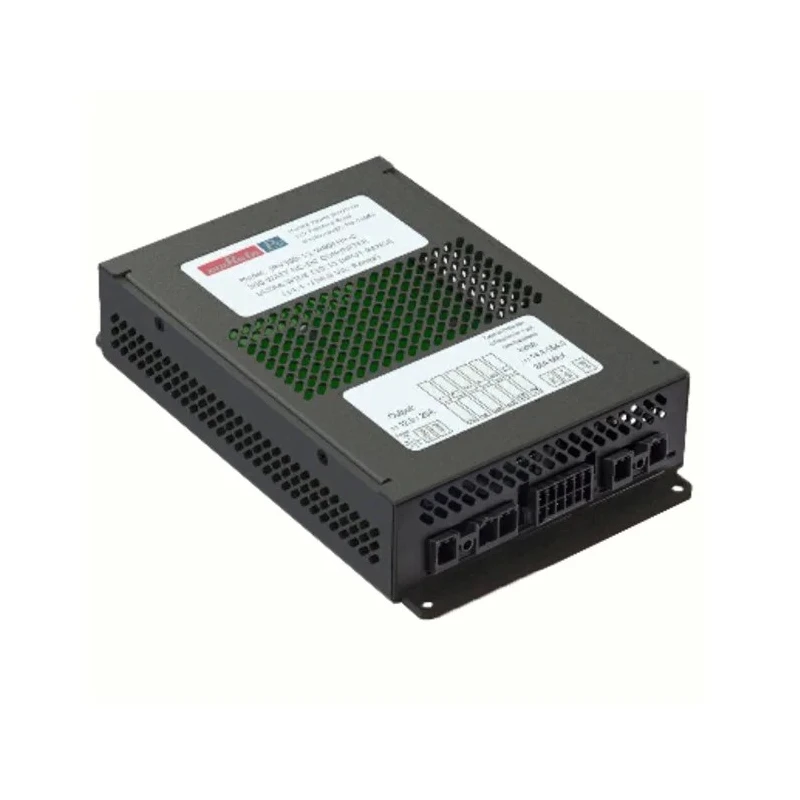

Murata Isolated DC-DC Converter 24V DC Output, 160V DC Max Input, 12.5A Output Current, 300W Power, Chassis Mount IRV300
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata IRV300 Isolated DC-DC Converter, 24V dc/, 1 |
| Brand | Murata |
| Efficiency | 92% |
| Length | 184.6mm |
| Model | IRV300 |
| Depth | 39.7mm |
| Gross Weight | 900g |
| Width | 116mm |
| Mount Type | Chassis |
| Series | IRV300 |
| Maximum Operating Temperature | 70°C |
| Package Type | Chassis Mount |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Ripple and Noise | 120mV Pk-Pk |
| Maximum Output Power | 300W |
| Maximum Input Voltage | 160V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 16.8V |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 12.5A |
| Isolation Voltage | 4.25kV dc |
Key Features
- Supports a wide input voltage range from 16.8V to 160V DC.
- Provides stable 12.5A output current suitable for high power applications.
- Features high efficiency up to 92% for optimal energy conversion.
- Includes robust isolation voltage of 4.25kV DC ensuring electrical safety.
- Operates reliably from -40°C to 70°C ambient temperature range.
- Chassis mount package ensures secure installation in systems.
- Output voltage adjustable up to +15% for flexible voltage tuning.
- Meets RoHS compliance and railway standards EN 50155 and EN 50121-3-2.
Product Description
Murata IRV300 is an isolated DC-DC converter designed for industrial and railway applications requiring reliable power conversion. This chassis mount unit provides a nominal 24V DC output with a maximum output power of 300W, supporting input voltages from 16.8V up to 160V DC. It ensures efficient energy conversion with a typical efficiency of 92%, minimizing power loss and heat generation.
The converter features an isolation voltage of 4.25kV DC, which provides electrical safety and noise immunity. Suitable for demanding environments, the IRV300 operates within a wide temperature range from -40°C to 70°C. Its adjustable output voltage range up to +15% offers flexibility for various system requirements.
The design includes low ripple and noise of 120mV peak-to-peak, supporting sensitive electronic loads. Equipped with comprehensive self-protection mechanisms including over-temperature shutdown and remote on/off control, it enhances system reliability and safety. The green LED power indicator helps in quick status verification.
This product complies with the European RoHS directive and is certified to meet railway standards EN 50155 and EN 50121-3-2, making it ideal for transportation systems and industrial automation. Its chassis mount package offers robust mechanical installation options.
Wide input voltage range from 16.8V to 160V DC supports various battery voltages. Chassis mount form factor enables stable system integration. High output current of 12.5A for high power demand. Over-temperature and short circuit protection safeguards the converter.
Adjustable output voltage improves compatibility with different loads. High isolation voltage enhances safety in industrial environments. Compliance with railway standards ensures suitability for transport applications. Compact dimensions and lightweight design (900g) facilitate easy installation.
This Murata IRV300 isolated DC-DC Converter is a high-performance solution for industrial power systems, particularly within the railway sector, offering reliable and efficient DC voltage conversion in a chassis-mount design. Explore more electronics and power supply solutions at EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of the Murata IRV300 is 300W.
It supports a wide input voltage range from 16.8V to 160V DC.
The output current rating for the IRV300 is 12.5A.
This model achieves a high efficiency of up to 92%.
The isolation voltage of this converter is 4.25kV DC, ensuring electrical safety.
The dimensions of this chassis mount unit are 184.6mm in length, 116mm in width, and 39.7mm in depth.
It operates reliably within a temperature range of -40°C to 70°C.
Yes, it includes self-protection mechanisms such as over-temperature shutdown and remote on/off control.
The ripple and noise for this model is specified at 120mV peak-to-peak.
Yes, the output voltage is adjustable up to +15% for flexible voltage tuning.
The IRV300 complies with RoHS and railway standards EN 50155 and EN 50121-3-2.
It features a chassis mount design for secure installation in systems.
