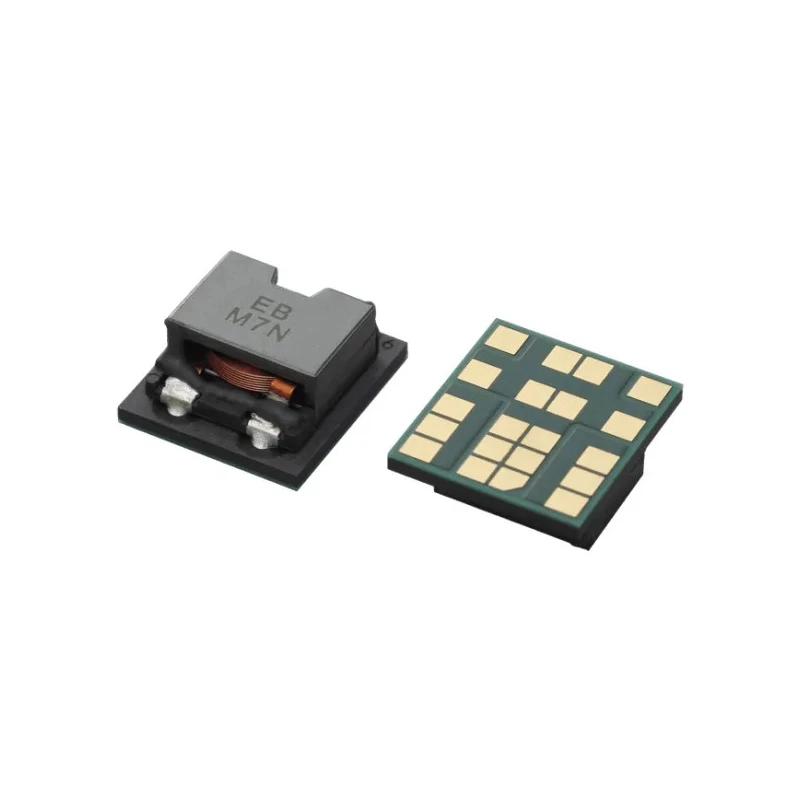

Murata Non-Isolated DC-DC Converter 25V dc Output 6 A 42V dc Input 13.5V Input 150W 100°C Max Temp MYSGK02506BRSR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Not Found Non-Isolated DC-DC Converter, 25V |
| Brand | Murata |
| Efficiency | 98% |
| Length | 14.7mm |
| Model | MYSGK02506BRSR |
| Depth | 7.5mm |
| Gross Weight | 3.7g |
| Width | 16.3mm |
| Series | Not Found |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2014kH |
| Number of outputs | 5 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Output Power | 150W |
| Maximum Input Voltage | 42V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 13.5V |
| Number of Pins | 20 |
| Output Voltage 1 | 25V dc |
| Output Current 1 | 6A |
Key Features
- The converter supports an input voltage range of 13.5 to 42 V DC.
- Offers ultra-small surface mount package with dimensions 14.7 x 16.3 x 7.5 mm.
- Features high efficiency of 98% and excellent thermal derating performance.
- Includes programmable under voltage lock out (UVLO) and short circuit protection for reliable operation.
- Supports on/off control for flexible power management.
- Designed for use in embedded applications requiring stable DC power conversion.
- Operates across a temperature range from -40°C to 100°C.
- DIP package with 20 pins providing multiple outputs (5 outputs).
Product Description
Murata MYSGK02506BRSR is a miniature solid block type non-isolated DC-DC power converter designed for embedded and industrial applications requiring stable and efficient power conversion. This converter operates with input voltages ranging from 13.5V to 42V DC and can deliver up to 6A output current at a settable output voltage between 5 to 25V DC, with a maximum power capacity of 150W. The compact form factor measures only 14.7 mm in length, 16.3 mm in width, and 7.5 mm in depth, making it suitable for space-constrained integration.
Using a fixed frequency synchronous buck converter switching topology, the module achieves an outstanding efficiency rating of 98%. The device provides reliable protection features including output short circuit protection and programmable under voltage lockout (UVLO), ensuring robust operation in demanding environments. On/off control capability adds to the flexibility of power management in embedded system designs.
The converter is housed in a DIP package with 20 pins and supports 5 outputs. It operates reliably within a wide temperature range of -40°C to 100°C, offering excellent thermal derating performance to maintain efficiency and longevity.
This high-performance non-isolated DC-DC Converter is suitable for various industrial, laboratory, construction, and embedded electronics applications requiring efficient DC voltage conversion and power regulation.
The converter supports an input voltage range of 13.5 to 42 V DC. Ultra-small surface mount DIP package with 20 pins. Maximum output power of 150W and output current up to 6A. High efficiency at 98% with reliable thermal performance.
Programmable UVLO and short circuit protection enhance safety. On/off control capability for flexible power management. Operating temperature range from -40°C to 100°C. Compact dimensions of 14.7 x 16.3 x 7.5 mm. Multiple applications in industrial and embedded system environments.
Explore more power conversion solutions and related products to optimize your electronic designs and systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 150W.
It supports an input voltage range of 13.5V to 42V DC.
This converter has an efficiency rating of 98%.
The dimensions of this unit are 14.7 mm in length, 16.3 mm in width, and 7.5 mm in depth.
It provides a total of 5 outputs.
The maximum operating temperature for this converter is 100°C.
The minimum operating temperature is -40°C.
Yes, it includes programmable under voltage lockout (UVLO) and short circuit protection.
This model can deliver an output current of up to 6A.
It comes in a DIP package with 20 pins.
The ripple and noise specification is 50mV peak-to-peak.
It is suitable for embedded and industrial applications requiring stable and efficient power conversion.
