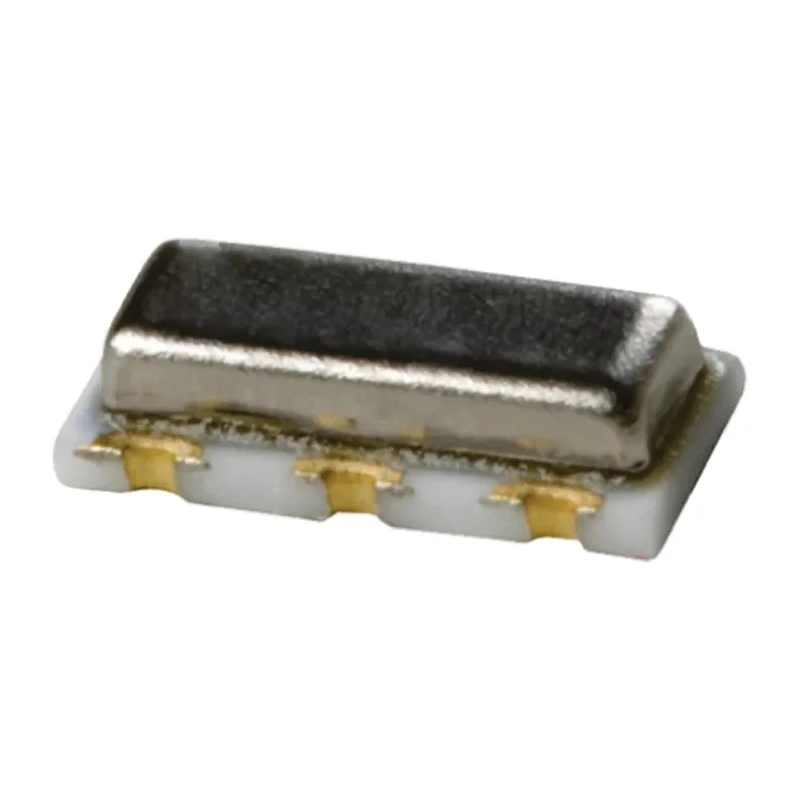

Murata Ceramic Resonator 7.37 MHz Shear Mode 39 pF Load Capacitance Surface Mount 3-Pin 1.15 mm Height 2 mm CSTCR7M37G55-R0

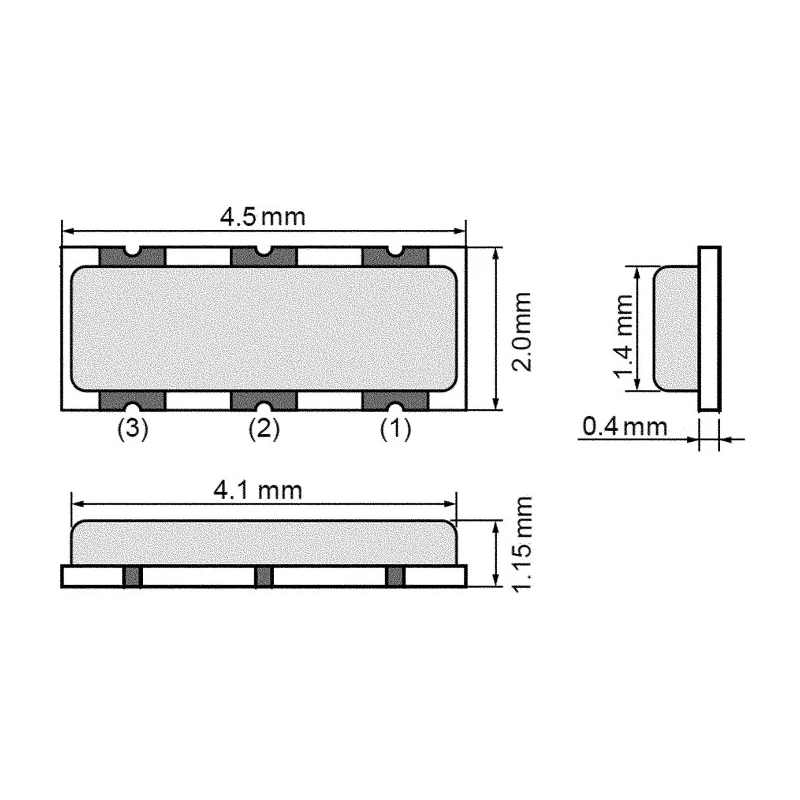

Murata CSTCR7M37G55-R0 ceramic resonator is a high-stability MHz band component designed for precise frequency generation. Operating at 7.37 MHz using a shear mode of oscillation, it incorporates built-in load capacitance of 39 pF, simplifying circuit design by removing the need for external capacitors. This 3-pin surface mount device has a compact form factor measuring 1.15 mm in height, 2 mm in width, and 4.5 mm in length, suitable for space-constrained electronic assemblies.

Designed to operate reliably within a temperature range of -20°C to 80°C, this ceramic resonator features a low resonance resistance of 50 Ω, enhancing energy efficiency and signal quality. It is part of Murata's CSTCR series under the CERALOCK® range, constructed using high-stability piezoelectric ceramics known for their durability and stable frequency characteristics over time.

The resonator is ideally suited for applications requiring replacement or supplement to crystal oscillators, including USB controller ICs, audio equipment, musical instruments, and other consumer electronics. Its surface mount technology allows for efficient high-density PCB mounting aiding in compact device designs.

Precisely engineered 7.37 MHz resonance frequency with low frequency ageing and stability. Built-in load capacitance of 39 pF eliminates external component requirements. Compact surface mount package with 3 pins enhances design flexibility.

Wide temperature range operation suitable for varied industrial environments. Low resonance resistance maintains effective power consumption. Compliant with international environmental standards REACH and RoHS.

Manufactured in Japan, the CSTCR7M37G55-R0 ceramic resonator from Murata provides a reliable, efficient, and compact solution for frequency control in various industrial, commercial, and electronic applications. For users seeking quality ceramic resonators with high frequency accuracy and durability, this product is an excellent choice. Explore more in the Ceramic Resonator category at EnvMart to find compatible components and accessories.
