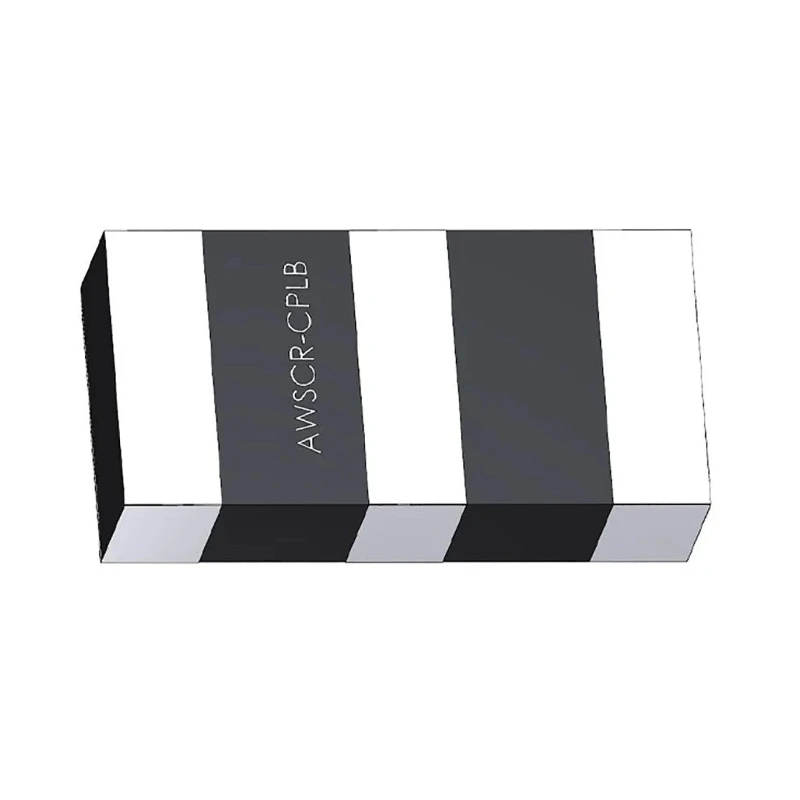

Abracon Ceramic Resonator 4 MHz 30 pF Surface Mount 3-Pin Tape & Reel AWSCR-4.00CPLB-C30-T4
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 1.5mm |
| Length | 6mm |
| Model | AWSCR-4.00CPLB-C30-T4 |
| Packaging | Tape & Reel |
| Width | 3mm |
| Mount Type | Surface |
| Series | AWSCR-CPLB |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Package Type | Tape & Reel |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Load Capacitance | 30pF |
| Resonance Frequency | 4MHz |
| Resonance Resistance | 30Ω |
Key Features
- It features a surface mount package with 3 pins designed for tape and reel packaging.
- The resonator offers a frequency tolerance of ±0.5% ensuring stable operation.
- The device supports operating temperatures from -40°C to 125°C for extended industrial use.
- Compact dimensions of 6 mm length, 3 mm width, and 1.5 mm height enable integration in small circuits.
- The termination type is solder suitable for standard PCB assembly processes.
- It adheres to RoHS compliance standards, ensuring environmental safety.
Product Description
The Abracon AWSCR-4.00CPLB-C30-T4 Ceramic Resonator is engineered for precision frequency control in electronic circuits, offering a resonance frequency of 4 MHz and a load capacitance of 30 pF. Provided in a surface mount form factor with a 3-pin configuration, this device comes packaged on tape and reel to facilitate automated manufacturing.
With a frequency tolerance of ±0.5% and frequency stability within ±0.4%, this resonator ensures reliable signal timing. Its frequency ageing of ±0.1% guarantees consistent performance over prolonged periods, making it suitable for critical industrial, metering, remote control, and microprocessor applications.
The product operates in a temperature range from -40°C to 125°C, accommodating demanding environmental conditions. Its compact physical dimensions - 6 mm length, 3 mm width, and 1.5 mm height - support integration into compact electronic assemblies. The solder termination enables robust PCB mounting.
Abracon's AWSCR-CPLB series is compliant with RoHS standards, aligning with environmental and manufacturing regulations. This ceramic resonator is manufactured in China. Surface mount design ideal for automated assembly.
Low resonance resistance of 30 Ohms reduces power loss. Wide operating temperature range suits industrial environments. Industry standard footprint facilitates replacement and design consistency. Suitable for use in metering systems, industrial control, and electronic appliances.
Thanks to its high frequency stability and packaging, the AWSCR-4.00CPLB-C30-T4 supports applications in industrial, commercial, and manufacturing sectors that demand precise timing components.
Explore EnvMart for a broad selection of high-quality electronic components including Ceramic Resonators by Abracon and other leading brands to meet all your electronics design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resonance frequency of the Abracon AWSCR-4.00CPLB-C30-T4 ceramic resonator is 4 MHz.
This model has a load capacitance of 30 pF.
The dimensions of this ceramic resonator are 6 mm in length, 3 mm in width, and 1.5 mm in height.
It operates within a temperature range of -40°C to 125°C.
The resonator features a solder termination type suitable for standard PCB assembly processes.
The AWSCR-4.00CPLB-C30-T4 is packaged on tape and reel, which facilitates automated manufacturing.
It has a frequency tolerance of ±0.5%.
The resonance resistance is 30 Ohms, which helps reduce power loss.
Yes, this ceramic resonator is compliant with RoHS standards, ensuring environmental safety.
It is suitable for applications in metering systems, industrial control, and electronic appliances.
This model has a pin count of 3.
The Abracon AWSCR-4.00CPLB-C30-T4 is manufactured in China.
