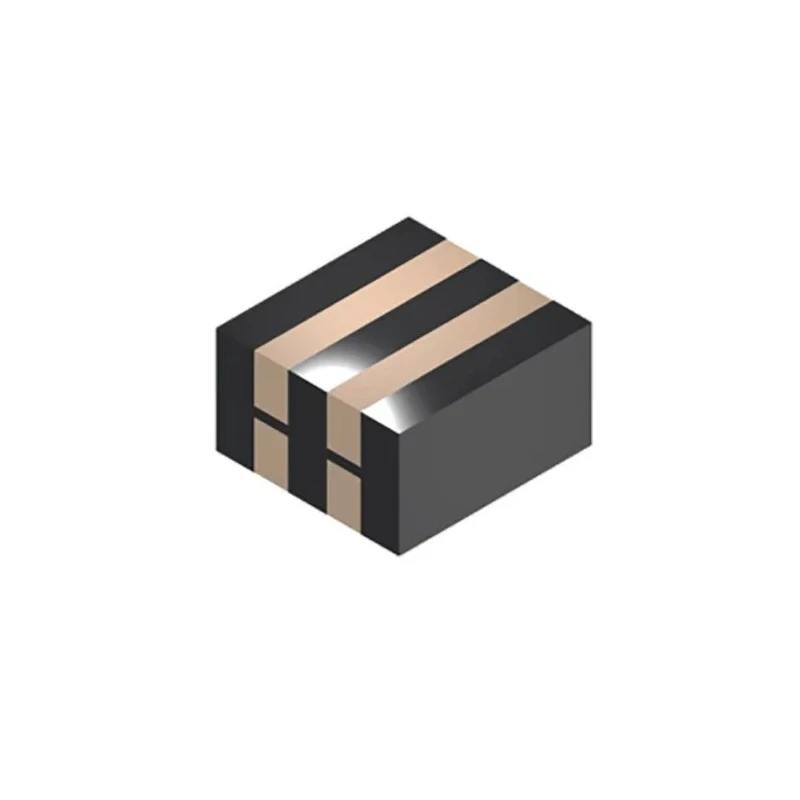

MMD Ceramic Resonator 10 MHz 15 pF 3-Pin SMT Package 1.7 mm Height 4.1 mm Width 4.7 mm Length MZTTCS10.00MT

The MMD MZTTCS10.00MT Ceramic Resonator is engineered to deliver a precise 10 MHz resonance frequency with a 15 pF load capacitance, supporting stable oscillation in various electronic circuits. Encased in a small SMT package with a 3-pin configuration, it measures 4.7 mm in length, 4.1 mm in width, and 1.7 mm in height, suitable for compact PCB layouts.

This ceramic resonator is designed for applications requiring reliable frequency control such as timing circuits, microcontroller oscillators, and other frequency-sensitive electronic devices in industrial and commercial settings. It operates across a temperature range from -20°C to 80°C, ensuring durability under typical environmental conditions.

The product is supplied in tape and reel packaging, facilitating efficient automated placement during PCB manufacturing. Compliance with RoHS directives guarantees that the resonator meets environmental safety standards by limiting hazardous substances.

Its compact size and surface mount compatibility make it ideal for use in modern, miniaturized electronic assemblies across industrial, telecommunications, and instrumentation applications.

Stable resonance frequency of 10 MHz for precise timing functions. Load capacitance of 15 pF tailored for balanced circuit performance. Compact SMT package aiding space-efficient circuit design. Wide operating temperature range for versatile use cases.
