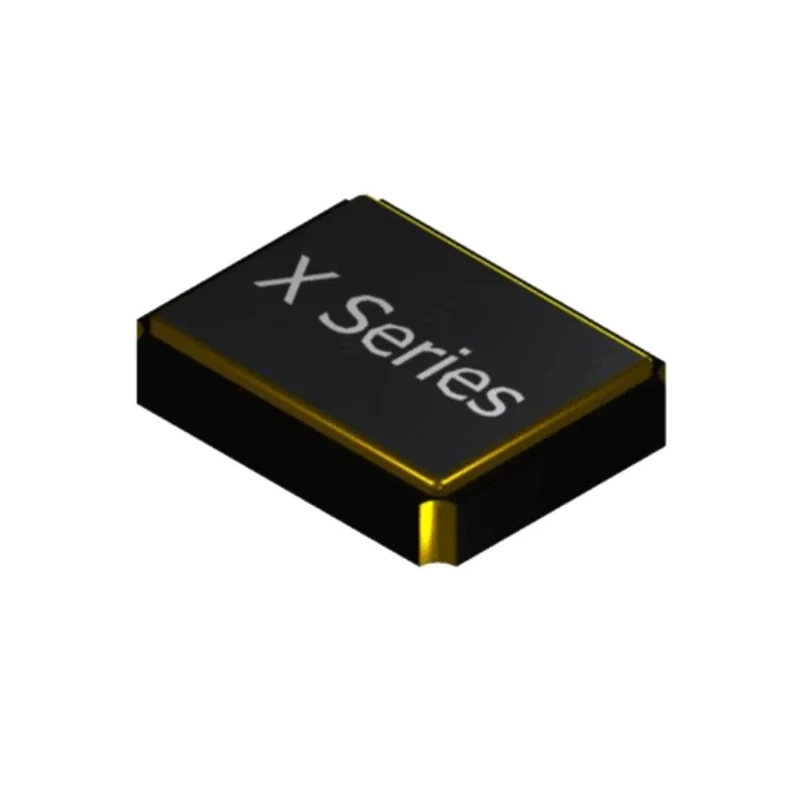

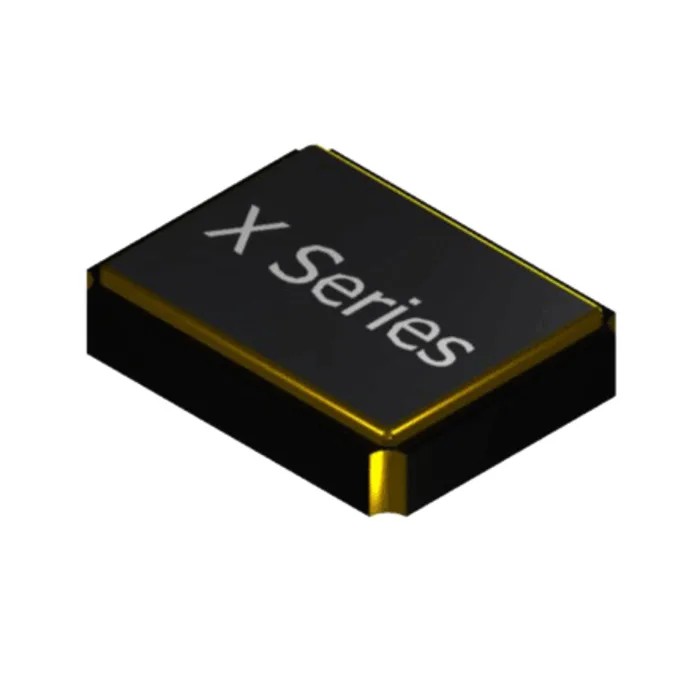

MMD 16 MHz Crystal Unit ±50 ppm Ceramic Package Surface Mount 20pF Load Capacitance X20AB1-16.000MHZ-T

The MMD X20AB1-16.000MHZ-T is a 16 MHz crystal unit designed for precision frequency oscillation in electronic circuits. Encased in a compact ceramic package measuring 2.6 mm by 2.1 mm by 0.55 mm, this surface-mount component delivers consistent performance with a frequency tolerance of ±50 ppm and stability of ±100 ppm, suitable for a variety of industrial and commercial electronic applications.

Its load capacitance is specified at 20 pF, which supports optimal operation in oscillation circuits requiring reliable frequency control. The series resistance of 120 Ω helps maintain signal integrity while operating within a temperature range of -20°C to 70°C, making it robust for varied environmental conditions.

This crystal unit complies with RoHS standards, affirming its manufacture without hazardous substances, and is packaged in tape and reel format facilitating efficient automated PCB assembly processes.

Typical applications include timing circuits, oscillators in communication devices, industrial instrumentation, and other electronic equipment requiring stable frequency sources. Standard frequency: 16 MHz. Package type: Ceramic package.

Mount type: Surface mount. Load capacitance: 20 pF. Frequency tolerance: ±50 ppm. Frequency stability: ±100 ppm. Operating temperature: -20°C to 70°C. Series resistance: 120 Ω. RoHS compliant. Packaging: Tape & Reel.
