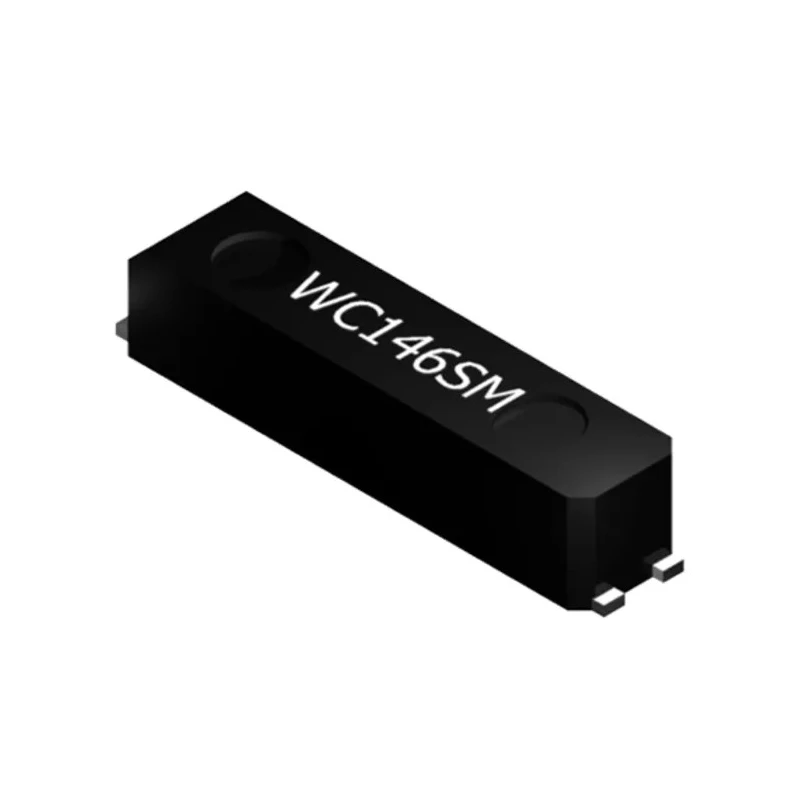

MMD WC146SMF-32.768KHZ-T 32.77kHz Crystal Unit, 20ppm, Tape & Reel, SMD, 12.5pF, 7x1.5x1.4mm
Specifications
| Country of Origin | China |
|---|---|
| Brand | MMD |
| Operating Temperature | -40°C to 85°C |
| Height | 1.4mm |
| Length | 7mm |
| Model | WC146SMF-32.768KHZ-T |
| Mounting Type | Surface Mount |
| Packaging | Tape & Reel |
| Width | 1.5mm |
| Mount Type | Surface |
| Series | WC146SM |
| Maximum Operating Temperature | 85°C |
| Package Type | Tape & Reel |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Standard Frequency | 32.77kHz |
| Load Capacitance | 12.5pF |
| Series Resistance | 65kΩ |
Key Features
- Operates at a standard frequency of 32.77kHz for reliable timing reference.
- Low frequency tolerance of 20ppm ensures precision in oscillation frequency.
- Surface-mountable with ultra-low profile, only 1.4mm high.
- Compact package size with dimensions 7mm x 1.5mm x 1.4mm, suitable for space-limited circuits.
- Supplied on tape & reel, ideal for automated assembly environments.
- RoHS compliant for use in environmentally regulated electronics.
- Wide operating temperature range from -40°C to 85°C for industrial usage.
- Load capacitance rated at 12.5pF to match standard oscillator circuits.
Product Description
The MMD WC146SMF-32.768KHZ-T is a high-precision 32.77kHz surface mount crystal unit, engineered for applications requiring stable and reliable timing such as real-time clocks, microcontroller oscillators, and digital watches.
This crystal features a fundamental operating mode with an exceptionally low frequency tolerance of 20ppm, ensuring minimal deviation from its nominal 32.77kHz specification. Its ultra-low profile, with a height of just 1.4mm, and compact footprint of 7mm by 1.5mm make it ideal for densely populated PCBs where board space is at a premium.
The WC146SMF-32.768KHZ-T is designed for ease of integration with a standard 12.5pF load capacitance, and its series resistance of 65kΩ ensures reliable oscillator start-up and operation across a wide variety of circuits. The component is fully compliant with RoHS directives, suitable for use in environmentally conscious product designs.
32.77kHz crystal frequency, SMD-optimized for clock-timekeeping applications. 20ppm frequency tolerance supports high-accuracy system timing. Ultra-low 1.4mm max height for compatibility with shallow PCB assemblies. 7mm length and 1.5mm width proportions for minimized board footprint.
Tape & reel packaging enables rapid automated assembly processes in production environments. Wide -40°C to +85°C operating temperature, ideal for industrial and consumer electronics. 12.5pF load capacitance and 65kΩ series resistance for precise circuit matching.
Meets RoHS environmental standards.
Applications for the MMD WC146SMF-32.768KHZ-T include timing sources for data logging systems, RTCs in embedded devices, industrial controllers requiring precise clocking, portable battery-powered instruments, and wearables. Its compact design allows for cost-effective integration in high-density layouts, while the frequency stability and wide temperature range support versatility across sectors such as automotive, consumer electronics, industrial automation, and laboratory instrumentation.
