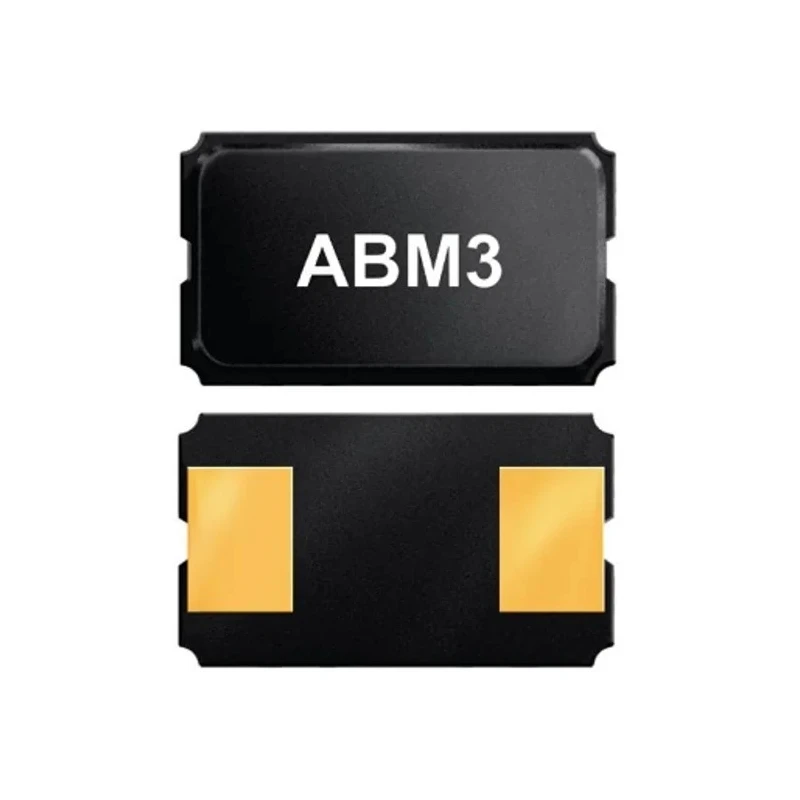

Abracon 27 MHz Surface Mount 2-Pin Crystal Unit ±50 ppm Frequency Tolerance ABM3-27.000MHZ-D2Y-T

Abracon ABM3-27.000MHZ-D2Y-T is a high precision 27 MHz crystal unit designed for surface mount applications with 2 pins, offering ±50 ppm frequency stability and tolerance. Its ceramic package is hermetically glass sealed to ensure moisture resistance and long-term reliability.

This crystal unit is widely used in applications such as cellular telephones, pagers, wireless communication devices, PCMCIA cards, and test equipment, providing stable frequency reference.

Featuring a compact form factor of 5 mm length, 3.2 mm width, and 1.3 mm height, it is compatible with standard PCB layouts. The equivalent series resistance of 30 Ω supports efficient oscillation at the fundamental or 3rd overtone modes.

The crystal operates over a temperature range of -40°C to 85°C, exceeding the minimum and maximum operating temperatures of -10°C and 60°C respectively, ensuring durability in various industrial settings.

It comes with a load capacitance of 18 pF and complies with RoHS directives, packaged in Tape & Reel format to facilitate automated manufacturing assembly. While not meeting automotive standards, this model is suited for industrial, telecommunications, laboratory, and commercial electronics applications.

The Crystal Unit operates at a standard frequency of 27 MHz with ±50 ppm frequency tolerance. It features a surface mount type with a compact 2-pin configuration for ease of installation. Dimensions are 5 mm length, 3.2 mm width, and 1.3 mm height, suitable for PCB applications.

The unit offers an equivalent series resistance (ESR) value of 30 Ω ensuring reliable oscillation performance. Operating temperature range is from -40°C to 85°C, supporting robust industrial environments. Load capacitance is specified at 18 pF, compatible with common oscillator circuits.

The crystal is RoHS compliant and packaged as Tape & Reel for automated assembly processes. It does not conform to automotive standards but is suitable for wireless communication, cellular telephones, and test equipment.
