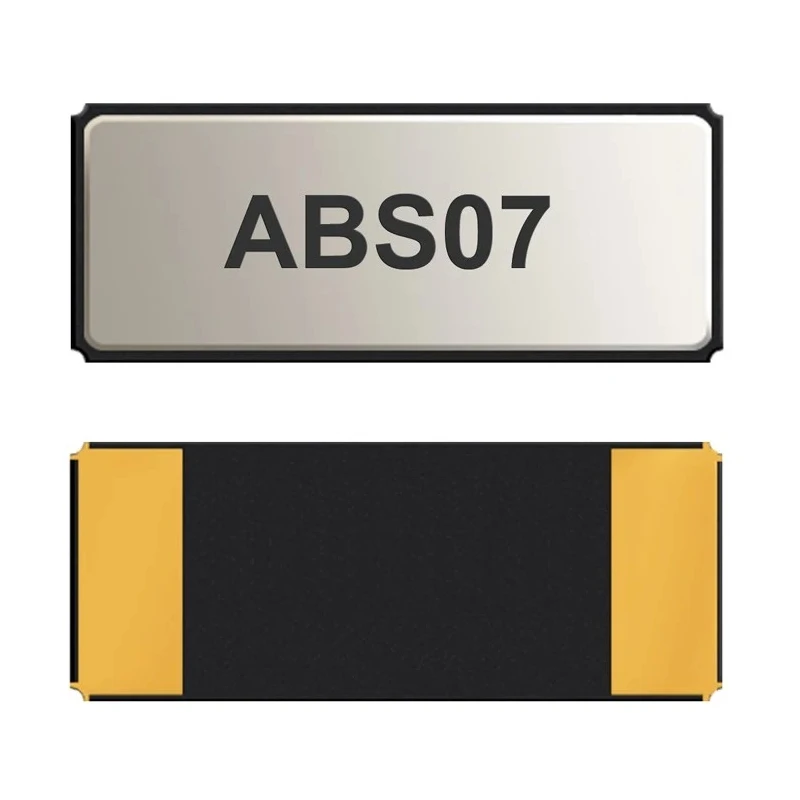

Abracon 32.768 MHz Surface Mount Crystal Unit 9pF Load Capacitance 2-Pin Tape & Reel ABS07-32.768KHZ-9-1-T

Abracon ABS07-32.768KHZ-9-1-T is a high precision surface mount crystal unit designed for timing applications in communications, measuring equipment, and consumer electronic devices.

Operating at a standard frequency of 32.768 MHz with a frequency tolerance of ±20 ppm, this crystal unit is ideal for circuits requiring accurate timekeeping such as RTC modules and wearable electronics.

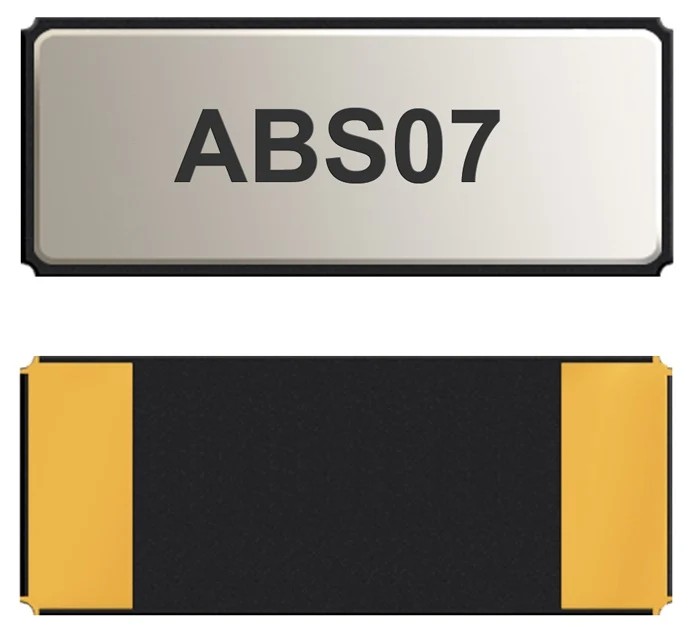

The device features a sealed ceramic package measuring 3.2 mm in length, 1.5 mm in width, and 0.9 mm in height with a 2-pin surface mount design to facilitate automated PCB assembly. The load capacitance is specified at 9 pF and the equivalent series resistance (ESR) is optimized to 70 kΩ for stable oscillator performance.

The operating temperature range spans from -40°C to 85°C, suitable for commercial and some industrial environments while the ceramic package provides excellent environmental resistance and heat tolerance.

This crystal unit complies with RoHS standards and is supplied in tape and reel packaging format for improved production efficiency and automated insertion into machinery. Standard frequency of 32.768 MHz for timing precision.

Surface mount, 2-pin configuration for compact PCB designs. 9 pF load capacitance for oscillator stability. Compact dimensions suitable for high-density circuit boards. Operating temperature from -40°C to 85°C supporting diverse applications.

ESR of 70 kΩ to minimize resonance losses. RoHS compliant and environmentally sealed package. Supplied in tape and reel for manufacturing automation.

This Crystal Unit is widely used in industrial instruments, telecommunications, consumer electronics, and measurement equipment where precise frequency control is critical. It supports automated surface mount assembly processes common in modern PCB manufacturing.
