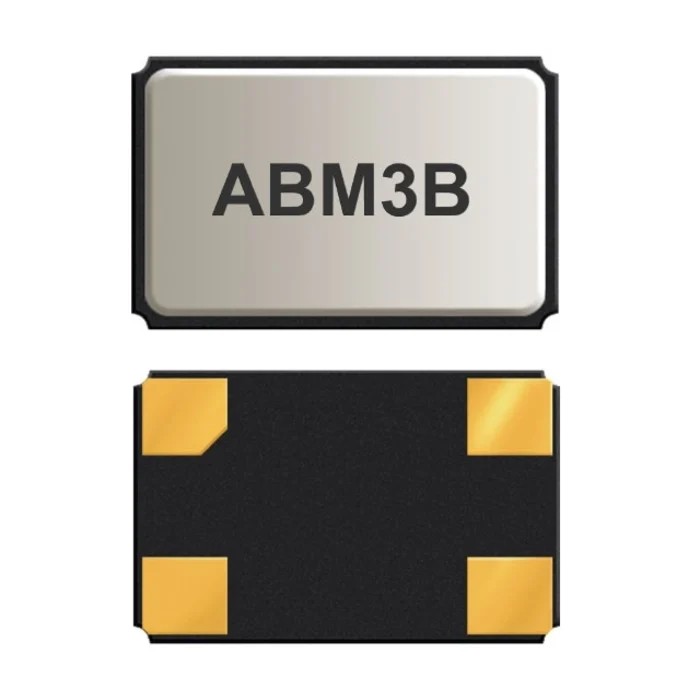

Abracon 13.56 MHz Crystal Unit Surface Mount 4-Pin Tape & Reel 5 mm x 3.2 mm x 1.1 mm ABM3B-13.560MHZ-10-1-U-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 13.56 MHz Crystal Unit Surface Mount 4-Pin Tape & Reel 5 mm x 3.2 mm x 1.1 mm ABM3B-13.560MHZ-10-1-U-T

Name: Abracon 13.56 MHz Crystal Unit Surface Mount 4-Pin Tape & Reel 5 mm x 3.2 mm x 1.1 mm ABM3B-13.560MHZ-10-1-U-T
Brand: Abracon
SKU: 424351
Price: 0.73 USD
Availability: InStock



Category Crystal Unit Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	1.1mm
Length	5mm
Model	ABM3B-13.560MHZ-10-1-U-T
Packaging	Tape & Reel
Width	3.2mm
Mount Type	Surface
Series	ABM3B
Maximum Operating Temperature	60°C
Package Type	Surface Mount
Minimum Operating Temperature	-10°C
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	13.56MHz
Load Capacitance	10pF
Series Resistance	70Ω

Key Features

This crystal unit features a surface mount package type with 4 pins for secure PCB mounting.
The device maintains frequency stability within ±50 ppm over operating temperature range.
Compact dimensions of 5 mm length, 3.2 mm width, and 1.1 mm height enable high density applications.
Capable of operating in temperatures between -10°C and 60°C ensuring wide applicability.
The equivalent series resistance is 70 ohms, supporting fundamental mode operation.
Packaged on tape and reel, ready for automated assembly lines.
Constructed with a ceramic package and metal lid for high precision and reliability.
Suitable for cellular telephones, pagers, communication, test equipment, PCMCIA, and wireless applications.

Product Description

Abracon ABM3B-13.560MHZ-10-1-U-T Crystal Unit Surface Mount operates at a standard frequency of 13.56 MHz with a frequency tolerance of ±50 ppm. This surface mount device comes in a compact ceramic package measuring 5 mm in length, 3.2 mm in width, and 1.1 mm in height. Its 4-pin configuration supports secure and stable PCB mounting, ideal for high-density electronic designs.

The crystal exhibits a load capacitance of 10 pF and an equivalent series resistance (ESR) of 70 ohms, operating in fundamental mode. It is designed to function reliably across a temperature range from -10°C to 60°C, making it suitable for various industrial, commercial, and communication applications.

Packaged in tape and reel format, the ABM3B series crystal unit is compatible with automated manufacturing processes, ensuring efficient assembly. Its ceramic package with a metal lid ensures enhanced precision, stability, and reliability through seam sealing technology.

This crystal unit finds utility primarily in cellular telephones, pagers, communication devices, test equipment, PCMCIA cards, and wireless applications. The robust design and careful construction assure a stable frequency output crucial for sensitive electronic circuits.

This crystal unit features a surface mount package type with 4 pins for secure PCB mounting. The device maintains frequency stability within ±50 ppm over operating temperature range. Compact dimensions of 5 mm length, 3.2 mm width, and 1.1 mm height enable high density applications.

Capable of operating in temperatures between -10°C and 60°C ensuring wide applicability. The equivalent series resistance is 70 ohms, supporting fundamental mode operation. Packaged on tape and reel, ready for automated assembly lines.

Constructed with a ceramic package and metal lid for high precision and reliability. Suitable for cellular telephones, pagers, communication, test equipment, PCMCIA, and wireless applications. Explore more Crystal Units and precision oscillators for your electronics applications on EnvMart.
