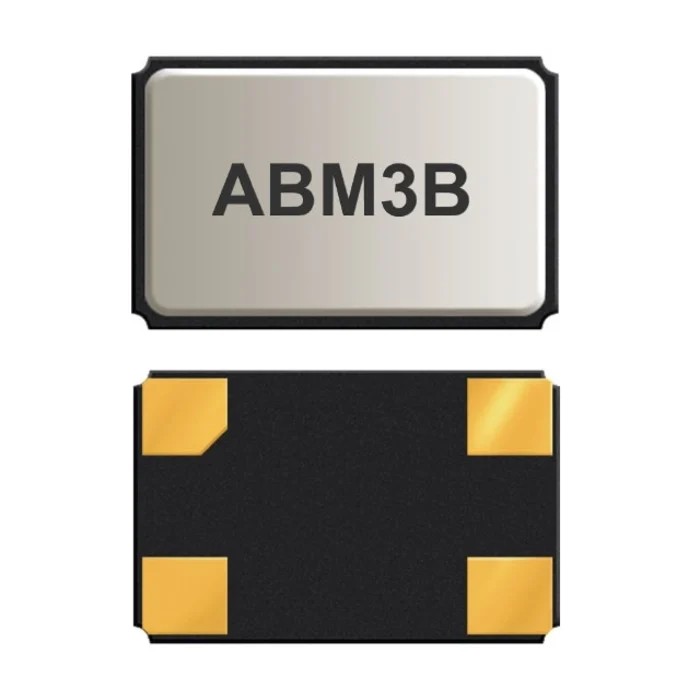

Abracon 32 MHz Crystal Unit Surface Mount 4-Pin Tape & Reel 18pF Load Capacitance ABM3B-32.000MHZ-B2-T

Abracon ABM3B-32.000MHZ-B2-T is a 32 MHz crystal unit designed with a surface mount 4-pin configuration, ideal for high-density electronic applications.

This crystal unit features a standard frequency of 32 MHz with load capacitance of 18 pF, packaged in a compact surface mount package measuring 5 mm length, 3.2 mm width, and 1.1 mm height. The device supports an operating temperature range from -10 °C to 60 °C and offers a frequency tolerance and stability of ±50 ppm.

Designed for fundamental mode operation, it has an Equivalent Series Resistance (ESR) of 50 Ω. The ceramic package combined with a metal lid ensures high precision and reliability, while seam sealing protects the inner components.

This product is RoHS compliant, demonstrating compliance with environmental standards, making it suitable for electronics manufacturing and industrial automation.

Common industrial use cases include cellular telephones, pagers, communication equipment, test instruments, PCMCIA cards, and wireless devices in industrial and commercial settings.

Standard frequency of 32 MHz ensuring stable oscillator performance. Compact surface mount 4-pin package for efficient PCB layout. Load capacitance of 18 pF optimized for precise frequency control. Tape and reel packaging facilitates automated assembly processes.

Operating temperature range of -10 °C to 60 °C for varied environmental conditions. Equivalent Series Resistance of 50 Ω supports fundamental mode operation. RoHS certified for environmental compliance. Ceramic package with metal lid ensures durability and precision.

Frequency tolerance of ±50 ppm provides high accuracy. Applications in cellular, paging, communication, and wireless test equipment. This Abracon crystal unit is an essential component for engineers and designers developing reliable electronic systems requiring precise timing and frequency control.
