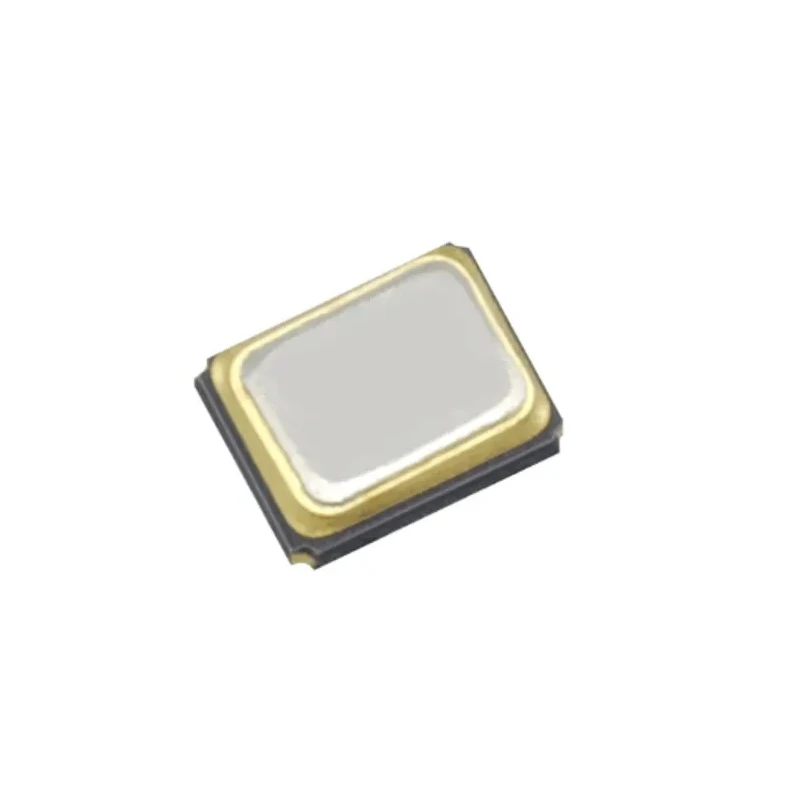

Epson 26 MHz Crystal Unit Surface Mount 4-Pin SMT Package ±10 ppm Frequency Tolerance X1E000251001412

Epson X1E000251001412 is a high-quality 26 MHz crystal unit designed for surface mount technology (SMT) applications. It features a frequency tolerance of ±10 ppm and a stable frequency stability between -12 to 12 ppm, ensuring consistent operation for timing and oscillator circuits commonly used in mobile phones, Bluetooth devices, WLAN modules, and ISM band radios.

The crystal unit comes in a 4-pin SMT package with physical dimensions of 1.6 mm length, 1.2 mm width, and 0.35 mm height, making it ideal for compact PCB layouts. Its load capacitance is rated at 9 pF, and it offers a series resistance of 200Ω for efficient signal resonance.

Engineered to operate reliably across a broad temperature range from -40°C to +85°C, this crystal meets stringent EU RoHS environmental standards and is free of lead, aligning with modern manufacturing compliance requirements.

Packaged as 3000 pieces per reel, the Epson FA-118T series crystal is optimized for large-scale automated PCB assembly lines, delivering consistent performance for industrial and commercial electronics manufacturing.

Standard frequency: 26 MHz. Surface mount type suitable for compact designs. Load capacitance: 9 pF. Physical package dimensions include 1.6 mm length, 1.2 mm width, and 0.35 mm height. Operating temperature range from -40°C to +85°C.

Series resistance: 200Ω for stable oscillation. Compliant with EU RoHS directive ensuring environmental safety. Package includes 3000 pieces per reel, suitable for mass production. Ideal for use in mobile phones, Bluetooth, WLAN, and ISM band radio applications.
