Abracon 13.56 MHz Surface Mount 4-Pin Crystal Unit ±50 ppm 10 pF Load Capacitance ABM3B-13.560MHZ-10-1-U-T

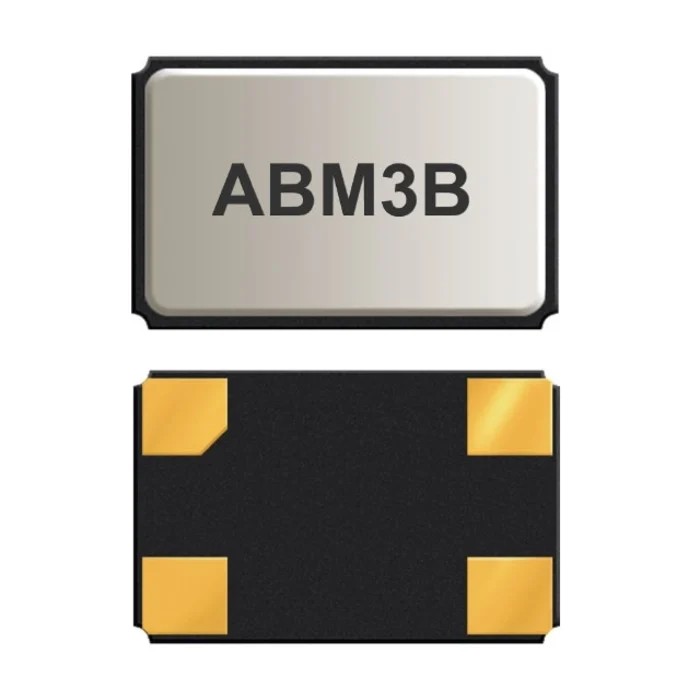

Abracon ABM3B-13.560MHZ-10-1-U-T is a 13.56 MHz crystal unit designed for surface mount applications. This 4-pin crystal unit features a ceramic package with a metal lid, providing high precision, reliable performance, and robust seam sealing.

Its operating temperature range from -10°C to 60°C and ±50 ppm frequency tolerance ensure stable functionality in diverse environments. With a load capacitance of 10 pF and an equivalent series resistance of 70 ohms, it operates in fundamental mode suitable for reflow soldering processes.

The compact size of 5 mm length, 3.2 mm width, and 1.1 mm height allows integration into high-density electronic components, ideal for communication devices like cellular phones, pagers, and wireless systems, as well as test equipment and PCMCIA cards.

This crystal unit is RoHS compliant, adhering to environmental standards and making it suitable for modern electronic manufacturing. Operates within -10°C to 60°C temperature range. Compact surface mount package: 5 mm x 3.2 mm x 1.1 mm.

4-pin ceramic package with metal lid for durability. Equivalent Series Resistance of 70 ohms ensures stable oscillation. ±50 ppm frequency tolerance and frequency stability. Load Capacitance of 10 pF optimized for communication devices.

Suitable for cellular telephones, pagers, PCMCIA, and test equipment. Seam sealing technology enhances precision and reliability.

This crystal unit is an integral component in electronics, ideal for use in industrial, telecommunications, electronics manufacturing, and wireless communication applications. It supports high-frequency oscillation needs with precision and reliability.
