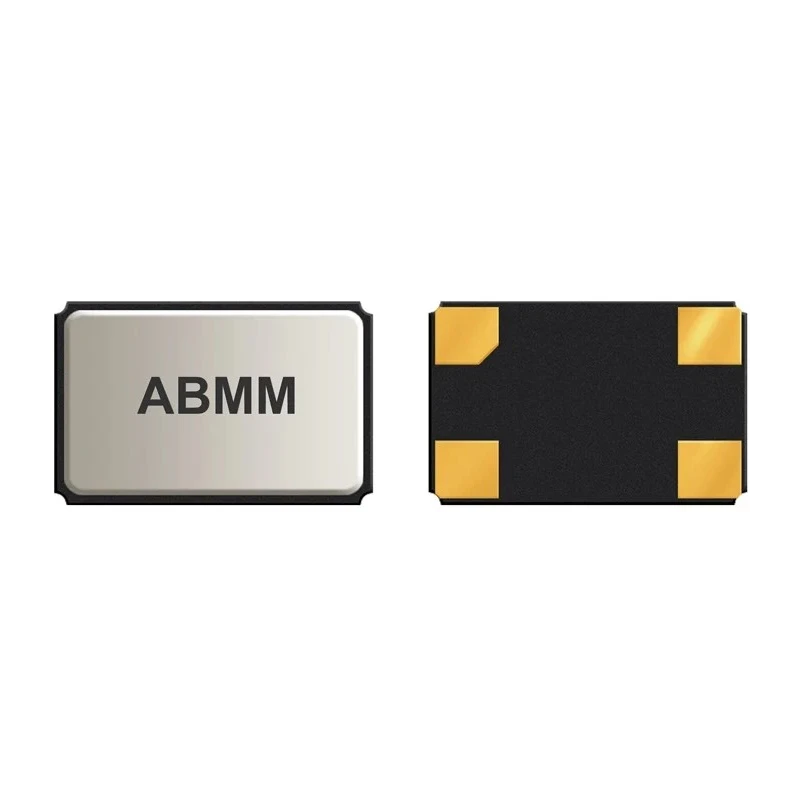

Abracon 8 MHz Crystal Unit ±50 ppm Surface Mount 4-Pin 1.3 mm Height 7 mm Length 5 mm Width ABMM-8.000MHZ-B2-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 8 MHz Crystal Unit ±50 ppm Surface Mount 4-Pin 1.3 mm Height 7 mm Length 5 mm Width ABMM-8.000MHZ-B2-T

Name: Abracon 8 MHz Crystal Unit ±50 ppm Surface Mount 4-Pin 1.3 mm Height 7 mm Length 5 mm Width ABMM-8.000MHZ-B2-T
Brand: Abracon
SKU: 424471
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	1.3mm
Length	7mm
Model	ABMM-8.000MHZ-B2-T
Packaging	Tape & Reel
Width	5mm
Mount Type	Surface
Series	ABMM
Maximum Operating Temperature	60°C
Package Type	Surface Mount
Minimum Operating Temperature	-10°C
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	8MHz
Load Capacitance	18pF
Series Resistance	70Ω

Key Features

Operates with a standard frequency of 8 MHz suitable for microprocessor and communication applications.
Surface mount packaging with Tape & Reel for automated PCB assembly processes.
Has a load capacitance of 18 pF ensuring reliable oscillation performance.
Features low series resistance of 70 Ω for efficient energy transmission.
Supports operating temperatures from -10°C to 60°C to withstand various environmental conditions.
Complies with RoHS standards to guarantee environmental safety and regulatory compliance.
Compact 4-pin design with AT-strip cut for tight tolerance and high frequency stability.
Ideal for use in computers, modems, microprocessors, test equipment and PCMCIA cards.

Product Description

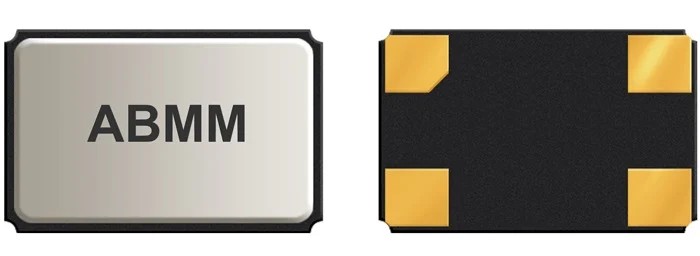

Abracon ABMM-8.000MHZ-B2-T is an 8 MHz ceramic surface mount crystal unit optimized for microprocessor-based electronic circuits requiring precision frequency control. This 4-pin crystal unit offers a frequency tolerance and stability of ±50 ppm, maintaining performance consistency in demanding environments.

Its slim package profile measures 7 mm in length, 5 mm in width, and 1.3 mm in height, making it suitable for space-constrained PCB layouts. The unit is designed for surface mounting and supplied in Tape & Reel packaging to facilitate automated manufacturing.

Featuring a load capacitance of 18 pF and a low series resistance of 70 Ω, it provides efficient oscillation and signal integrity. Operational temperature range from -10°C to 60°C ensures reliable performance across diverse industrial, commercial, and telecommunications applications.

Standard frequency 8 MHz suitable for microprocessor and communication systems. RoHS-compliant for environmental and safety standards. Compact 4-pin surface mount design with tape and reel packaging. Low series resistance enhances energy efficiency and signal quality.

Temperature tolerance and stability ensuring operational reliability. Ideal for a broad range of electronic devices including modems, test equipment, and PCMCIA. Ideal for use in industrial electronics, telecommunications, computing hardware, and embedded systems requiring stable crystal oscillators.
