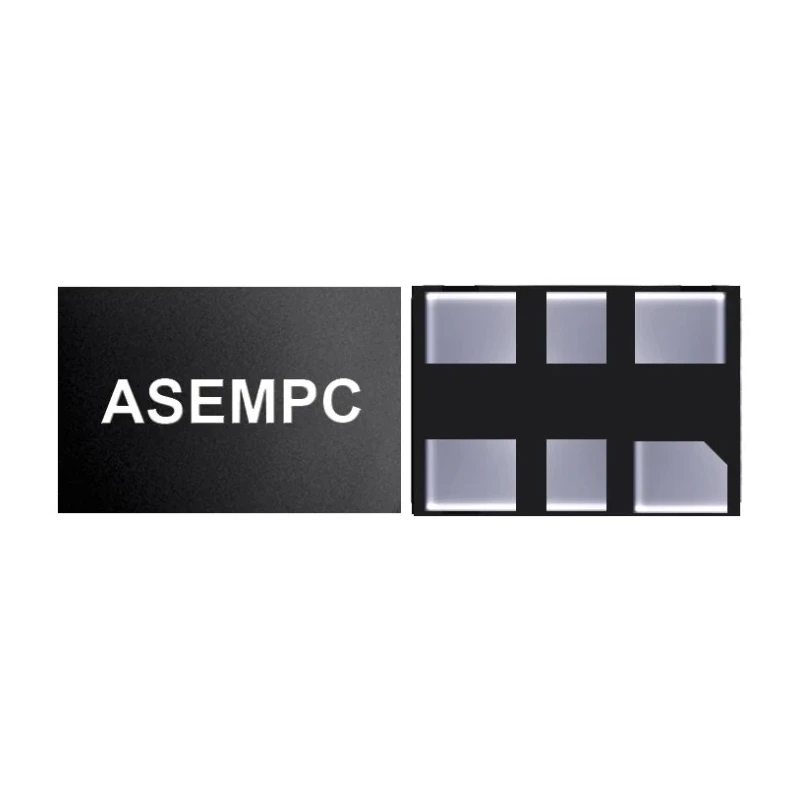

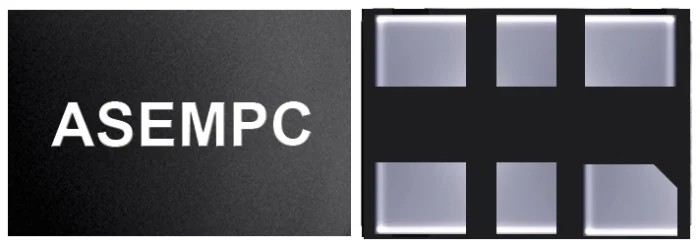

Abracon 25 MHz MEMS Oscillator, 6-Pin QFN Surface Mount, CMOS Output, ±25 ppm Frequency Stability ASEMPC-25.000MHZ-LR-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 25 MHz MEMS Oscillator, 6-Pin QFN Surface Mount, CMOS Output, ±25 ppm Frequency Stability ASEMPC-25.000MHZ-LR-T

Name: Abracon 25 MHz MEMS Oscillator, 6-Pin QFN Surface Mount, CMOS Output, ±25 ppm Frequency Stability ASEMPC-25.000MHZ-LR-T
Brand: Abracon
SKU: 426825
Price: 3.43 USD
Availability: InStock



Category MEMS Oscillator Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.85mm
Length	3.2mm
Model	ASEMPC-25.000MHZ-LR-T
Packaging	Tape & Reel
Width	2.5mm
Mount Type	Surface
Series	ASEMP
Maximum Operating Temperature	85°C
Package Type	QFN
Minimum Operating Temperature	-40°C
Maximum Output Frequency	25MHz
Standards/Approvals	RoHS/RoHS II
Pin Count	6
Output Level	CMOS
Maximum Operating Supply Voltage	3.6V
Minimum Operating Supply Voltage	2.25V

Key Features

Operates over a wide voltage range of 2.25 V to 3.6 V.
Features a compact 6-pin QFN surface mount package measuring 3.2 x 2.5 x 0.85 mm.
Supports operating temperatures from -40°C to 85°C suitable for industrial applications.
CMOS output level compatible with modern digital circuits.
RoHS and RoHS II compliant for environmental safety.
Durable plastic QFN package designed to withstand MIL-STD-883 shock and vibration.
Low power consumption ideal for Ethernet, SAS, SATA, GPON, and PCI Express communications.
Tristate standby or disable function supported for power management.

Product Description

Abracon ASEMPC-25.000MHZ-LR-T MEMS Oscillator is a precision 25 MHz timing device designed with a compact 6-pin QFN surface mount package. Operating with a supply voltage ranging from 2.25 V to 3.6 V, this oscillator provides CMOS output signals with a frequency stability of ±25 ppm across the temperature range of -40°C to 85°C. It meets RoHS and RoHS II standards ensuring compliance with environmental directives.

This MEMS oscillator is engineered for high-speed communication applications including Storage Area Networks (SATA, SAS, Fiber Channel), Passive Optical Networks (EPON, 10G-EPON, GPON, 10G-PON), Ethernet (1G, 10GBASE-T, KR, LR, SR), Fibre Channel over Ethernet (FCoE), PCI Express, and Display Port interfaces. Its low power consumption and reliable timing accuracy make it a strong choice for these applications.

The device is housed in a durable plastic QFN package that meets MIL-STD-883 shock and vibration standards, ensuring robust operation in demanding industrial environments. It also features a tristate function supporting standby or disable modes to help manage power efficiently.

Operates from 2.25 V minimum to 3.6 V maximum supply voltage. Frequency stability tightly controlled at ±25 ppm over the industrial temperature range. Compact dimensions of 3.2 mm length, 2.5 mm width, and 0.85 mm height.

6 pins arranged in a QFN surface mount package for ease of PCB integration. Low jitter with excellent phase noise performance for precision timing. Compliant with RoHS and RoHS II environmental standards. Suitable for automotive standard applications, though this specific model is not automotive rated.

Mechanical robustness as per MIL-STD-883 for shock and vibration compliance.

This Abracon MEMS oscillator offers dependable and accurate frequency generation essential for modern electronics industrial, laboratory, networking, and telecommunications systems. It supports a wide variety of industrial communication protocols and aids in maintaining stable system clocks.
