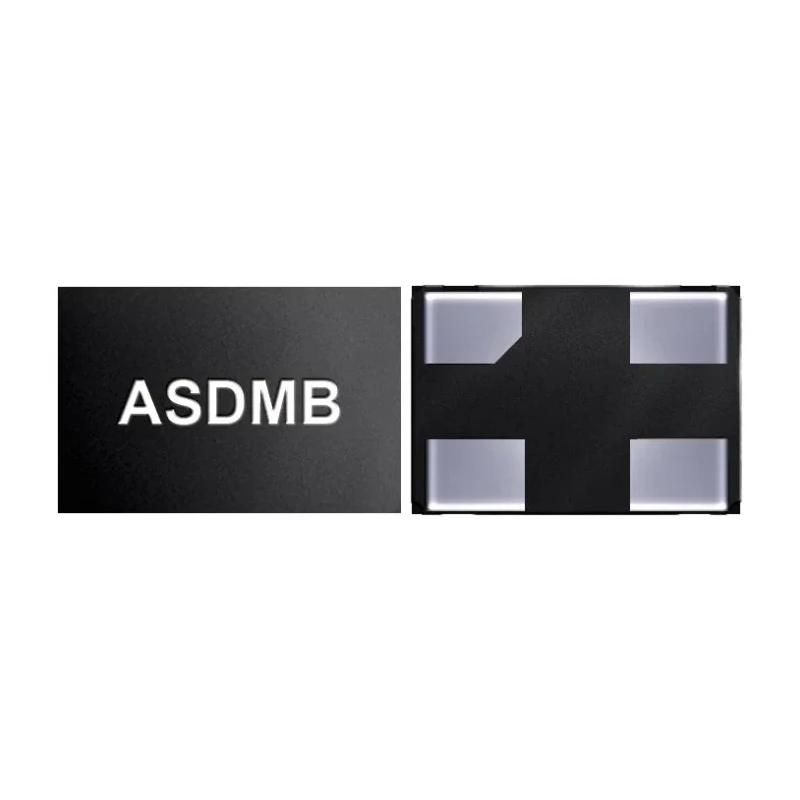

Abracon 100 MHz MEMS Oscillator 4-Pin Surface Mount ±10 ppm 1.8-3.3 V ASDMB-100.000MHZ-LY-T

Name: Abracon 100 MHz MEMS Oscillator 4-Pin Surface Mount ±10 ppm 1.8-3.3 V ASDMB-100.000MHZ-LY-T
Brand: Abracon
SKU: 424362
Price: 4.4 USD
Availability: InStock



Category MEMS Oscillator Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.85mm
Length	2.5mm
Model	ASDMB-100.000MHZ-LY-T
Packaging	Tape & Reel
Width	2mm
Mount Type	Surface
Series	ASDMB
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Maximum Output Frequency	100MHz
Standards/Approvals	RoHS/RoHS II
Pin Count	4
Output Level	LVCMOS
Maximum Operating Supply Voltage	3.3V
Minimum Operating Supply Voltage	1.8V

Key Features

The oscillator operates over a voltage range of 1.8 V to 3.3 V.
Outputs an LVCMOS output level suitable for various digital circuits.
Designed for operating temperature range from -40°C to 85°C.
Compact dimensions of 2.5 mm length, 2 mm width, and 0.85 mm height enable low-profile mounting.
Provided in Tape & Reel packaging for automated assembly.
Ideal for portable electronics, industrial equipment, and consumer devices.
Designed to replace crystal oscillators with low power consumption and increased durability.
Compliant with RoHS and RoHS II standards for environmental safety.

Product Description

The Abracon ASDMB-100.000MHZ-LY-T MEMS Oscillator is a high-performance 100 MHz frequency source with a compact 4-pin surface mount design tailored for current electronic systems requiring reliable clock signals.

Operating within an extended temperature range of -40°C to 85°C, this device supports harsh industrial and commercial environments while ensuring stability with a tight frequency tolerance of ±10 ppm.

Its low-voltage operation between 1.8 V and 3.3 V and low power consumption make it suitable for portable electronics such as MP3 players, gaming devices, and consumer electronics including TVs and DVRs.

The LVCMOS output level offers compatibility with a wide array of digital logic circuits, while the MEMS technology delivers greater mechanical robustness compared to traditional quartz crystal oscillators, making it ideal for equipment subjected to shock, vibration, or humid conditions.

Encased in a small form factor of 2.5 mm by 2 mm by 0.85 mm, the oscillator fits in low profile PCB layouts and comes supplied in Tape & Reel packaging, facilitating automated manufacturing processes. It is compliant with RoHS and RoHS II directives, supporting environmentally conscious product design.

The oscillator operates over a voltage range of 1.8 V to 3.3 V. Compact 4-pin surface mount package suitable for space-constrained applications. Frequency stability within ±10 ppm ensures precise timing references. Extended operating temperature range from -40°C to 85°C supports rugged environments.

Low power consumption enables use in battery-powered devices. MEMS technology offers shock and vibration resistance superior to quartz crystals. RoHS and RoHS II compliant, meeting environmental standards. Supplied in Tape & Reel packaging for efficient assembly.

This MEMS oscillator is widely used in industrial, commercial, and consumer applications including video camera clocks, computer peripherals, automotive electronics, and other demanding environments requiring reliable frequency reference sources.
