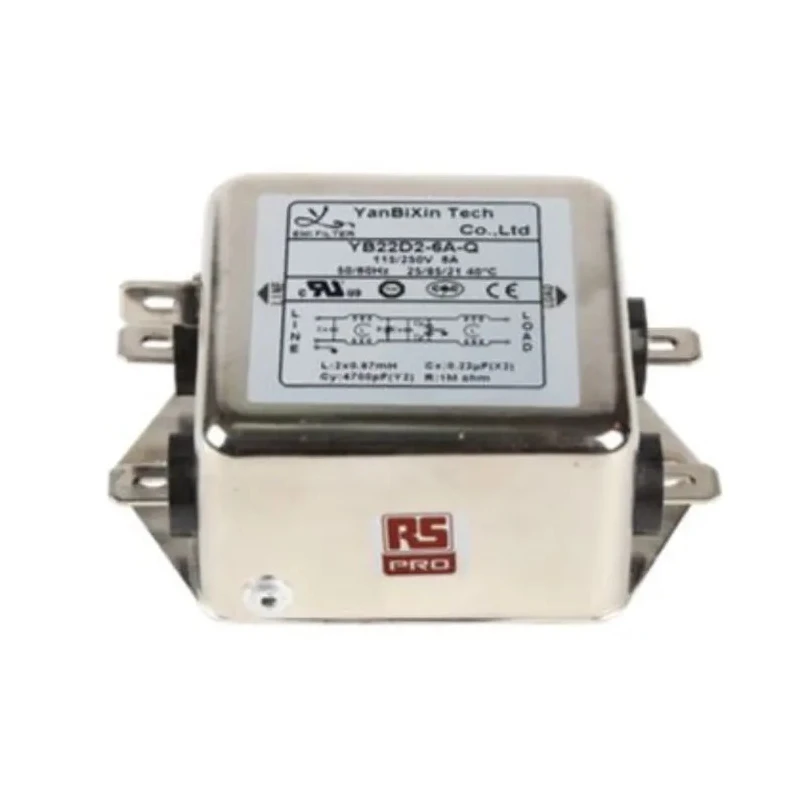

RS PRO 6A 250V AC 50Hz 60Hz Chassis Mount EMI Filter Fast-On 1 Phase 237-8712

RS PRO 237-8712 EMI Filter is a high-quality chassis mount power line filter designed to handle a maximum current of 6A and voltage up to 250V AC. Compatible with both 50Hz and 60Hz operating frequencies, this single-phase filter provides effective suppression of electromagnetic interference (EMI), protecting sensitive electronic equipment from harmful conducted radio frequencies that can degrade performance or cause damage.

The filter features a 2-stage design incorporating an inductance of 2mH and a capacitance of 0.1μF. This configuration delivers robust noise attenuation while maintaining a minimal leakage current of 800μA, conforming to UL1283 standards for safety and electromagnetic compliance. Its chassis mount form factor coupled with a fast-on termination style (6.3 x 0.8mm quick connect) facilitates secure installation on various power-dependent systems.

With operational temperature tolerance from -25°C to 85°C and compact dimensions (73mm long, 51mm deep, 29mm high), it is suitable for use in environments ranging from industrial machinery to household electrical appliances. The low resistance of 2.2mΩ further enhances circuit stability by reducing voltage drops and power loss.

This EMI filter is particularly effective in protecting critical equipment such as industrial devices and medical apparatus from transient voltage spikes caused by power outages or nearby lightning, extending the operational lifespan and reliability of connected devices.

Engineered by RS PRO, this component meets demanding industry standards and is manufactured in China with a focus on quality and durability. Applications include use in industrial automation, household electronics, medical equipment, and other settings requiring reliable EMI/RFI noise suppression.

Chassis mount design ensures secure installation on electronic equipment. Fast-on termination allows quick and reliable electrical connections. Dual-stage filtering optimizes reduction of electromagnetic interference. Conforms to UL1283 standards for safety and electromagnetic compatibility.

Compact size fits small to medium equipment spaces. Leakage current control enhances operational safety. Wide temperature range supports various environmental conditions. Ideal for medical, industrial, and household electronic protection.

Resistant to voltage spikes and transient disturbances. Manufactured with quality assurance in China by RS PRO.

Explore our range of RS PRO EMI Filters for reliable noise suppression solutions in electronics. Discover high-quality, securely tested components at EnvMart for industrial and commercial applications.
