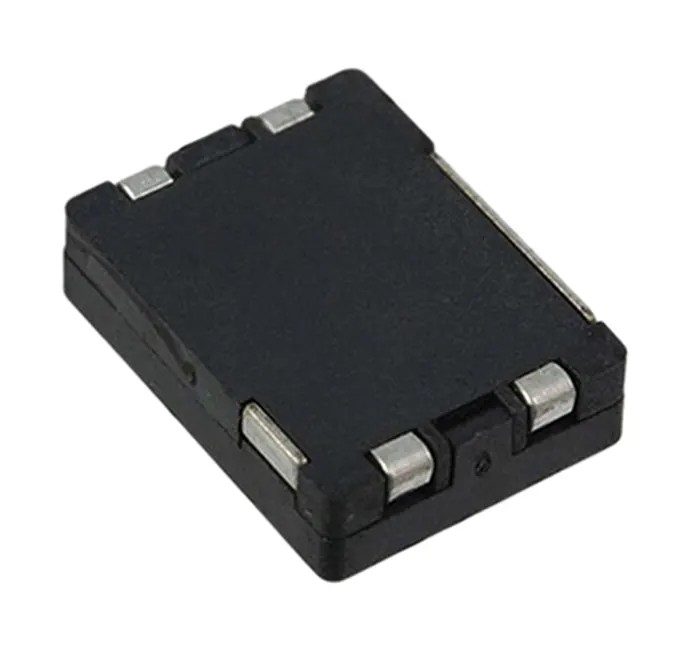

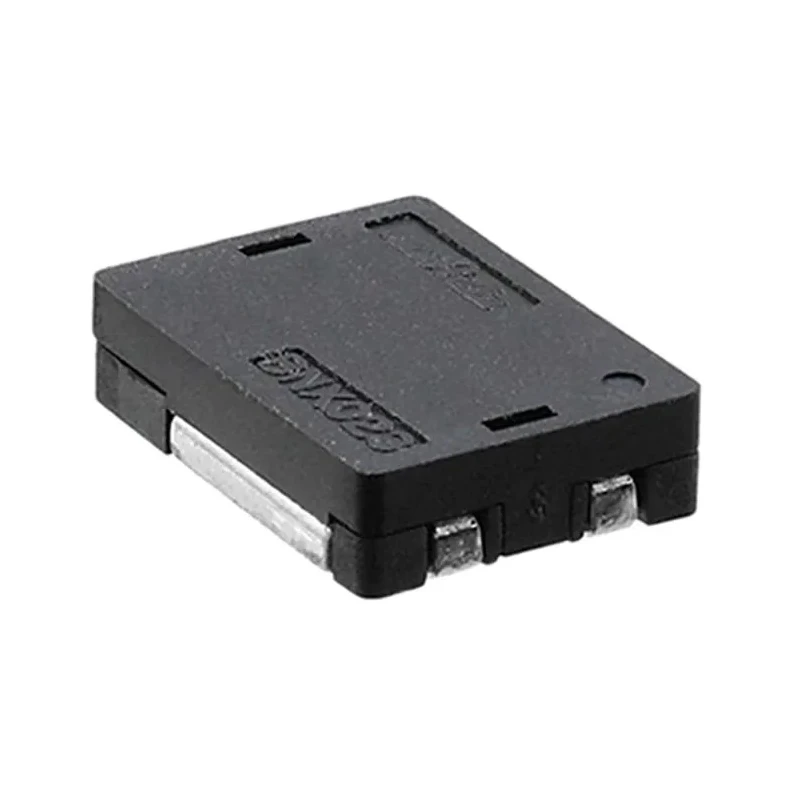

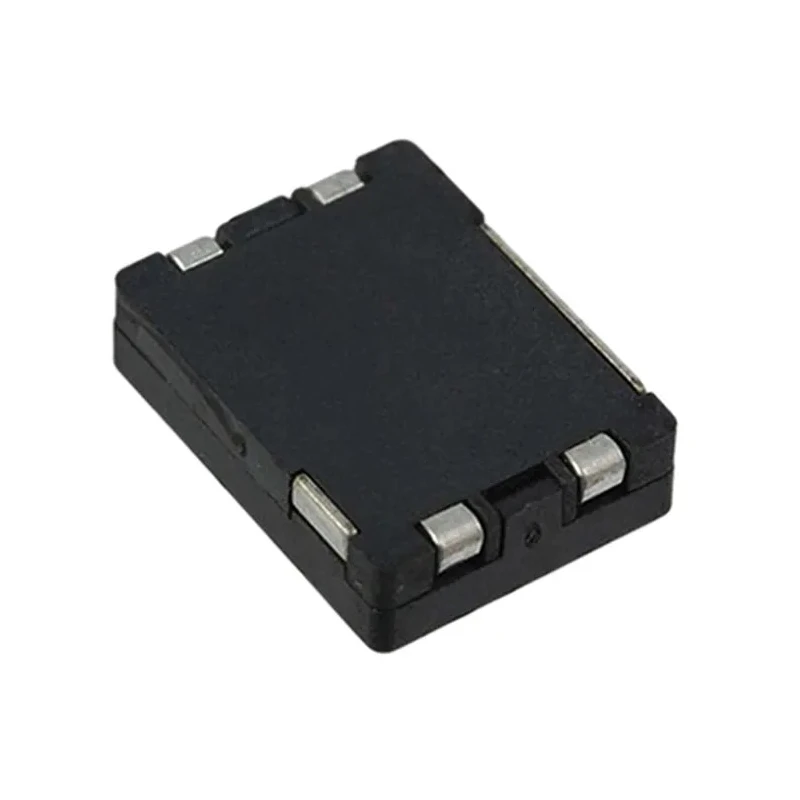

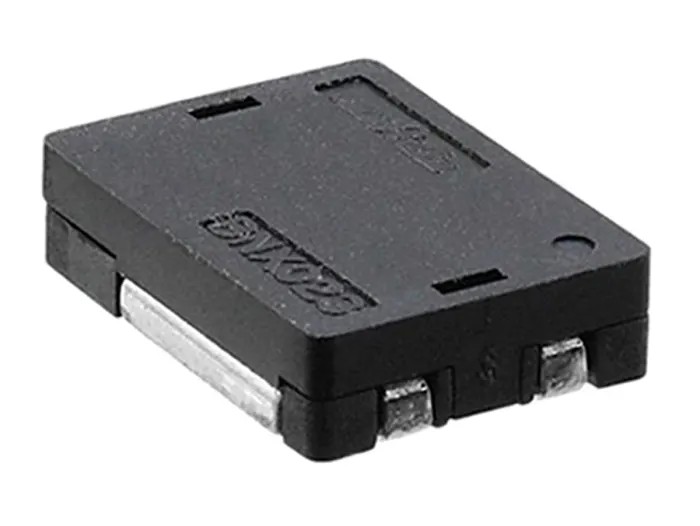

Murata EMI Filter BNX02 Series 16V DC 1GHz 15A Surface Mount Solder Termination
Specifications
| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 3.5mm |
| Length | 12.1mm |
| Model | BNX02 |
| Depth | 9.1mm |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Operating Frequency | 1GHz |
| Series | BNX02 |
| Maximum Operating Temperature | 105°C |
| Capacitance | 47μF |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 15A |
| Maximum Voltage | 16V dc |
| Standards/Approvals | RoHS |
| Termination Style | Solder |
Key Features
- Provides excellent EMI noise suppression for DC power applications.
- Features a low DC resistance of approximately 0.43 milliohm for efficiency.
- Compact dimensions minimize PCB footprint with 12.1 mm length, 3.5 mm height, and 9.1 mm depth.
- Suitable for impulse noise protection such as electro-static discharge and spike noise.
- Operates reliably in temperature ranges from -40°C to 105°C.
- Utilizes solder termination style for secure surface mounting.
- Capacitance value of 47μF to further aid noise filtering.
- Ideal for applications including displays, digital AV equipment, amusement equipment, and industrial measurement instruments.
Product Description
Murata BNX02 EMI Filter BNX028-01L is a surface mount device designed for high performance EMI noise suppression on DC power lines. It operates at a maximum voltage of 16V DC and frequency up to 1GHz while supporting currents up to 15A. Its compact size (12.1 mm length, 3.5 mm height, and 9.1 mm depth) helps reduce PCB mounting area, making it ideal for modern electronic assemblies.
This filter features a low DC resistance, approximately 0.43 milliohm, which minimizes power loss and heat generation. The device is capable of filtering impulse noise, such as electrostatic discharge and spike noise, enhancing the reliability of sensitive electronics.
The solder termination style facilitates a reliable surface mount connection, suitable for tape and reel packaging preferred for automated production. It operates efficiently within a temperature range of -40°C to 105°C, suitable for various environmental conditions.
The BNX02 series has a capacitance of 47 μF that aids in smoothing and noise reduction on DC power lines. This technical performance makes the filter well-suited for industrial applications including displays (PDP/LCD-TV), digital AV equipment, amusement devices, PC peripherals, and measurement instrumentation.
Provides excellent EMI noise suppression for DC power lines. Low DC resistance ensures high efficiency and low heat buildup. Compact size reduces PCB area requirements. Effective against impulse noise like electrostatic discharge.
Wide operating temperature range from -40°C to 105°C. Solder termination type designed for surface mounting. Capacitance of 47μF enhances noise filtering capability. Applications include displays, digital audio/video, industrial, and measurement equipment.
Choose Murata BNX02 EMI Filter for reliable, compact, and efficient EMI suppression in demanding electronic environments. Browse the Electronics Components and EMI Filter categories at EnvMart for more options and solutions tailored to your industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The BNX02 EMI filter supports a maximum current of 15A.
It operates at a maximum voltage of 16V DC.
The capacitance value of this filter is 47μF, which aids in noise filtering.
This model has dimensions of 12.1 mm in length, 3.5 mm in height, and 9.1 mm in depth.
It operates reliably in a temperature range from -40°C to 105°C.
The BNX02 features a solder termination style designed for secure surface mounting.
This EMI filter can operate at frequencies up to 1GHz.
It is packaged in tape and reel, which is preferred for automated production.
It is suitable for applications including displays, digital AV equipment, amusement devices, and industrial measurement instruments.
This model complies with RoHS standards.
The low DC resistance of approximately 0.43 milliohm minimizes power loss and heat generation, enhancing efficiency.
It is effective against impulse noise, such as electrostatic discharge and spike noise.
