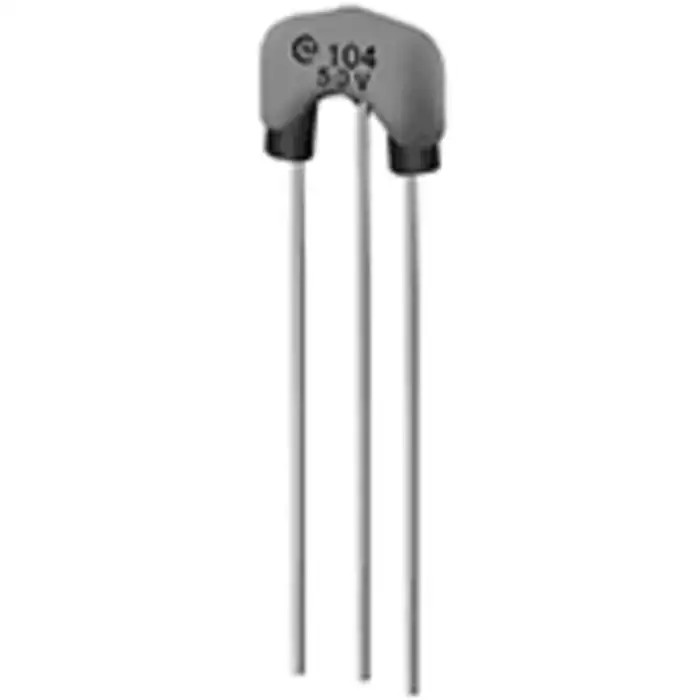

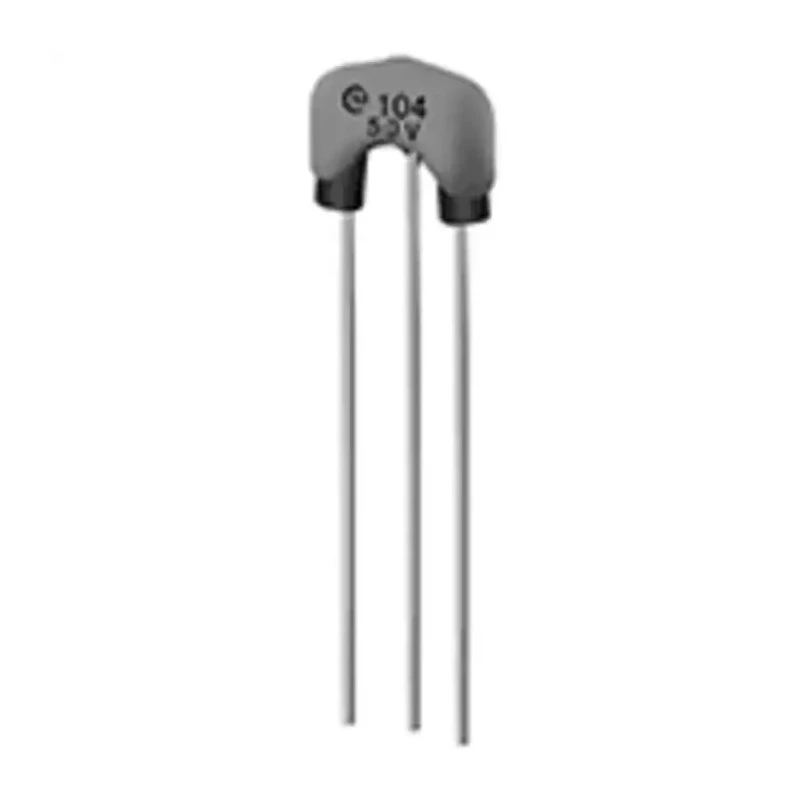

Murata DSS1 EMI Filter 100V DC 6A Through Hole Solder Q91A 8.5mm

Murata DSS1 EMI Filter model DSS1NB32A220Q91A is designed for efficient electromagnetic interference suppression, featuring a 22pF capacitance in a compact Q91A package. It supports a maximum DC voltage of 100 volts and continuous current up to 6 amperes, suitable for a variety of electronic and electrical applications.

This EMI filter utilizes a three-terminal structure which enhances high-frequency performance. The through hole mounting and solder termination style facilitate reliable installation on printed circuit boards, enabling automated high-speed mounting with insertion machines.

Operating temperature ranges from -40°C to 85°C, making it suitable for harsh industrial and commercial environments. The product is RoHS compliant, affirming its adherence to global environmental and safety regulations.

Its compact 8.5 mm length package aids in space-saving designs without compromising performance. Manufactured in Japan, this filter guarantees premium quality and long-term durability for various signal filtering needs in industrial electronics, power supply circuits, communication devices, and electronic instruments.

The Murata DSS1 series EMI filter is ideal for use in industrial, manufacturing, and electronic device assembly sectors where noise reduction and signal integrity are critical. Rated for a maximum current of 6 A. Maximum voltage rating of 100V DC.

Through hole mount type with solder termination. 22pF capacitance provides effective high-frequency noise filtering. Compact Q91A package with 8.5 mm length. Wide operating temperature range from -40°C to 85°C. RoHS compliant ensuring environmentally friendly construction.

High-speed mounting capability for automated assembly. Manufactured in Japan ensuring quality performance. Explore more quality electronics components like EMI Filters and signal filters in the Electronics & Electricals category on EnvMart.
