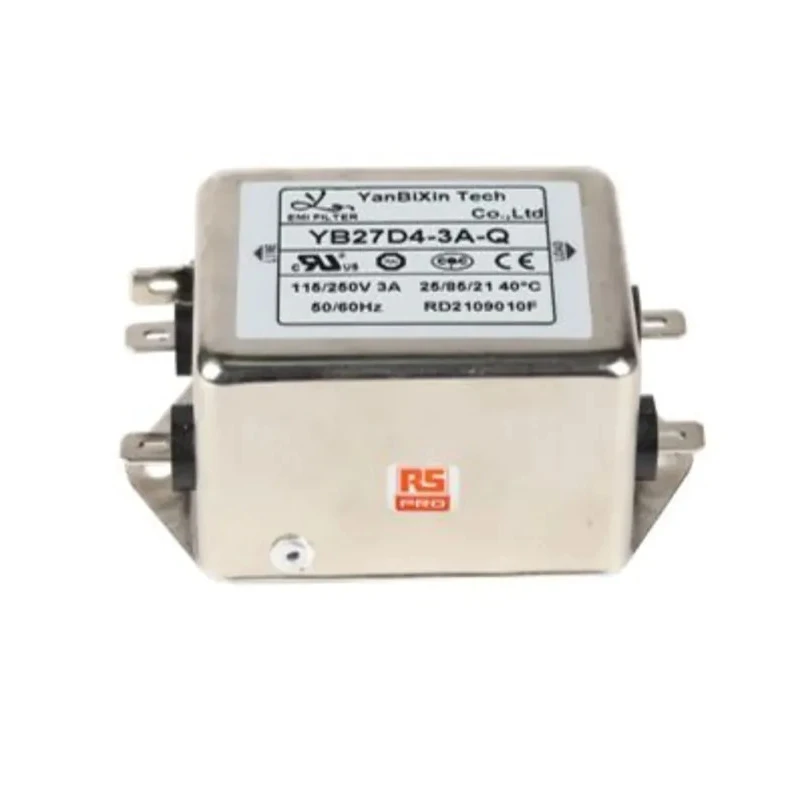

RS PRO Chassis EMI Filter 3A 250V ac 50Hz 60Hz Fast-On Termination 1 Phase 237-8719

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Chassis EMI Filter 3A 250V ac 50Hz 60Hz Fast-On Termination 1 Phase 237-8719

Name: RS PRO Chassis EMI Filter 3A 250V ac 50Hz 60Hz Fast-On Termination 1 Phase 237-8719
Brand: RS PRO
SKU: 413887
Price: 22 USD
Availability: InStock



Category EMI Filter Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Height	38mm
Length	85mm
Model	237-8719
Depth	51mm
Mount Type	Chassis
Operating Frequency	50, 60Hz
Maximum Operating Temperature	85°C
Number Of Stages	2
Resistance	470kΩ
Capacitance	0.47μF
Minimum Operating Temperature	-25°C
Maximum Current	3A
Number of Phases	1
Leakage Current	1mA
Maximum Voltage	250V ac
Standards/Approvals	UL1283
Termination Style	Fast-On

Key Features

This EMI filter operates efficiently at 50Hz and 60Hz frequencies.
Compact chassis mount design with dimensions 85mm length, 51mm depth, and 38mm height.
Equipped with a 0.47μF capacitance and 470kΩ resistance for effective interference suppression.
Reliable at ambient temperatures ranging from -25°C to 85°C.
Features two stages of filtering to reduce radio frequency interference (RFI).
Leakage current specified at 1mA, adhering to UL1283 standards for EMI filtering.
Termination style uses fast-on connectors for quick and secure installation.
Suitable for protecting sensitive industrial and medical electronic equipment from transient voltage spikes and interference.

Product Description

RS PRO 237-8719 chassis EMI filter is engineered for power line interference suppression, rated for a maximum current of 3A at 250V AC and operational frequencies of 50Hz and 60Hz. This single-phase, two-stage filter features a compact chassis mount form factor with fast-on termination connectors, facilitating easy integration into electrical systems.

The filter incorporates a 0.47μF capacitance and 470kΩ resistance specifically designed to attenuate conducted radio frequency interference, thereby protecting sensitive electronic circuits from RFI-induced malfunctions and potential damage.

Operating reliably within temperature ranges from -25°C up to 85°C, it is suitable for a wide range of industrial, medical, and household applications requiring electromagnetic compatibility (EMC) compliance. The filter also effectively safeguards equipment from transient voltage spikes due to power outages, short circuits, or nearby lightning activity.

Measuring 85mm in length, 51mm in depth, and 38mm in height, this component fits compactly on chassis installations. It complies with UL1283 standards for EMI filters, ensuring safety and performance quality.

This RS PRO Power Line Filter can be deployed in industrial manufacturing equipment, medical devices, and household appliances to prolong operational life and reduce electromagnetic interference-related faults.

This EMI filter operates efficiently at 50Hz and 60Hz frequencies. Compact chassis mount design with dimensions 85mm length, 51mm depth, and 38mm height. Equipped with a 0.47μF capacitance and 470kΩ resistance for effective interference suppression.

Reliable at ambient temperatures ranging from -25°C to 85°C. Features two stages of filtering to reduce radio frequency interference (RFI). Leakage current specified at 1mA, adhering to UL1283 standards for EMI Filtering.

Termination style uses fast-on connectors for quick and secure installation. Suitable for protecting sensitive industrial and medical electronic equipment from transient voltage spikes and interference. Manufactured in China ensuring compliance with regulatory standards for safety and performance.
