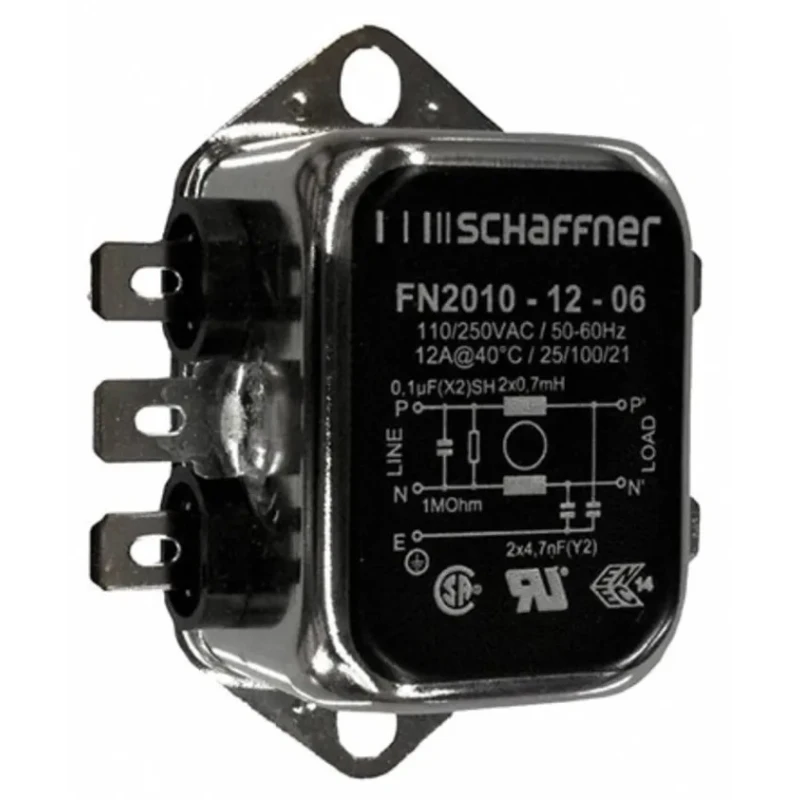

Schaffner Chassis Mount EMI Filter 12A 250V AC/DC Fast-On Termination Single Phase FN2010

Schaffner FN2010 Chassis Mount EMI Filter is a robust and reliable filter designed for industrial and electronic applications requiring effective electromagnetic interference (EMI) suppression. This model supports a maximum current of 12 amps and a maximum voltage rating of 250 volts AC/DC, making it compatible with a wide range of power systems.

It features a chassis mount type enclosure constructed from aluminium, providing durability and efficient heat dissipation. The filter employs a Fast-On terminal style for secure, easy-to-connect wiring, suitable for single-phase power lines with one stage filtering.

Operating efficiently across frequencies from direct current (0 Hz) up to 400 Hz, it ensures noise reduction within typical electrical network conditions. Electrical characteristics include 100nF capacitance and 700μH inductance, optimized to block unwanted high-frequency signals. Leakage current is low, at only 740μA, contributing to energy efficiency.

The operating temperature range spans from -25°C up to 100°C, allowing use in diverse ambient conditions found in industrial, manufacturing, HVAC, and commercial equipment. Physical dimensions are compact at 64mm length, 35mm depth, and 29.3mm height, enabling installation where space is limited.

The filter exhibits a very low resistance of 1 milliohm, supporting minimal energy loss while maintaining electrical integrity. Safety certifications include UL recognition and CSA certification, underscoring compliance with international electrical safety standards.

Compact chassis mount aluminium case for durability. Fast-On termination style for convenience. Supports 12A max current and 250V AC/DC voltage. Single phase, single stage EMI filtering. Operating frequency range from 0 to 400 Hz.

100nF capacitance and 700μH inductance for effective EMI suppression. Low leakage current of 740μA reduces power loss. Wide operating temperature of -25°C to 100°C. Dimensions: 64mm x 35mm x 29.3mm (LxDxH). Certified UL recognized and CSA certified component.

This filter is ideally suited for use in electronic assemblies, power supplies, industrial machines, and HVAC equipment where EMI control enhances performance and reliability. It helps to meet stringent electromagnetic compatibility (EMC) requirements in commercial and industrial settings.
