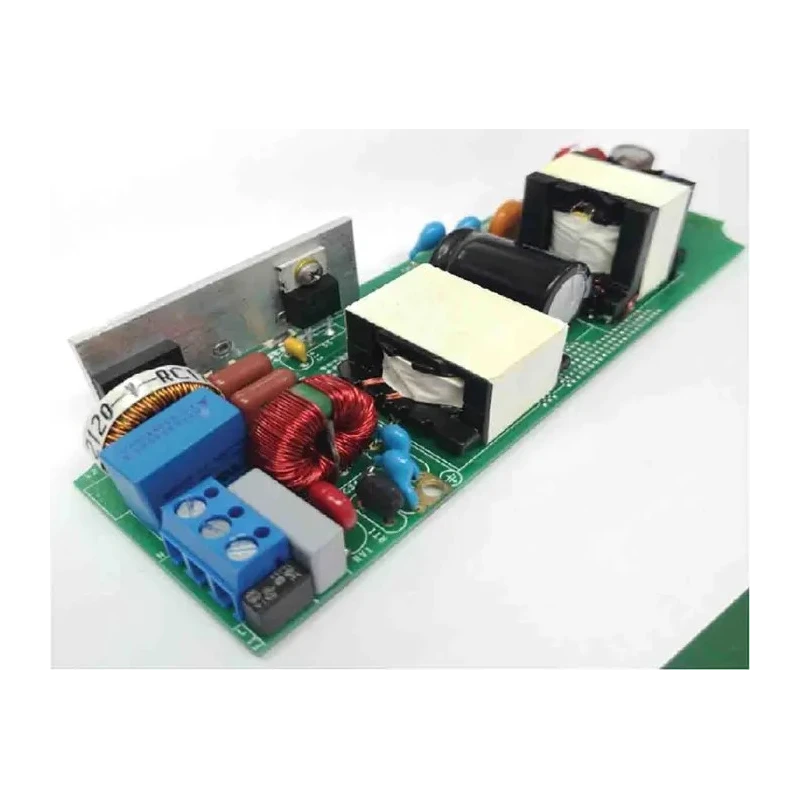

Power Integrations LED Driver Development Kit with 100 W 3-Way Dimming Function RDK-801

Power Integrations RDK-801 LED Driver Development Kit is a technically advanced solution designed for LED ballast development used in lighting applications. It provides a 100 W LED ballast with a three-way dimming function, allowing precise constant current control from 0 mA to 2080 mA and voltage output from 48 V to 36 V, making it ideal for LED lighting circuits requiring dimmable constant current.

The kit operates reliably over a wide input voltage range of 100 VAC to 277 VAC, suitable for various power environments. It features a low-cost design with a reduced component count, offering a compact printed circuit board (PCB) footprint that facilitates easier integration into customized lighting solutions.

The design is robust, incorporating protection features to prevent damage during line brown-out or brown-in conditions, enhancing the durability and reliability of lighting products built with this kit. It also conforms to stringent electrical standards by meeting IEC 2.5 kV ring wave immunity and 1 kV differential surge protection, safeguarding the device from power line disturbances.

Additionally, the RDK-801 complies with EN55015 standards for conducted electromagnetic interference (EMI), ensuring minimal interference with other electronic equipment. The development kit specifically supports the featured devices PFS7626C and LYT6079C, delivering compatibility and performance for these LED driver ICs.

The kit delivers a 100 W LED ballast with three-way dimming capabilities. Provides a stable 48 V output voltage across a current range up to 2080 mA. Optimized operation for input voltages between 100 VAC and 277 VAC. Compact design with low component count for efficient PCB integration.

Protection against line brown-out and brown-in damage. Certified to meet IEC 2.5 kV ring wave and 1 kV differential surge standards. Compliant with EN55015 for conducted EMI standards. Compatible with featured devices PFS7626C and LYT6079C.

Suitable for industrial, commercial, and residential LED lighting development projects.

This Power Integrations RDK-801 kit advances LED lighting development by providing engineers and developers with a reliable, efficient, and fully featured LED driver platform. It is relevant for applications in industrial lighting, HVAC, manufacturing, and commercial lighting control systems. EnvMart offers this high-quality development kit as part of its electronics components range.
