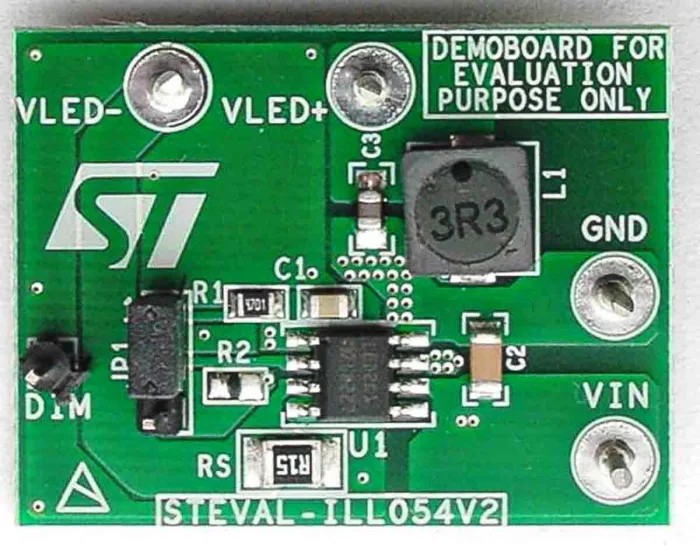

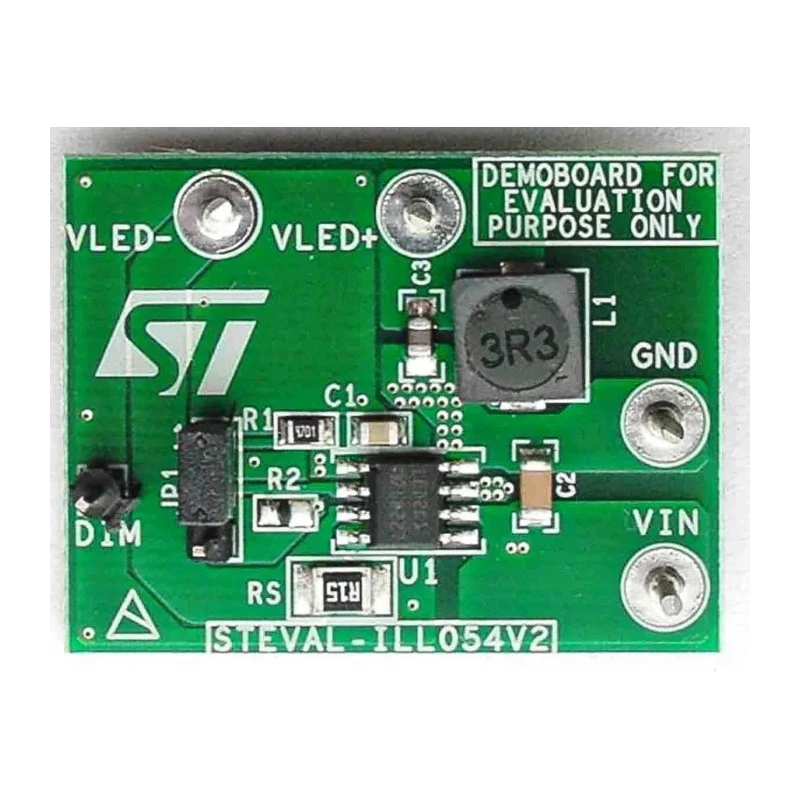

STMicroelectronics LED Driver Evaluation Board for LED2001 with PWM Dimming, 3.0-18 V Input, 850 kHz STEVAL-ILL054V2
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-ILL054V2 |
| Switching Frequency | 850 kHz |
| For Use With | Dimming LED Driver |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | LED2001 |
| Kit Name | STEVAL |
| LED Technology | LED Driver |
Key Features
- Operates at 3.0 V to 18 V input voltage range for flexible application.
- Features 850 kHz fixed switching frequency for compact design.
- Offers precise LED current regulation with ±7% output current accuracy.
- Includes internal protections for overheating, overcurrent, and output short-circuit.
- Supports synchronous rectification and internal current limiting for efficiency.
- Compact size thanks to high switching frequency and ceramic capacitor compatibility.
- Ideal for industrial and laboratory LED driver development and testing.
- Compliant with RoHS environmental standards.
Product Description
STMicroelectronics STEVAL-ILL054V2 LED Driver Evaluation Board provides engineers with a dedicated platform to evaluate the LED2001 monolithic step-down DC-DC converter. This evaluation kit operates with an input voltage range from 3.0 V up to 18 V, delivering a regulated constant current with adjustment capability up to 4 A DC, making it suitable for high-power LED applications.
Operating at a fixed switching frequency of 850 kHz allows for a compact design, minimizing the necessary external components and supporting ceramic output capacitors. The PWM dimming circuitry integrated on the board offers precise brightness control, enhancing LED driving flexibility for various applications.
The board features built-in protections including thermal shutdown, overcurrent protection, and output short-circuit protection to ensure reliable operation in testing and development environments. Synchronous rectification and internal current limiting further contribute to device efficiency and safety.
This board is RoHS compliant and is manufactured in Italy, underscoring high quality and environmental responsibility. Operates at 3.0 - 18 V input voltage range. Fixed 850 kHz switching frequency for high efficiency. ±7% output current accuracy ensuring consistent LED brightness.
Embedded PWM dimming circuit for LED brightness regulation. Robust protections including overcurrent, overheating, and short-circuit. Compact design with ceramic capacitor compatibility. Monolithic step-down DC-DC converter supporting up to 4 A constant current.
Ideal for industrial, laboratory, and commercial LED driver development. Complies with RoHS environmental standards.
This evaluation board is perfect for LED driver engineers and developers looking for precise and efficient LED current regulation with dimming capabilities. Explore more STMicroelectronics evaluation boards and LED development tools on EnvMart.
Explore more products in our LED Driver Development Kit category.
