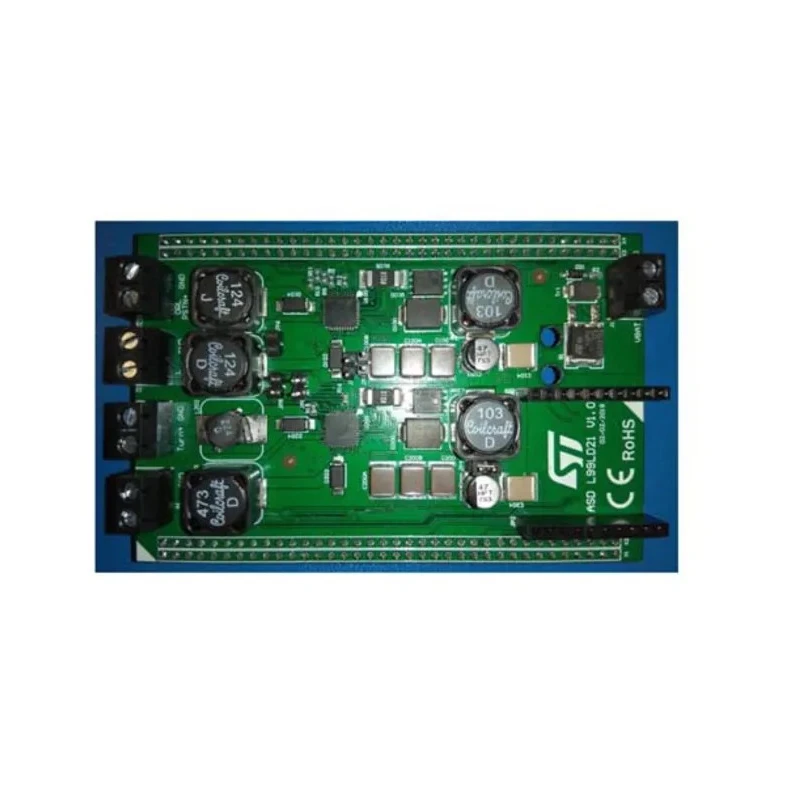

STMicroelectronics LED Driver DISCOVERY Development Board for SPC560B-DIS L99LD21-ADIS, 2 Soldered LED Drivers, 100x55 mm
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | L99LD21-ADIS |
| Standards/Approvals | RoHS |
| Kit Classification | Development Board |
| Featured Device | SPC560B-DIS |
| Kit Name | LED Driver DISCOVERY |
| Extension Headers | 2 x 36 pin - 100 mil |
Key Features
- Designed for driving four independent high brightness LED strings.
- Includes two soldered L99LD21 flexible LED drivers.
- Compact board size of 100 x 55 mm allows easy integration.
- Features two extension headers (2 x 36 pin - 100 mil) for swift connection to SPC560B-DIS board.
- Supports dedicated GUI control for LED driver evaluation.
- Ready-to-run application firmware available for fast development.
- Kit classified as development board suitable for automotive and industrial prototyping.
- RoHS compliant for environmentally safe use.
Product Description
STMicroelectronics L99LD21-ADIS LED Driver DISCOVERY Development Board for SPC560B-DIS provides a robust hardware platform for evaluating and prototyping advanced LED driver functions, specifically tailored for automotive front lighting systems. Featuring two soldered L99LD21 flexible LED drivers, the board enables simultaneous control of four high brightness LED strings, facilitating sophisticated lighting experiments and precise performance measurement.
The development board’s compact dimensions of 100 x 55 mm make it suitable for bench, laboratory or automotive prototyping environments. It is equipped with two extension headers (2 x 36 pin - 100 mil) for straightforward interfacing with the SPC560B-DIS discovery board, supporting rapid setup and integration. Users benefit from the board's dedicated GUI, providing intuitive configuration of LED parameters and operational modes, while free ready-to-run application firmware is available to further increase evaluation speed and flexibility.
Ideal for engineers working on automotive or industrial lighting solutions, this kit is classified as a development board and complies with RoHS environmental standards. It is particularly helpful for automotive lighting designers, embedded system engineers, and technical educators pursuing advanced LED driver projects.
Technical highlights include its ability to evaluate high brightness LED strings, flexible soldered L99LD21 drivers, and compatibility with the SPC560B-DIS microcontroller ecosystem for automotive-focused lighting algorithms and firmware research.
Applications include automotive front lighting prototyping, laboratory evaluation of LED driver chips, industrial LED lighting development, and educational use in embedded lighting curriculum. The board supports development and optimization of lighting control strategies, including thermal management, efficiency tuning, and system integration testing.
For further exploration of LED Driver Development Kits and application boards from STMicroelectronics, browse the Electronics Components and LED Driver categories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The board measures 100 x 55 mm, making it compact for easy integration into various prototyping environments.
It includes two soldered L99LD21 flexible LED drivers, allowing for the control of four independent high brightness LED strings.
This development board is designed for evaluating and prototyping advanced LED driver functions, particularly for automotive front lighting systems.
It features two extension headers (2 x 36 pin - 100 mil) for straightforward connection to the SPC560B-DIS board.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
Free ready-to-run application firmware is available, which facilitates fast development and evaluation of LED driver functions.
The board supports dedicated GUI control for intuitive configuration of LED parameters and operational modes, enhancing the evaluation process.
This kit is classified as a development board, suitable for automotive and industrial prototyping.
Applications include automotive front lighting prototyping, laboratory evaluation of LED driver chips, and industrial LED lighting development.
The LED Driver DISCOVERY Development Board is manufactured in Italy.
The featured device is the SPC560B-DIS, which is compatible with this LED driver evaluation kit.
It is particularly useful for automotive lighting designers, embedded system engineers, and technical educators involved in advanced LED driver projects.
