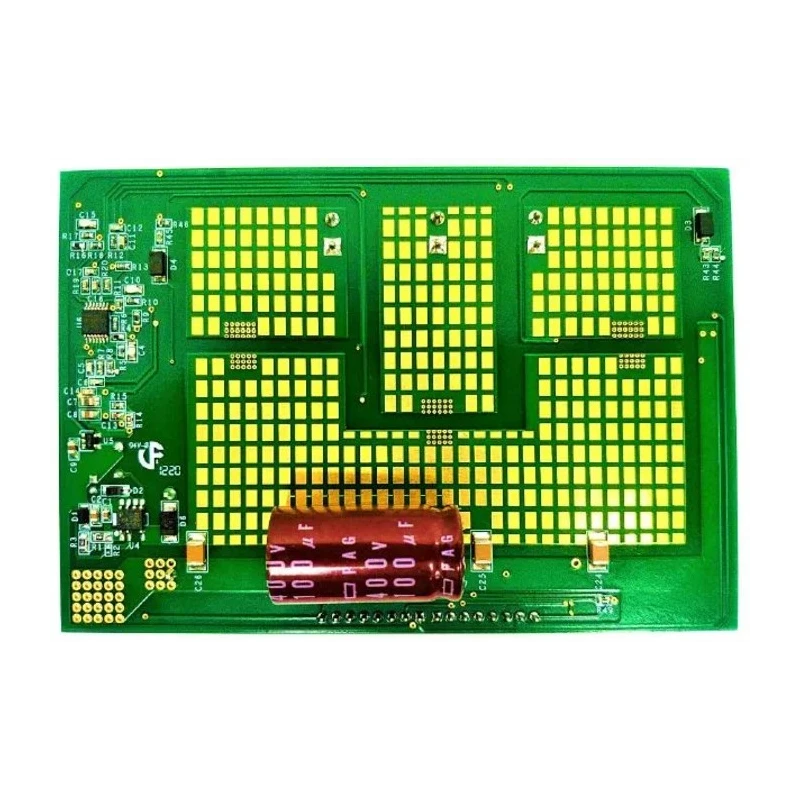

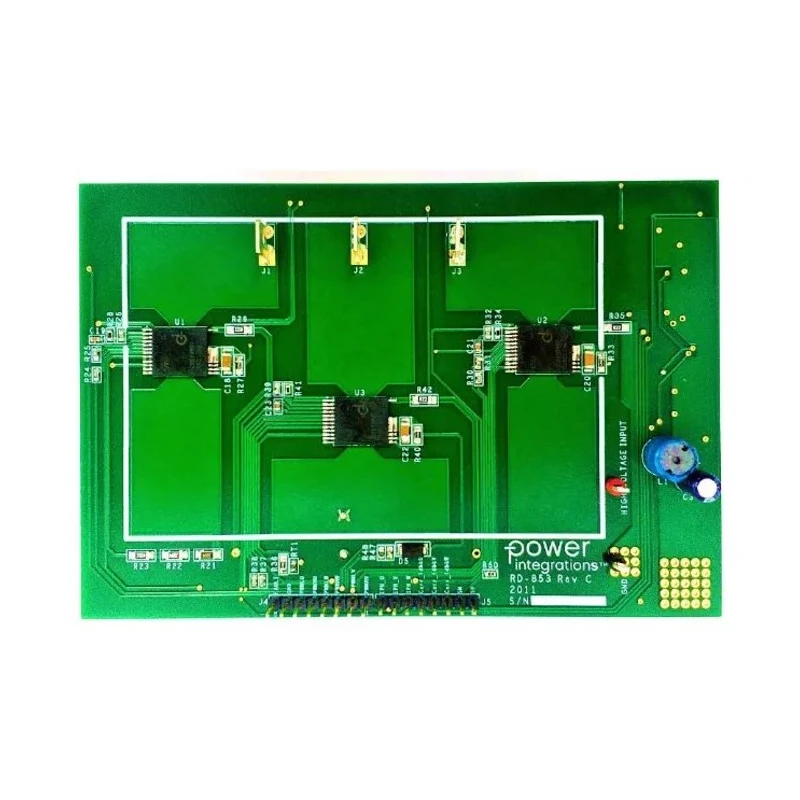

Power Integrations 3-Phase Inverter for BRD1265C, LNK3204D Brushless DC Motor RDK-853

Power Integrations RDK-853 3-Phase Inverter is a power management development kit tailored for brushless DC motor applications, using the bridge switch BLDC motor driver IC BRD1265C and link switch-TN2 LNK3204D. It delivers a 340 volt DC input with fully self-biased operation, suitable for thermally challenged environments.

The inverter supports field oriented operation ensuring efficient and precise motor control. The link switch device supplies the current sense amplifier and optionally provides external bias for the bridge switch, contributing to effective power management and fault prevention.

High integration of the bridge switch half-bridge motor driver IC facilitates comprehensive fault protection, enhancing reliability for industrial use.

System-level temperature monitoring is incorporated for operational safety, while a single wire status update communication bus simplifies system status monitoring and diagnostics.

This reference design kit is equipped with featured devices BRD1265C and LNK3204D, making it ideal for applications in electronic development, robotics, and motor control systems requiring robust and efficient power management solutions.

This inverter kit supports field oriented operation for brushless DC motors. The integrated link switch supplies current sense amplifier and provides external bias for bridge switch. Fault protection is achieved through the highly integrated bridge switch half-bridge motor driver IC.

System-level temperature monitoring enhances operational safety. Single wire status update communication bus allows streamlined monitoring. Reference design kit classification supports development applications. Features devices BRD1265C and LNK3204D for optimized control.

This product is suited for industrial, robotics, and Power Management development environments. EnvMart offers a range of Power Integrations products to support advanced electronic and motor control projects.
