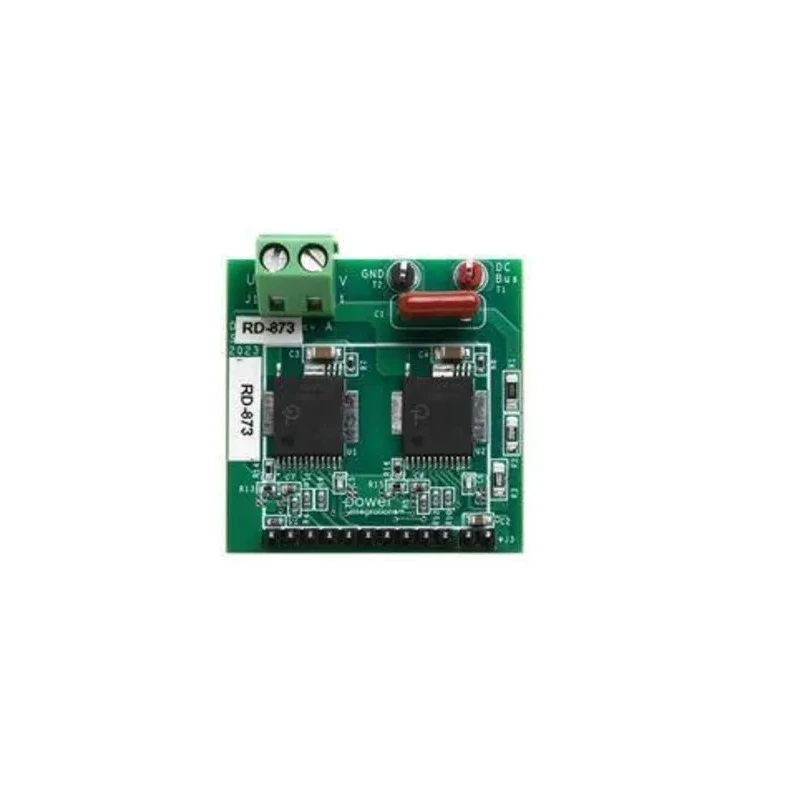

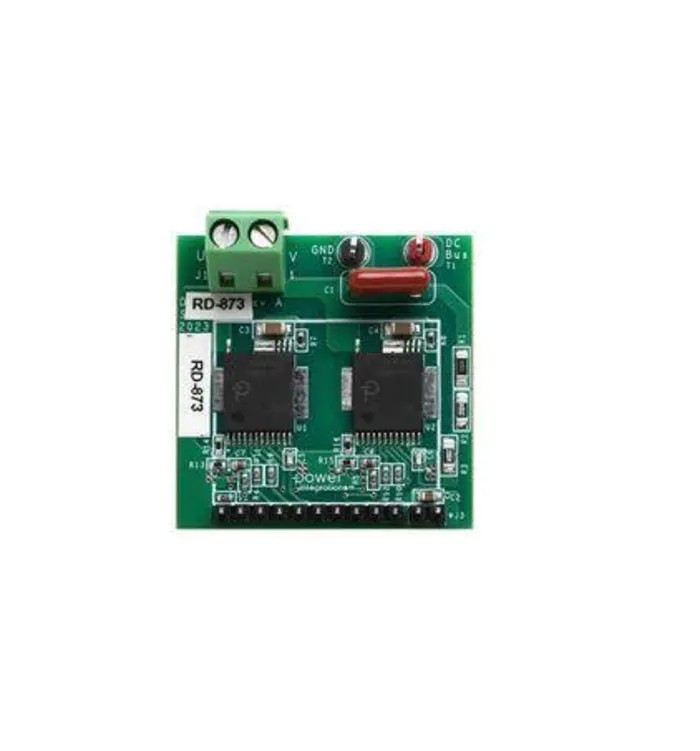

Power Integrations Development Board RDK-873 for BRD1260C High Voltage Single Phase BLDC Motor
Specifications
| Country of Origin | India |
|---|---|
| Brand | Power Integrations |
| Model | RDK-873 |
| For Use With | High Voltage Single Phase BLDC Motor |
| Kit Classification | Reference Design |
| Featured Device | BRD1260C |
| Kit Name | RDK-873 |
Key Features
- The board supports low-side external bias operation to minimize no-load input power consumption.
- Integrates 600 V FREDFETs with ultra-soft, fast recovery diodes for efficient switching.
- Utilizes the BRD1260C bridge switch for robust motor control performance.
- Achieves inverter efficiency up to 97% using a block commutation scheme.
- Offers fully self-biased operation eliminating the need for auxiliary power supply.
- Provides instantaneous phase current information output on each bridge switch device.
- Designed for development and testing of single-phase BLDC motor drives.
- Reference design kit classification facilitates rapid prototyping.
Product Description
Power Integrations RDK-873 is a development board designed as a reference design for high voltage single-phase BLDC motor applications utilizing the BRD1260C bridge switch device. It features integration with 600 V FREDFETs that include ultra-soft, fast recovery diodes to achieve efficient power switching and minimize losses. The design supports low-side external bias operation which significantly reduces no-load input power consumption, enhancing overall inverter efficiency.
With inverter efficiency reaching up to 97% through a block commutation control scheme, the RDK-873 enables highly efficient motor operation. This board is fully self-biased and does not require any auxiliary power supply, simplifying system design and reducing component count. Instantaneous phase current information is available on each bridge switch device, providing valuable feedback for precise motor control.
This development kit is classified as a reference design, offering engineers a practical tool for developing and testing single-phase BLDC motor drives in industrial, laboratory, and power electronics applications. It is an integrated solution aimed at accelerating the development process and improving performance in high voltage BLDC motor control systems.
The board supports low-side external bias operation to minimize no-load input power consumption. Integrates 600 V FREDFETs with ultra-soft, fast recovery diodes for efficient switching. Utilizes the BRD1260C bridge switch for robust motor control performance.
Achieves inverter efficiency up to 97% using a block commutation scheme. Offers fully self-biased operation eliminating the need for auxiliary power supply. Provides instantaneous phase current information output on each bridge switch device.
Designed for development and testing of single-phase BLDC motor drives. Reference design kit classification facilitates rapid prototyping. Suitable for industrial motor control and power electronics development. Compact and integrated solution for high voltage BLDC motor drives.
Explore the full range of Power Integrations development boards and motor control solutions at EnvMart for your industrial and research needs.
