STMicroelectronics 1500 W Motor Control Power Board Based on STGIB15CH60TS-L SLLIMM 2nd Series IPM STEVAL-IPM15B

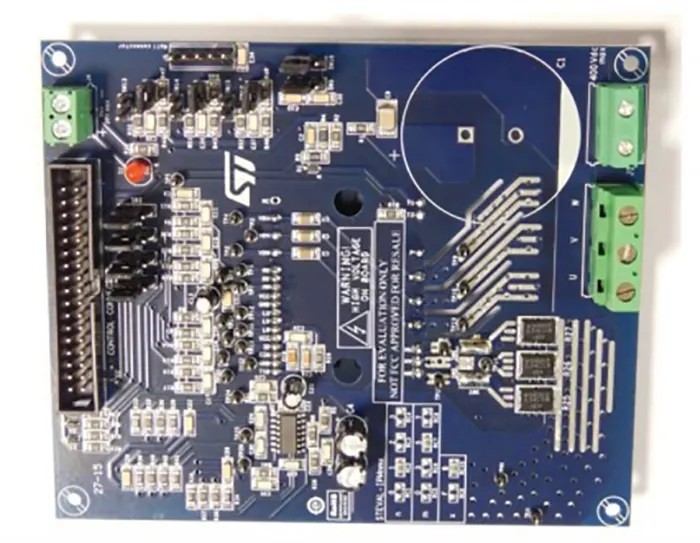

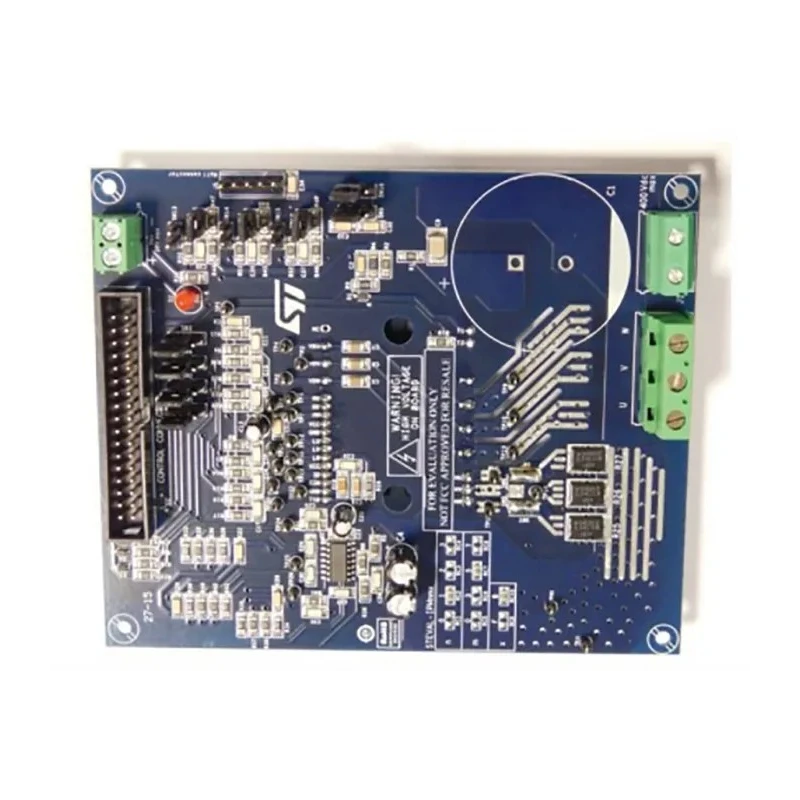

STMicroelectronics STEVAL-IPM15B is a 1500 W motor control power board based on the STGIB15CH60TS-L SLLIMM 2nd Series Intelligent Power Module (IPM). This compact evaluation board offers an affordable and efficient solution for high power three-phase motor drives applicable in various industries, including white goods, HVAC systems, compressors, power fans, and high-end power tools.

The integrated IPM contains rugged short-circuit resistant IGBTs, undervoltage lockout, smart shutdown features, internal temperature sensing with an NTC thermistor, and robust overcurrent protection. The board offers a minimal bill of materials and compact size while maintaining high efficiency and reliability.

Key features include interface circuits for BUS and Vcc connections, bootstrap and snubber capacitors, hardware short-circuit protection, fault event signaling, and temperature monitoring. Designed to work flexibly with single or three-shunt current sensing configurations, it provides options for using either onboard operational amplifiers or those embedded on the MCU for current feedback.

The STEVAL-IPM15B is optimized for field-oriented control (FOC), enabling precise and rapid conditioning of motor current feedback signals important for modern motor drive applications. It is fully compatible with ST's STM32-based control boards, completing a powerful development platform for motor control projects.

This power board is suitable for driving motors in white goods, air conditioners, compressors, and power fans. Features integrated short-circuit rugged IGBTs with undervoltage lockout and overcurrent protection. Includes temperature sensing with internal NTC and fault event signaling for enhanced safety and reliability.

Supports single or three-shunt current sensing with onboard and MCU-embedded op-amps for flexible control. Designed for field-oriented control (FOC) with accurate and fast current feedback conditioning. Compatible with STM32-based control boards for a comprehensive motor control platform.

This evaluation board, made in Italy, adheres to RoHS standards, ensuring compliance with environmental and safety regulations. The STEVAL-IPM15B is ideal for industrial, laboratory, HVAC, air conditioning, and power tool motor control development.
