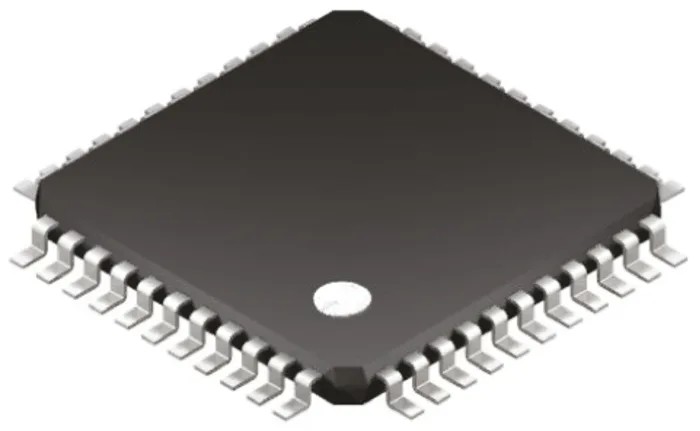

Microchip 16 bit Digital Signal Processor 60 MHz 512kB FLASH 44-Pin TQFP DSPIC33EP512GM604-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | DSPIC33EP512GM604-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 48kB |
| ADC Resolution | 19bit |
| Timer Resolution | 32bit |
| Pin Count | 44 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Program Memory Size | 512kB |
| Maximum Clock Frequency | 60MHz |
| Number of Timers | 1 |
| Instruction Set Architecture | Harvard |
| Program Memory Type | FLASH |
| Number of ADCs | 2 |
| Device Million Instructions per Second | 70MIPS |
| Number of PWM Units | 1 |
| PWM Resolution | 16bit |
| ADC Channels | 18 |
| Number of PWM Channels | 12 |
Key Features
- Maximum clock frequency of 60 MHz delivers efficient processing speed.
- 512kB FLASH program memory with 48kB RAM size ensures ample space for applications.
- Features 12 PWM channels and 2 ADCs for versatile signal control.
- Supports Harvard instruction set architecture for optimized performance.
- Operates within temperature range from -40°C to 85°C suitable for various environments.
- Surface mount type package with dimensions 10 mm × 10 mm × 1.05 mm.
- Compliant with Automotive Standard AEC-Q100 for reliability in automotive applications.
- Integrated timer with 32-bit resolution and 19-bit ADC resolution enhances precision control.
Product Description
Microchip DSPIC33EP512GM604-I/PT is a 16-bit Digital Signal Processor designed for demanding industrial and automotive applications requiring robust performance and versatile peripheral integration. It operates at a maximum clock frequency of 60 MHz and delivers up to 70 Million Instructions Per Second (MIPS) using the Harvard instruction set architecture.
This processor features 512kB FLASH program memory alongside 48kB of RAM, providing extensive memory resources for complex embedded applications. The 44-Pin Thin Quad Flat Package (TQFP) supports surface mount technology, offering a compact 10 mm by 10 mm footprint with a height of 1.05 mm for efficient PCB layout.
The DSPIC33EP512GM604-I/PT includes 12 PWM channels and 2 ADC units with 18 ADC channels and 19-bit resolution, enabling precise analog signal acquisition and sophisticated pulse width modulation control. It operates reliably within an industrial temperature range of -40°C to 85°C and adheres to the trusted Automotive Standard AEC-Q100, making it suitable for automotive and harsh environment applications.
Additional integrated features include a 32-bit timer resolution and multiple PWM units to enhance timing and control capabilities. The surface mount package and extensive peripheral set allow efficient integration into complex systems such as industrial automation, automotive control units, instrumentation, and digital signal processing tasks.
Innovators and engineers deploying embedded control solutions can leverage the Microchip DSPIC33EP512GM604-I/PT for development of high-performance embedded systems with its powerful CPU speed and comprehensive feature set.
Maximum clock frequency of 60 MHz delivers efficient processing speed. 512kB FLASH program memory with 48kB RAM size ensures ample space for applications. Features 12 PWM channels and 2 ADCs for versatile signal control.
Supports Harvard instruction set architecture for optimized performance. Operates within temperature range from -40°C to 85°C suitable for various environments. Surface mount type package with dimensions 10 mm × 10 mm × 1.05 mm.
Compliant with Automotive Standard AEC-Q100 for reliability in automotive applications. Integrated timer with 32-bit resolution and 19-bit ADC resolution enhances precision control. Explore other Digital Signal Processors and embed advanced control capabilities in your industrial, automotive, and instrumentation projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the DSPIC33EP512GM604-I/PT is 60 MHz, enabling efficient processing speed for various applications.
It features 512kB of FLASH program memory, providing ample space for complex applications.
The operating temperature range is from -40°C to 85°C, making it suitable for various environmental conditions.
This model includes 12 PWM channels, allowing for versatile signal control in applications.
The processor has an ADC resolution of 19 bits, which enhances the precision of analog signal acquisition.
It comes in a 44-Pin Thin Quad Flat Package (TQFP), which supports surface mount technology.
The dimensions are 10 mm x 10 mm with a height of 1.05 mm, facilitating efficient PCB layout.
The minimum supply voltage is 3V and the maximum supply voltage is 3.6V.
It features 2 ADC units, which provide 18 ADC channels for effective signal processing.
The DSPIC33EP512GM604-I/PT is compliant with Automotive Standard AEC-Q100, ensuring reliability in automotive applications.
It includes a timer with a 32-bit resolution, enhancing timing and control capabilities.
The processor supports the Harvard instruction set architecture, which optimizes performance for various applications.
