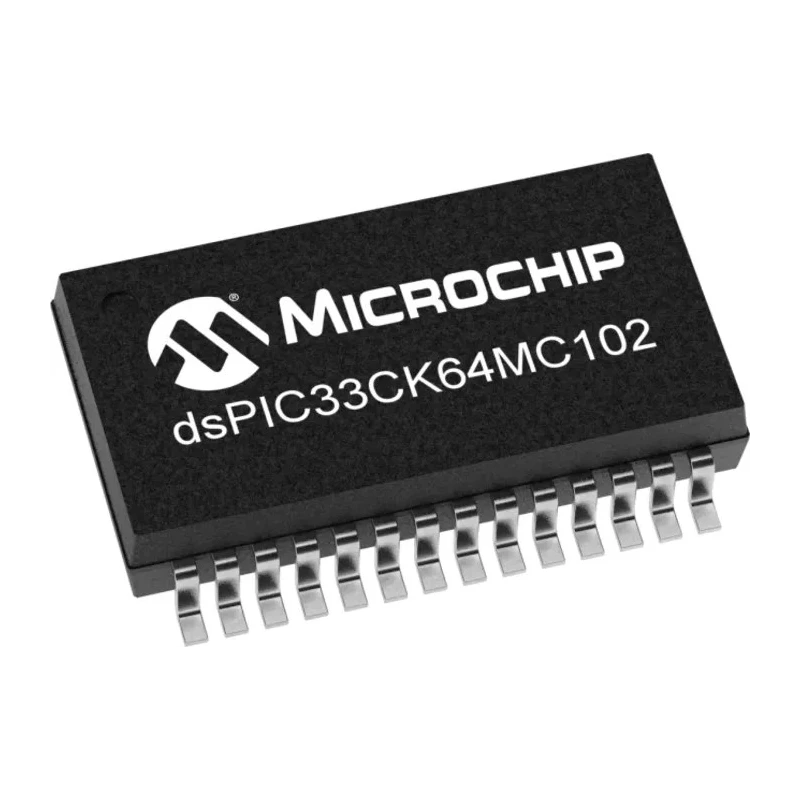

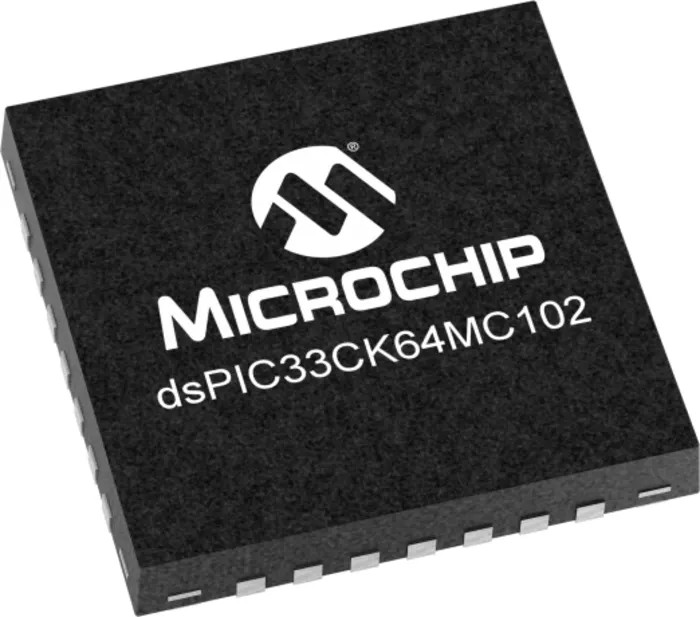

Microchip Digital Signal Processor 16 bit, 100 MHz, 64kB FLASH, 8kB RAM, SSOP/UQFN 28-Pin DSPIC33CK64MC102-I/2N

Free Delivery in India | Lowest Global Shipping Charges

Microchip Digital Signal Processor 16 bit, 100 MHz, 64kB FLASH, 8kB RAM, SSOP/UQFN 28-Pin DSPIC33CK64MC102-I/2N

Name: Microchip Digital Signal Processor 16 bit, 100 MHz, 64kB FLASH, 8kB RAM, SSOP/UQFN 28-Pin DSPIC33CK64MC102-I/2N
Brand: Microchip
SKU: 422693
Price: 1.97 USD
Availability: InStock



Category Digital Signal Processor Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	500μm
Length	6mm
Model	DSPIC33CK64MC102-I/2N
Width	6mm
Series	dsPIC33CK64MC10X
Maximum Operating Temperature	150°C
Package Type	SSOP/UQFN
Minimum Operating Temperature	-40°C
Ram size	8kB
ADC Resolution	12bit
Interface Type	FWI
Pin Count	28
Automotive Standard	AEC-Q100
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	3V
Program Memory Size	64kB
Maximum Clock Frequency	100MHz
Instruction Set Architecture	RISC, DSP
Program Memory Type	FLASH
Device Million Instructions per Second	100MIPS
Number of PWM Units	4

Key Features

Operates with a maximum clock frequency of 100 MHz.
Features 64kB of program flash memory and 8kB of data SRAM.
Incorporates a 16 bit data bus width and a RISC DSP instruction set architecture.
Supports 4 PWM units and an ADC resolution of 12 bit for high precision control.
Designed for automotive and motor control applications with AEC-Q100 standard compliance.
Wide operating temperature range from -40°C to 150°C enables robust industrial use.
Package type is SSOP/UQFN with 28 pins, measuring 6 mm length and width.
Includes internal op amps connected to ADC module for advanced signal processing.

Product Description

The Microchip DSPIC33CK64MC102-I/2N is a 16 bit digital signal processor designed for demanding applications that require high performance and reliability.

With a maximum clock frequency of 100 MHz and a program memory size of 64kB FLASH, this processor can execute complex digital signal processing tasks efficiently. The 8kB RAM provides sufficient space for data processing.

This device features a RISC DSP instruction set and a 16 bit data bus width, enabling fast and efficient execution of DSP algorithms. It includes four PWM units with up to 2 ns resolution, suitable for precise motor control and industrial automation.

The package type is SSOP/UQFN, with a compact 28-pin layout measuring 6 mm by 6 mm and a height of 500 microns, ensuring easy integration into compact systems. It operates reliably in a wide temperature range from -40°C to 150°C, meeting automotive standard AEC-Q100 requirements for robust performance.

Additional features include up to three integrated operational amplifiers connected internally to the ADC module with 12 bit resolution, enhancing analog signal conditioning capabilities.

This DSP is ideal for automotive, industrial motor drives, high-performance robotics, and other industrial control applications where fast digital signal processing combined with robust peripherals is critical.

Operates with maximum clock frequency of 100 MHz. 64kB program flash memory with ECC and fault injection testing. 8kB data SRAM with built-in self-test functionality. Four PWM pairs with 2 ns resolution for precise output control.

Up to three internal op amps connected to ADC module supporting 12 bit resolution. Wide operating temperature range from -40°C to 150°C. 28-pin SSOP/UQFN package with compact 6 mm × 6 mm footprint. Meets automotive AEC-Q100 standard for reliability.

Explore more Microchip Digital Signal Processors and find the perfect solution for your industrial and automotive electronics projects on EnvMart.
