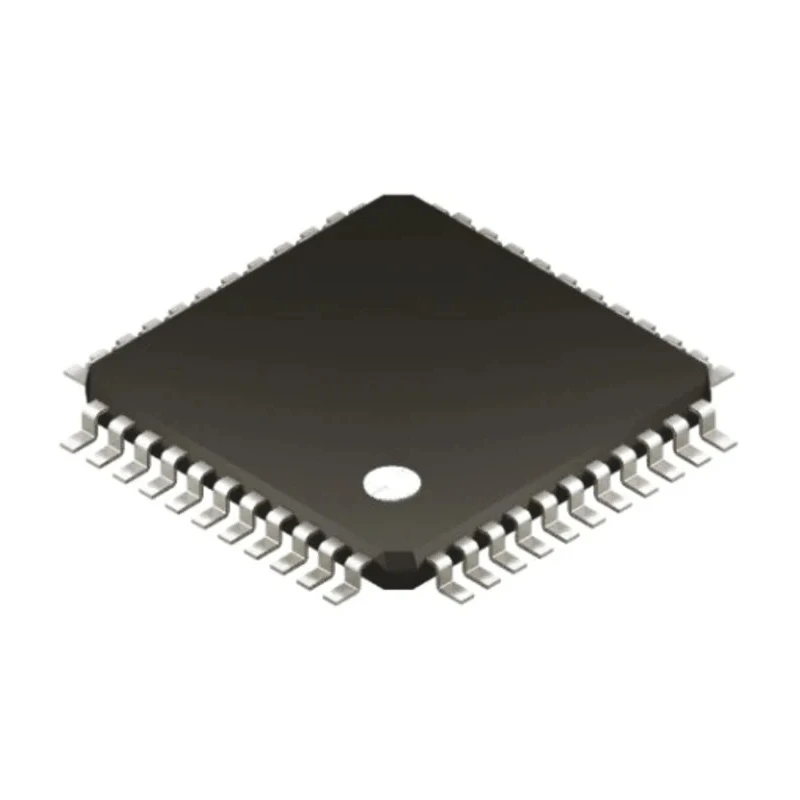

Microchip 16 bit Digital Signal Processor 140 MHz 128kB FLASH 44-Pin TQFP DSPIC33EP128GM604-I/PT

Microchip DSPIC33EP128GM604-I/PT is a high-performance 16-bit Digital Signal Processor designed for complex control applications. Featuring a maximum clock frequency of 140 MHz and 128kB of FLASH program memory, it delivers up to 70 million instructions per second (MIPS), making it suitable for diverse industrial and automotive signal processing tasks.

This DSP integrates 16kB of RAM, a 16-bit data bus width, and a DSP instruction set architecture optimizing real-time processing efficiency. The device includes 18 analog-to-digital converter (ADC) channels with 12-bit resolution and 12 PWM channels distributed across 8 units, allowing for versatile input/output signal modulation.

The processor supports a supply voltage range between 3 V and 3.6 V and employs a surface mount TQFP package with 44 pins, having compact dimensions of 10 mm by 10 mm and a height of 1.05 mm. It operates reliably across a temperature range of -40°C to 85°C aligned with automotive standards, specifically meeting AEC-Q100 certification requirements for automotive use.

Additional integrated features include power-on reset (POR), power-up timer (PWRT), brown-out reset (BOR), extended watchdog timer (WDT), in-circuit serial programming (ICSP), and in-circuit debugging (ICD). The device architecture supports up to 13 timers with 32-bit resolution, facilitating precision timing and control in applications.

Processor delivers up to 70 MIPS performance for efficient digital signal control. Equipped with 16kB RAM and 18 ADC channels with 12-bit resolution for detailed data conversion. Operating voltage ranges from 3 V to 3.6 V with surface mount package type.

Operates over a wide temperature range from -40°C to 85°C suitable for automotive applications. Includes 12 PWM channels and 13 timers with 32-bit resolution for precise control tasks. Package dimensions are compact with 10 mm length, width, and 1.05 mm height.

Designed with AEC-Q100 automotive standard for enhanced reliability.

This Digital Signal Processor is ideal for industrial, automotive, laboratory, and manufacturing applications requiring robust embedded control and precise signal processing capabilities. The compact package enables integration into densely populated PCB layouts while maintaining high-performance operation.
