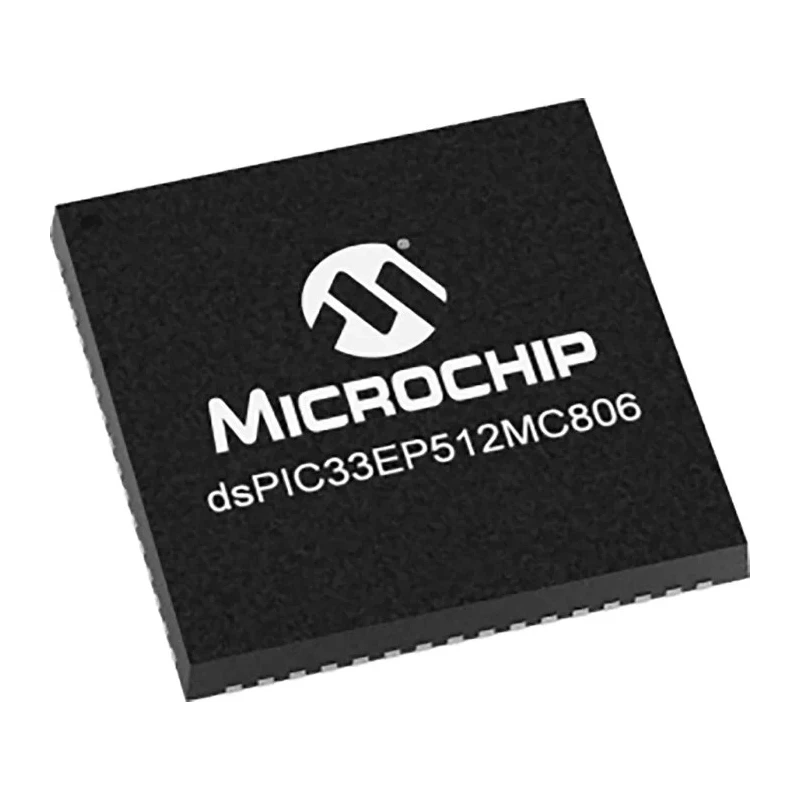

Microchip 16 bit Digital Signal Processor 60 MHz 536kB FLASH 64-Pin QFN DSPIC33EP512MC806-I/MR

Microchip DSPIC33EP512MC806-I/MR is a 16-bit Digital Signal Processor (DSP) designed for high-performance embedded applications. Operating at a maximum clock frequency of 60 MHz, this device incorporates 536kB of FLASH program memory, offering significant storage capacity for complex firmware. Packaged in a compact 64-pin QFN surface mount format, it suits space-constrained electronic designs.

The processor features a modified Harvard architecture with a 16-bit wide data path and 24-bit wide instructions, optimized for efficient computational throughput. It provides 70 MIPS (Million Instructions Per Second) capability, enhancing processing speed for demanding DSP tasks.

This DSP includes versatile peripherals such as 2 ADC converters with 24 ADC channels and 19-bit resolution, 16 PWM channels spanning one PWM unit with 8.32 ns resolution, and multiple timers with 32-bit timer resolution and two timers in total. It also supports an automotive-grade qualification with AEC-Q100 standard, validating its suitability for automotive environments.

Designed to operate within a voltage range of 3.6 V and temperature range of -40°C to 85°C, this DSP ensures reliable performance in harsh industrial and automotive settings. The compact dimensions of 9 mm length by 9 mm width and a height of 950 μm facilitate integration into dense multi-layer circuit boards.

Microchip's dsPIC33E family enables developers to build precision motor control systems and complex embedded control applications that require advanced digital signal processing alongside traditional microcontroller capabilities.

Maximum clock frequency is 60 MHz ensuring efficient processing speed. Operates with a data bus width of 16 bit for precise data handling. Integrated 52kB RAM enhances memory availability for complex computations. Includes 2 ADCs and 16 PWM channels for versatile analog and pulse-width modulation functions.

Designed with a program memory size of 536kB using FLASH technology for reliable storage. Supports automotive standard AEC-Q100 for quality and durability assurance. Compact dimensions with length and width of 9 mm maintaining a low form factor.

Capable of operating within temperature range from -40°C to 85°C for robust performance. Uses a surface mount type with a QFN package ensuring ease of integration in PCB design. Features 24 ADC channels and a 19 bit ADC resolution for high precision signal processing.

This Digital Signal Processor is suitable for applications in industrial automation, automotive systems, embedded communications, and motor control, offering a blend of microcontroller flexibility and DSP power.
