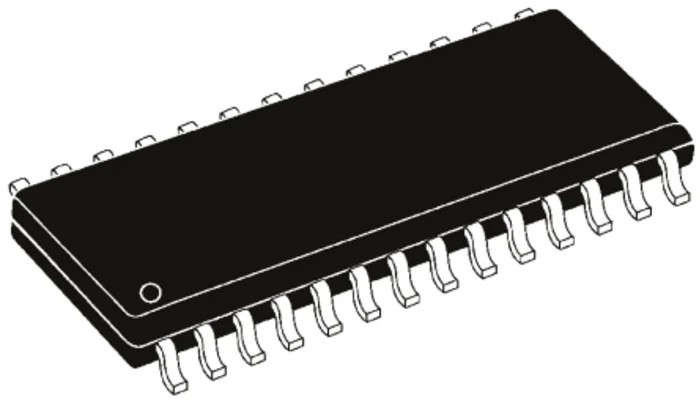

Microchip dsPIC33FJ 16-Bit Digital Signal Processor 40 MHz 128kB FLASH 28-Pin SOIC DSPIC33FJ128GP802-E/SO
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 2.35mm |
| Length | 17.9mm |
| Model | DSPIC33FJ128GP802-E/SO |
| Width | 7.5mm |
| Mount Type | Surface |
| Core | dsPIC33F |
| Series | dsPIC33FJ |
| Maximum Operating Temperature | 125°C |
| Number Of Cores | 1 |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 16.384kB |
| ADC Resolution | 12bit |
| Timer Resolution | 16bit |
| Standards/Approvals | IEC 60730, VDE |
| Pin Count | 28 |
| Automotive Standard | AEC-Q100 Rev G Grade 0 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 40MHz |
| Number of Timers | 5 |
| Instruction Set Architecture | Harvard |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 40MIPS |
| PWM Resolution | 16bit |
| ADC Channels | 10 |
| Number of PWM Channels | 4 |
| Numeric and Arithmetic Format | 16 x 16, 16 Bit |
Key Features
- Maximum clock frequency of 40 MHz enabling efficient signal processing.
- 16-bit data bus width and Harvard architecture for high-speed operations.
- 128kB FLASH program memory with 16.384 kB RAM for complex applications.
- Surface mount SOIC package with 28 pins for compact design.
- Operating temperature range from -40°C to 125°C suitable for industrial environments.
- Includes 10 ADC channels with 12-bit resolution for precise analog inputs.
- Supports 4 PWM channels and 5 timers with 16-bit resolution for control applications.
- Low supply voltage range of 3V to 3.6V for energy efficiency.
Product Description
Microchip DSPIC33FJ128GP802-E/SO is a high-performance 16-bit Digital Signal Processor designed for precision and efficiency in industrial, laboratory, and embedded control applications. It operates at a maximum clock frequency of 40 MHz, delivering up to 40 MIPS performance suited for digital filtering, audio processing, and real-time control systems.
This DSP features a Harvard architecture with a 16-bit data bus, 128kB of FLASH program memory, and 16.384 kB of RAM, enabling the execution of complex algorithms. The device comes in a compact 28-pin SOIC surface-mount package with dimensions of length 17.9 mm, width 7.5 mm, and height 2.35 mm, facilitating integration into space-constrained designs.
It supports a wide operating temperature range from -40°C to 125°C, making it suitable for harsh industrial environments. The DSP provides 10 ADC channels with 12-bit resolution for accurate analog signal acquisition and 4 PWM channels alongside 5 timers for versatile control tasks. Supply voltage operates from 3V to 3.6V, ensuring low power consumption.
The product fulfills stringent IEC 60730 and VDE standards and automotive AEC-Q100 Rev G Grade 0 certification, attesting to its robustness and reliability in automotive applications. Manufactured in Thailand, it supports demanding use cases such as motor controls, digital power supplies, signal processing, and embedded control in manufacturing and automation industries.
Maximum clock frequency of 40 MHz enabling efficient signal processing. 16-bit data bus width and Harvard architecture for high-speed operations. 128kB FLASH program memory with 16.384 kB RAM for complex applications. Surface mount SOIC package with 28 pins for compact design.
Operating temperature range from -40°C to 125°C suitable for industrial environments. Includes 10 ADC channels with 12-bit resolution for precise analog inputs. Supports 4 PWM channels and 5 timers with 16-bit resolution for control applications.
Low supply voltage range of 3V to 3.6V for energy efficiency. Meets IEC 60730 and VDE standards and automotive AEC-Q100 Grade 0 reliability. Manufactured in Thailand assuring quality and consistency. Explore the full range of Microchip Digital Signal Processors and related semiconductor components on EnvMart for advanced industrial solutions.
