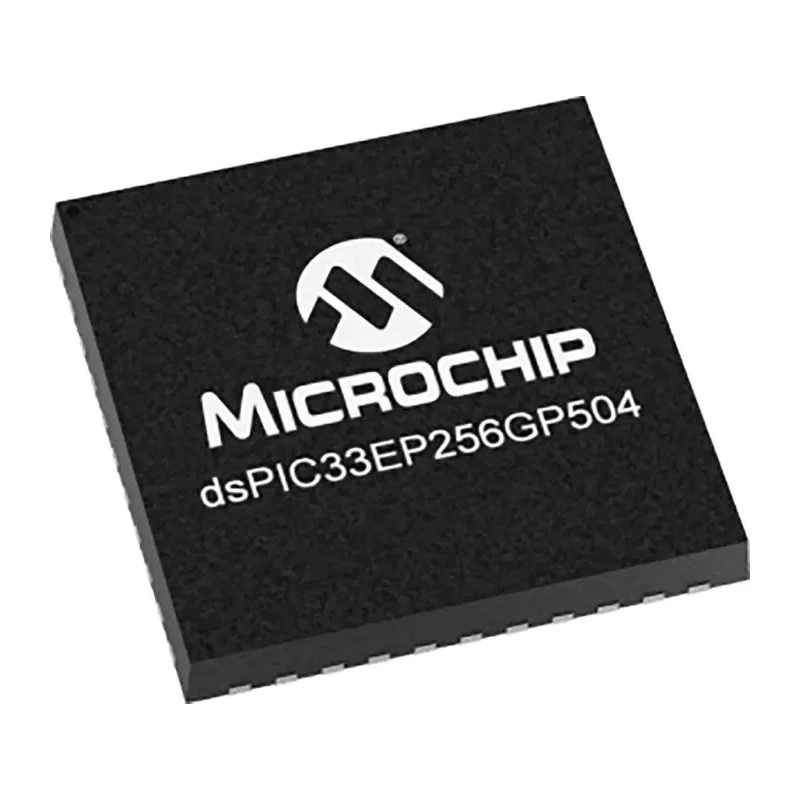

Microchip 16 bit Digital Signal Processor 70 MHz 256kB FLASH 44-Pin TQFP DSPIC33EP256GP504-I/PT

Free Delivery in India | Lowest Global Shipping Charges

Microchip 16 bit Digital Signal Processor 70 MHz 256kB FLASH 44-Pin TQFP DSPIC33EP256GP504-I/PT

Name: Microchip 16 bit Digital Signal Processor 70 MHz 256kB FLASH 44-Pin TQFP DSPIC33EP256GP504-I/PT
Brand: Microchip
SKU: 415894
Price: 7.08 USD
Availability: InStock



Category Digital Signal Processor Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1.05mm
Length	10mm
Model	DSPIC33EP256GP504-I/PT
Width	10mm
Mount Type	Surface
Series	DSPIC33EP256GP504
Maximum Operating Temperature	85°C
Package Type	TQFP
Minimum Operating Temperature	-40°C
Ram size	32kB
ADC Resolution	12bit
Timer Resolution	32bit
Pin Count	44
Automotive Standard	AEC-Q100
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	3V
Program Memory Size	256kB
Maximum Clock Frequency	70MHz
Number of Timers	2
Instruction Set Architecture	Harvard
Program Memory Type	FLASH
Number of ADCs	1
Device Million Instructions per Second	70MIPS
Number of PWM Units	3
PWM Resolution	16bit
ADC Channels	9
Numeric and Arithmetic Format	ALU

Key Features

Operates at a maximum clock frequency of 70 MHz, delivering 70 MIPS performance.
Features 16-bit wide data path and Harvard architecture instruction set.
Includes 256kB program flash memory with 32kB RAM size.
Equipped with 1 ADC, 9 ADC channels, and 12-bit ADC resolution.
Supports 3 PWM units with 16-bit resolution and 2 timers with 32-bit timer resolution.
Designed using Surface mount type with TQFP package.
Pin count consists of 44 pins in a compact 10mm x 10mm x 1.05mm form factor.
Functional in minimum operating temperature of -40°C up to a maximum of 85°C.

Product Description

Microchip DSPIC33EP256GP504-I/PT 16 bit Digital Signal Processor offers robust performance with a maximum clock frequency of 70 MHz and efficient 256kB FLASH memory storage. This digital signal controller uses a modified Harvard architecture with a 16-bit wide data path and 24-bit wide instructions to optimize processing speeds reaching up to 70 MIPS.

Designed for applications requiring high precision and speed, it features several integrated peripherals including a 12-bit ADC with 9 ADC channels, 3 PWM units with 16-bit resolution, and 2 high-resolution timers of 32-bit each. These features provide precise control and measurement capabilities critical in embedded systems, automotive controls, and industrial automation.

The processor is built with a compact 44-Pin TQFP surface mount package, measuring 10 mm in length and width and 1.05 mm in height, enabling integration into tight PCB layouts. It operates reliably across an extended temperature range from -40°C to +85°C, making it suitable for demanding environments and automotive applications compliant with AEC-Q100 standards.

With a program memory size of 256kB FLASH and 32kB RAM, this DSPIC33EP256GP504-I/PT device supports complex application programming and real-time processing. The numeric arithmetic format includes ALU operations, 16x16 integer multiply, and advanced instructions for efficient data handling.

Operates at 3.0V to 3.6V supply voltage for flexibility in embedded system voltage designs. Surface mount type package simplifies automated PCB manufacturing and assembly. Suitable for automotive, industrial control, signal processing, and embedded applications requiring high-speed DSP functionality.

This digital signal processor is ideal for engineers and developers seeking a reliable, high-performance controller with integrated analog peripherals for advanced measurement and control tasks. Explore the robust capabilities of Microchip Digital Signal Processors in electronics design on EnvMart.
