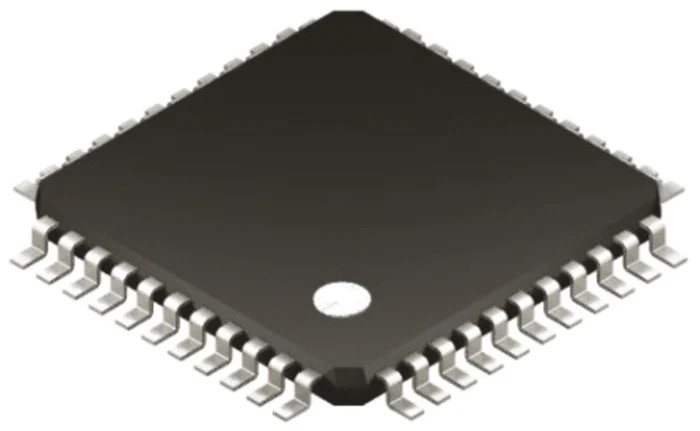

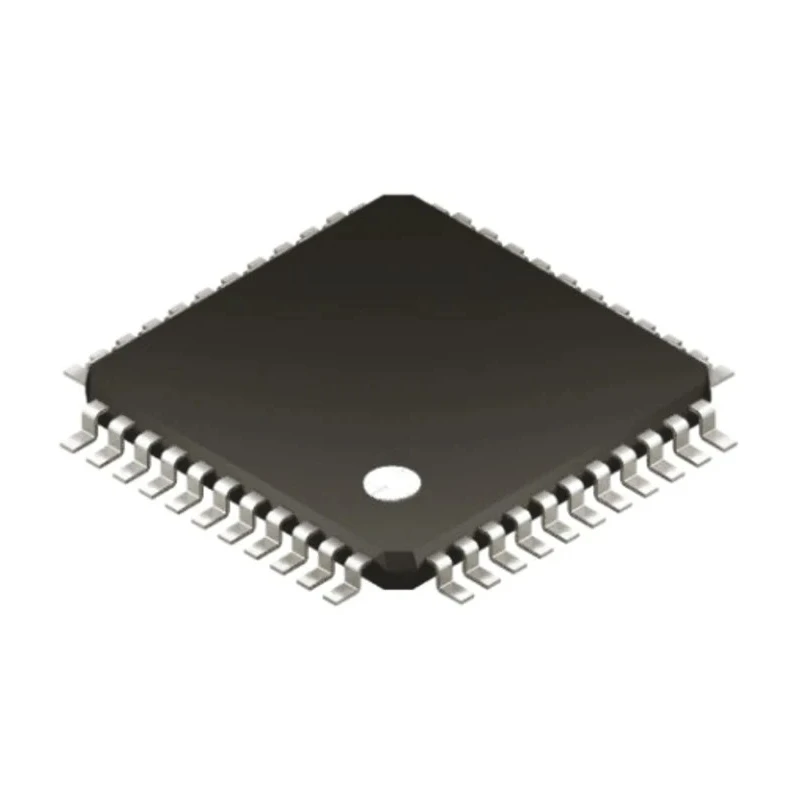

Microchip 16 bit Digital Signal Processor 140 MHz 128kB FLASH 44-Pin TQFP DSPIC33EP128GM604-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | DSPIC33EP128GM604-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| ADC Resolution | 12bit |
| Timer Resolution | 32bit |
| Pin Count | 44 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 140MHz |
| Number of Timers | 13 |
| Instruction Set Architecture | DSP |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 70MIPS |
| Number of PWM Units | 8 |
| PWM Resolution | 16bit |
| ADC Channels | 18 |
| Number of PWM Channels | 12 |
Key Features
- Operates at a maximum clock frequency of 140 MHz for high-performance processing.
- Incorporates 128kB of FLASH program memory and 16kB RAM for extensive data handling.
- Supports 70 MIPS with a 16-bit data bus architecture.
- Equipped with 18 ADC channels with 12-bit resolution for precise analog-to-digital conversion.
- Comes in a 44-pin TQFP package with compact dimensions of 10mm x 10mm x 1.05mm height.
- Includes 12 PWM channels and multiple timers for complex control functionalities.
- Designed to operate in a temperature range of -40°C to 85°C, suitable for automotive applications (AEC-Q100 standard).
- Mount type is surface mount, ensuring compatibility with modern PCB designs.
Product Description
Microchip DSPIC33EP128GM604-I/PT is a 16-bit Digital Signal Processor designed to deliver robust performance at a maximum clock frequency of 140 MHz. Featuring 128kB of FLASH program memory and 16kB RAM, this DSP enables high-speed data processing and real-time control for complex embedded applications.
This device integrates an extensive set of peripherals including 18 analog-to-digital converters (ADC) channels with 12-bit resolution, 12 pulse width modulation (PWM) channels, and 13 timers, providing advanced timing and control options.
Packaged in a compact 44-pin Thin Quad Flat Package (TQFP) with dimensions of 10mm by 10mm and a height of 1.05mm, it is suitable for space-constrained environments. Its surface mount (SMT) package allows for efficient manufacturing and PCB integration.
Operating temperature range of -40°C up to 85°C, it complies with the automotive standard AEC-Q100, making it ideal for automotive and industrial control applications requiring reliability under harsh conditions.
Utilizing a 16-bit data bus and DSP architecture, the DSPIC33EP128GM604-I/PT achieves processing speeds of up to 70 MIPS, suitable for demanding digital signal processing tasks in industrial, automotive, and embedded systems.
The program memory is of FLASH type, allowing in-circuit serial programming (ICSP) and easy firmware upgrades, supporting rapid development and prototyping. Operates at 140 MHz maximum clock frequency for superior performance.
128kB FLASH program memory with 16kB RAM provides ample space for applications. Single ADC with 18 channels and 12-bit resolution enables accurate sensor interfacing. Multiple PWM channels and timers for complex signal generation and motor control.
Compact 44-pin TQFP package facilitates integration into compact system designs. Automotive grade compliance ensures reliability for vehicle electronics. Surface mount type for modern PCB assembly technologies. Wide operating temperature range supports a variety of industrial environments.
This product is well suited for industrial, automotive, laboratory, and embedded applications requiring precise digital signal control and fast processing. Explore other Microchip Digital Signal Processors and semiconductor components on EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 140 MHz, enabling high-performance processing capabilities.
It features 128kB of FLASH program memory, which allows for extensive data handling and firmware upgrades.
This unit incorporates 18 ADC channels with a 12-bit resolution for precise analog-to-digital conversion.
The operating temperature range is from -40°C to 85°C, making it suitable for automotive and industrial applications.
This processor comes in a 44-pin TQFP package with compact dimensions of 10mm x 10mm x 1.05mm height.
It includes 12 PWM channels, which facilitate complex signal generation and control functionalities.
This digital signal processor is equipped with 16kB of RAM for extensive data processing.
It complies with the AEC-Q100 automotive standard, ensuring reliability for vehicle electronics.
The maximum supply voltage for this model is 3.6V, while the minimum supply voltage is 3V.
This processor integrates 13 timers, providing advanced timing and control options.
It achieves a performance of 70 MIPS, suitable for demanding digital signal processing tasks.
This unit features a surface mount type, ensuring compatibility with modern PCB designs.
