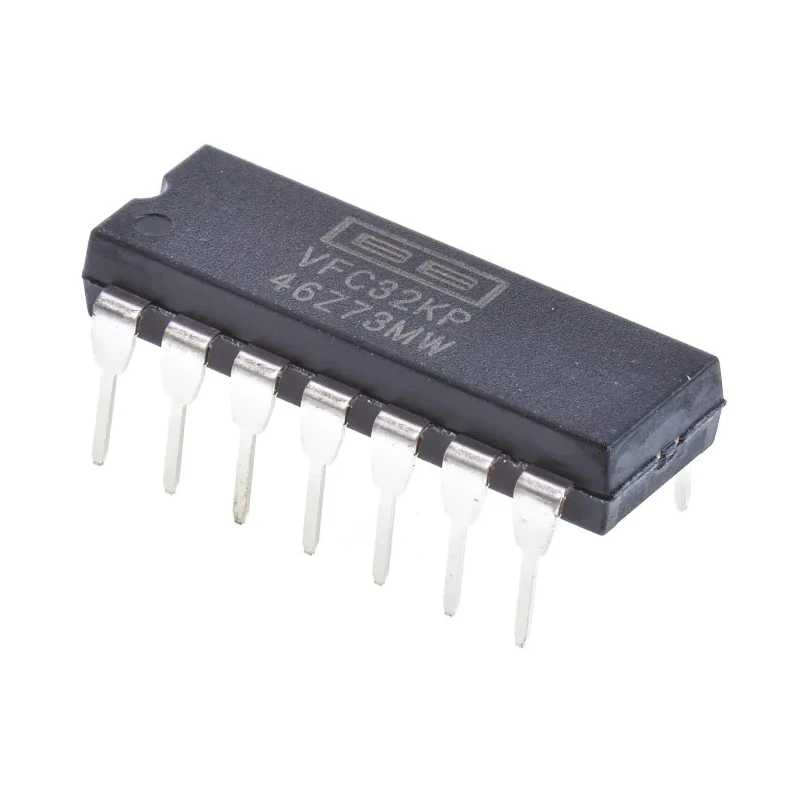

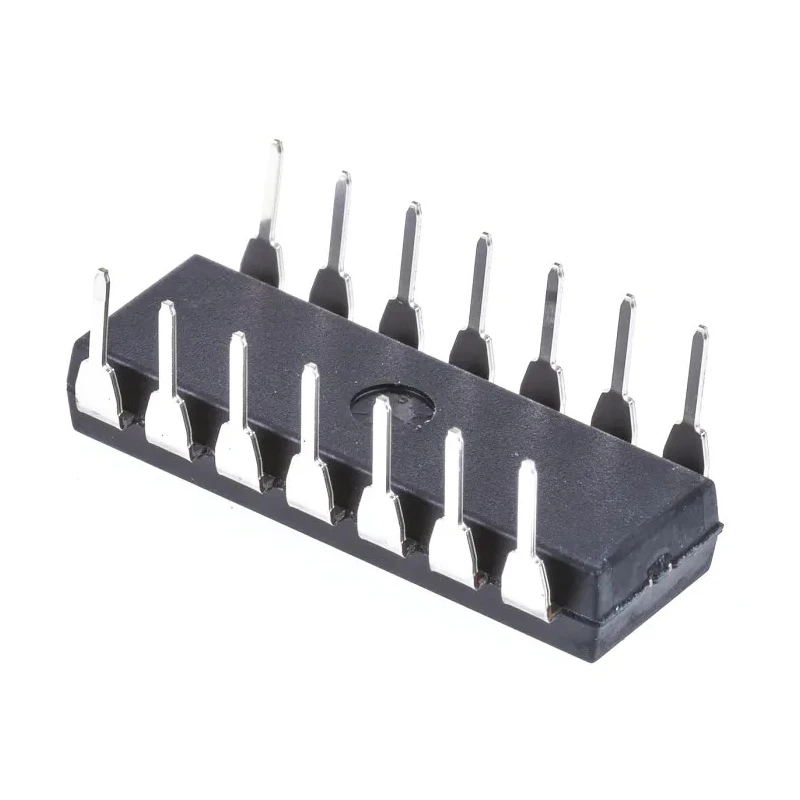

Texas Instruments Voltage-to-Frequency Converter 100 kHz ±0.05 %FSR, 14-Pin PDIP VFC32KP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | VFC32KP |
| Mount Type | Through Hole |
| Linearity error | ±0.05 %FSR |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Pin Count | 14 |
| Maximum Supply Voltage | 22V |
| Converter Type | Voltage |
| Converter Function | VFC, FVC |
| Full Scale Frequency | 100kHz |
Key Features
- Operates with a maximum supply voltage of 22 V through a 14-pin PDIP package.
- Designed for through hole mounting with robust PDIP packaging.
- Operating temperature range spans from 0°C to 70°C ensuring reliable performance.
- Compact dimensions include a length of 19.3 mm and a height of 4.57 mm for ease of integration.
- No automotive or other standard certifications applied, designed for general semiconductor applications.
- Ideal for applications such as isolated data transmission and motor speed control.
- Ensures excellent linearity and supports voltage or current input for flexible use.
Product Description
Texas Instruments VFC32KP is a high precision voltage-to-frequency converter featuring a full scale frequency of 100 kHz and exceptional linearity with a ±0.05 %FSR error margin. Encapsulated in a 14-pin PDIP package, this device supports both voltage-to-frequency and frequency-to-voltage conversions, making it versatile for various industrial and electronic applications.
The converter operates on a dual power supply with a maximum rated voltage of 22 V and is designed for through hole mounting, providing reliable mechanical stability. It performs reliably within a temperature range from 0°C to 70°C, making it suitable for environments with moderate temperature variations.
The compact package size of 19.3 mm length and 4.57 mm height allows for easy integration into circuit boards where space is a constraint.
This converter is often used in applications like isolated data transmission systems and motor speed control units where accurate frequency output proportional to input voltage is critical.
The device supports dual function conversion (voltage-to-frequency and frequency-to-voltage). Excellent linearity with ±0.05 %FSR linearity error ensures precise signal conversion. Dual supply operation with a maximum supply voltage of 22 V.
Through hole 14-pin PDIP package offers ease of installation. Operating temperature range from 0°C to 70°C enables stable performance in varied environments. Compact dimensions allow seamless integration in electronic circuits.
Applications include isolated data transmission and motor speed control. Explore the full range of semiconductor voltage-to-frequency and frequency-to-voltage converters at EnvMart for your precision electronics needs.
Explore more products in our Voltage-to-Frequency & Frequency-to-Voltage Converters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 22 V.
It features a full scale frequency of 100 kHz.
This unit operates within a temperature range from 0°C to 70°C.
The dimensions include a length of 19.3 mm and a height of 4.57 mm.
It is encapsulated in a 14-pin PDIP package designed for through hole mounting.
The linearity error for this model is ±0.05 %FSR.
It is suitable for applications such as isolated data transmission and motor speed control.
This model supports both voltage-to-frequency (VFC) and frequency-to-voltage (FVC) conversions.
It is designed for through hole mounting, providing reliable mechanical stability.
The pin count for this model is 14 pins.
The country of origin for this model is India.
