Texas Instruments Voltage-to-Frequency Converter 100 kHz ±0.14 %FSR 8-Pin MDIP LM331N/NOPB

Free Delivery in India | Lowest Global Shipping Charges

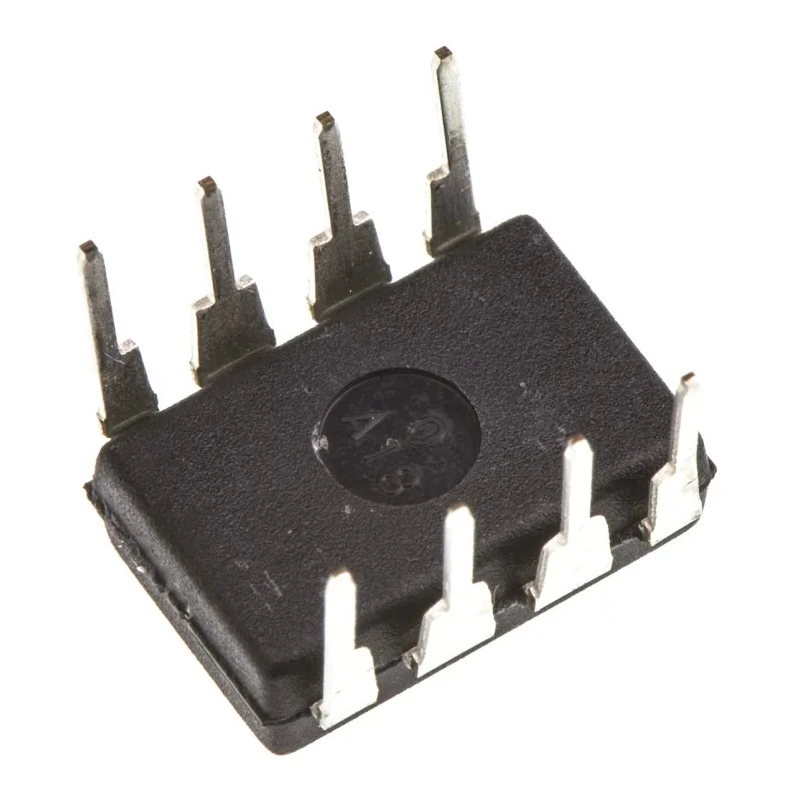

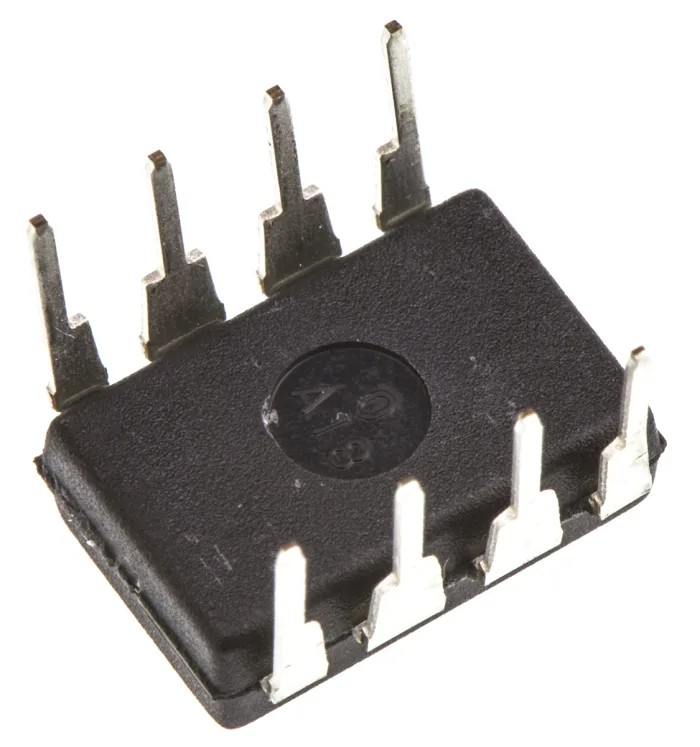

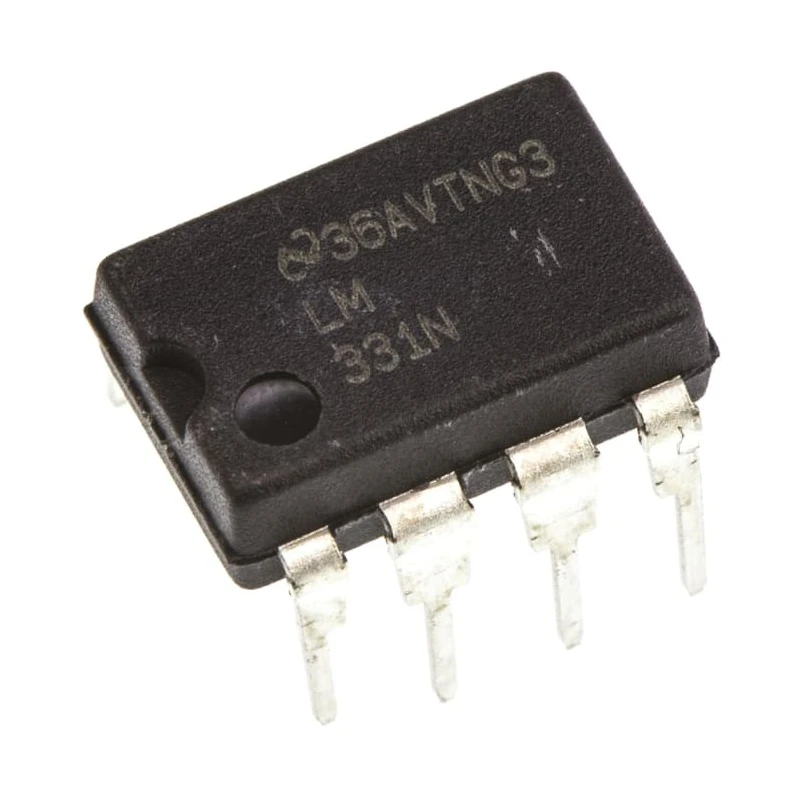

Texas Instruments Voltage-to-Frequency Converter 100 kHz ±0.14 %FSR 8-Pin MDIP LM331N/NOPB

Name: Texas Instruments Voltage-to-Frequency Converter 100 kHz ±0.14 %FSR 8-Pin MDIP LM331N/NOPB
Brand: Texas Instruments
SKU: 339213
Price: 8.05 USD
Availability: InStock



Category Voltage-to-Frequency & Frequency-to-Voltage Converters Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	3.3mm
Length	9.27mm
Model	LM331N/NOPB
Mount Type	Through Hole
Linearity error	±0.14 %FSR
Maximum Operating Temperature	70°C
Package Type	MDIP
Minimum Operating Temperature	0°C
Pin Count	8
Maximum Supply Voltage	40V
Minimum Supply Voltage	5V
Converter Type	Voltage
Converter Function	VFC
Full Scale Frequency	100kHz

Key Features

Operates with a single power supply voltage from 5V to 40V.
Features an 8-pin Molded Dual In-line Package (MDIP) for through-hole mounting.
Designed for analog-to-digital conversion applications with low power consumption and wide dynamic range.
Operating temperature range from 0°C to 70°C ensures reliable performance in industrial environments.
Compact dimensions with a length of 9.27 mm and height of 3.3 mm suit space-constrained designs.
No compliance with automotive or special standards is specified.
Suitable for applications such as signal processing, instrumentation, and control systems.

Product Description

Texas Instruments LM331N/NOPB is a precision voltage-to-frequency converter designed for robust industrial and electronic applications. It delivers a full scale frequency output of 100 kHz with a linearity error of ±0.14 %FSR, ensuring high accuracy and stability.

The device operates with a broad power supply range from 5V to 40V, powered by a single supply, facilitating ease of integration in different system architectures. Packaged in an 8-pin Molded Dual In-line Package (MDIP) with through-hole mounting, it simplifies assembly and repair processes.

Its compact physical size, with dimensions of 9.27 mm in length and 3.3 mm in height, makes it ideal for compact electronic equipment where space is critical. The temperature operating range of 0°C to 70°C enables reliable functioning in most industrial conditions, including manufacturing and instrumentation environments.

This voltage-to-frequency converter is particularly suited for analog-to-digital conversion applications, providing low power consumption and a wide dynamic range. The output frequency is directly proportional to the input voltage, facilitating precise frequency representation of analog signals. It finds applications in signal processing, control systems, and instrumentation, among others.

Consistent frequency output up to 100 kHz for high-speed applications. Low linearity error enhances measurement and signal accuracy. Standard 8-pin MDIP package allows through-hole mounting on various PCB types. Wide supply voltage range supports flexible system design.

Robust operating temperature suitability fits industrial use cases. Low power consumption optimizes energy efficiency in embedded systems. Ideal for analog-to-digital conversion tasks and frequency measurement.

Explore EnvMart’s comprehensive category of Voltage-to-Frequency & Frequency-to-Voltage Converters for more industrial-grade components from Texas Instruments and other leading manufacturers.

Explore more products in our Voltage-to-Frequency & Frequency-to-Voltage Converters category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The LM331N/NOPB delivers a full scale frequency output of 100 kHz, ensuring high accuracy and stability for various applications.

This voltage-to-frequency converter has a linearity error of ±0.14 %FSR, which enhances measurement and signal accuracy.

The operating temperature range for the LM331N/NOPB is from 0°C to 70°C, making it suitable for most industrial environments.

It has compact dimensions of 9.27 mm in length and 3.3 mm in height, which is ideal for space-constrained designs.

The LM331N/NOPB operates with a power supply voltage range from 5V to 40V, allowing for flexible system integration.

This converter is packaged in an 8-pin Molded Dual In-line Package (MDIP), which facilitates through-hole mounting.

This model is particularly suited for analog-to-digital conversion applications, as well as signal processing and control systems.

The output frequency of this converter is directly proportional to the input voltage, allowing for precise frequency representation of analog signals.

The LM331N/NOPB has a pin count of 8, which is standard for its package type.

No compliance with automotive or special standards is specified for this voltage-to-frequency converter.

This model supports through-hole mounting, which simplifies assembly and repair processes.

Key features include low power consumption, a wide dynamic range, and consistent frequency output up to 100 kHz, making it suitable for various industrial applications.
