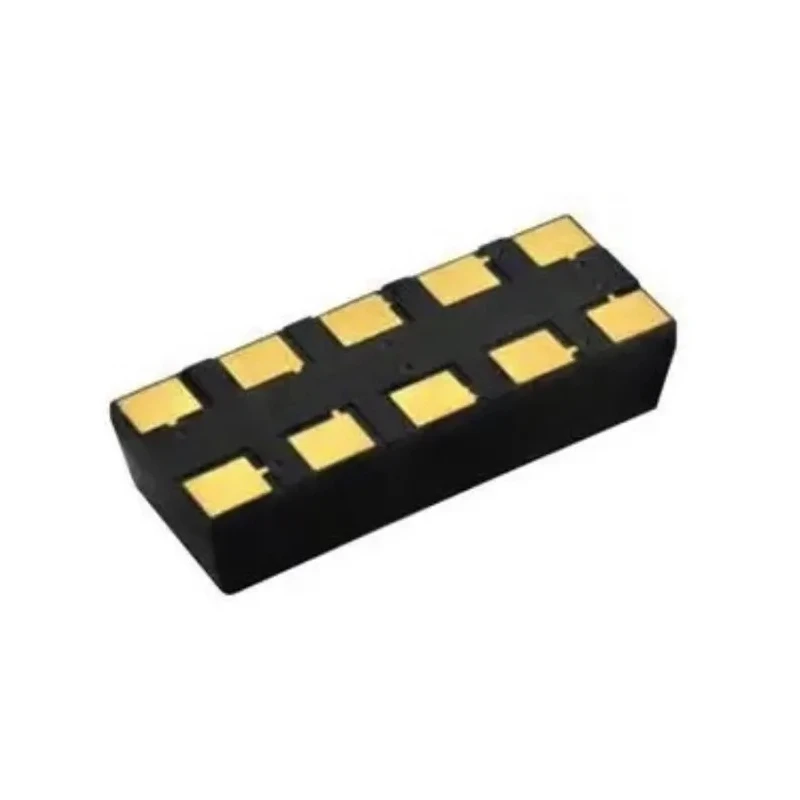

Vishay Ambient Light & Proximity Sensor 1.5 m 2.5 V to 3.6 V Surface Mount SMD 10 Pin VCNL4200

Vishay VCNL4200 ambient light and proximity sensor integrates advanced sensing technologies into a single compact surface-mount device. This sensor includes a high-sensitivity long-distance proximity sensor, ambient light sensor, and a 940 nm infrared emitter diode (IRED). Utilizing a CMOS process, it combines photodiodes, amplifiers, and analog-to-digital converters to provide precise sensing capabilities in a small 8.0 mm x 3.0 mm x 1.8 mm package.

The device offers a maximum sensing distance of 1.5 meters with a maximum switching frequency of 400 kHz, making it suitable for a variety of industrial and consumer electronics applications. The ambient light sensor delivers 16-bit high-resolution measurements, enabling accurate ambient light detection and adjustment. Its open drain output type simplifies integration with various microcontrollers and systems.

Equipped with Filtron™ technology, the VCNL4200 sensor robustly cancels background ambient light, enhancing performance under challenging lighting conditions. It supports low transmittance dark lens designs and features temperature compensation from -40 °C to +85 °C, making it reliable in diverse environmental conditions.

The sensor's supply voltage ranges from 2.5 V to 3.6 V, operating efficiently with an I2C (SMBus compatible) digital interface. It is packaged as a 10-pin surface-mount device, facilitating easy PCB assembly in compact designs.

Integrates infrared emitter (IRED), ambient light sensor (ALS), Proximity Sensor (PS), and signal conditioning IC within a single device. Operates ALS and PS in parallel for simultaneous ambient light and proximity measurements.

Employs Filtron™ technology to provide stable and robust background light cancellation. Temperature compensated to ensure consistent performance from -40 °C to +85 °C. Low power consumption suitable for battery-operated and energy-sensitive applications.

Compact SMD package with dimensions of 8.0 mm x 3.0 mm x 1.8 mm. Open drain output type for flexible connectivity options. Compatible with various applications including industrial automation, robotics, consumer electronics, and ambient light detection systems.

This Vishay VCNL4200 sensor is ideal for integration into systems requiring accurate distance sensing and ambient light monitoring, supporting enhanced device functionality in automotive, industrial, and consumer product designs. Available with a trusted country of origin designation as Philippines, it assures quality manufacturing standards.
