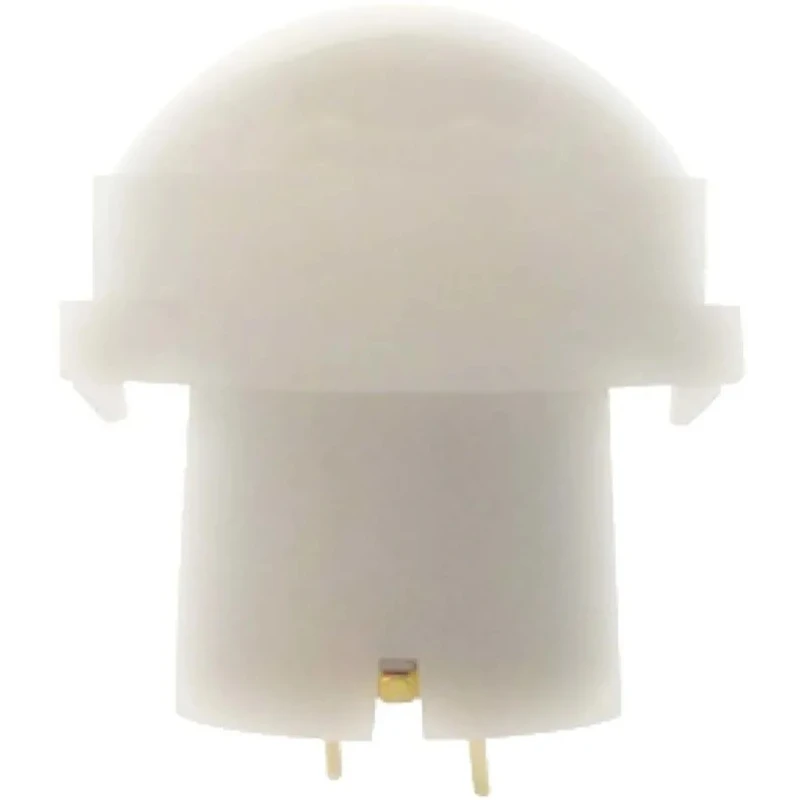

Panasonic Proximity Sensor with 2.2 m Sensing Distance, Digital Output, Through Hole Mount EKMB1293112

Panasonic EKMB1293112 is a passive infrared (PIR) proximity sensor designed for precise motion detection with a sensing distance of 2.2 meters. Equipped with a digital output, this through-hole mounted sensor is suitable for various industrial and commercial electronic applications. Operating with a supply voltage range from -0.3 V to 4.5 V, it supports low current consumption, making it ideal for battery-driven devices and energy-efficient systems.

The sensor features a Saturn lens providing dual-zone detection, enabling reliable motion sensing even in challenging environments. Its compact form factor, measuring 17.2 mm in height and 14.9 mm in width, allows effortless integration into printed circuit boards and other electronic assemblies.

With an ambient operating temperature range from -20°C to 60°C, the EKMB1293112 is suitable for a variety of industrial, commercial, and environmental applications, including security systems, automation, HVAC controls, and lighting control solutions. The sensor’s three-pin design facilitates straightforward wiring and mounting through standard through-hole PCB techniques.

Panasonic’s commitment to quality is demonstrated in this sensor's manufacture in Japan, ensuring reliable performance and longevity. The EKMB series sensors are known for their low standby currents (down to 1-6 µA for related models), which contribute to power savings in portable or battery-operated devices.

Maximum output current of 100μA enables efficient power usage. Digital output type ensures accurate signal transmission. Through-hole mount type supports easy assembly. Compact pin count of 3 aids in simple installation.

Durable operation across a wide temperature range from -20°C to 60°C. Low voltage operation down to -0.3 V supports flexible design requirements. Saturn lens design for enhanced dual-zone motion detection. Manufactured in Japan guaranteeing high standards of quality.

This sensor is well-suited for use in industrial automation, security systems, consumer electronics, and smart building applications. It delivers reliable detection performance in environments requiring sensitive motion sensing with minimal power consumption. Explore the wide range of Panasonic Proximity Sensors for integration into your next electronic design project at EnvMart.
