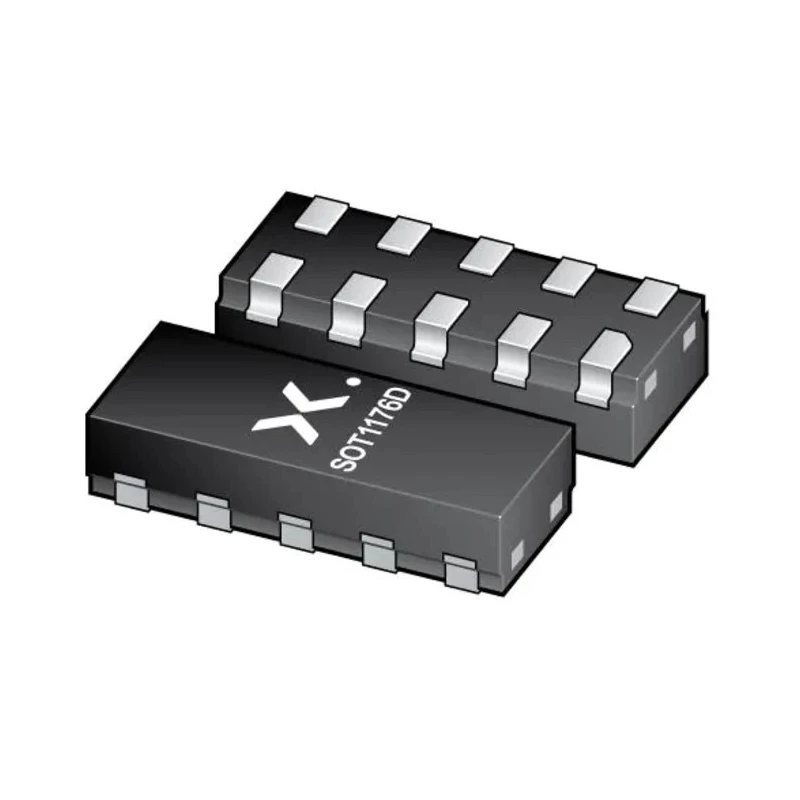

Nexperia Uni-Directional ESD Protection Diode 10-Pin DFN2510D PESD4USB3U-TBSX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.75mm |
| Length | 2.5mm |
| Model | PESD4USB3U-TBSX |
| Width | 1mm |
| Mount Type | Surface |
| Series | PESD4USB3U-TBS |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 2 |
| Standards/Approvals | ISO10605, IEC61000-4-2 Level 4 |
| Pin Count | 10 |
| Clamping Voltage VC | 3.5V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Uni-directional ESD protection with a 10-pin DFN2510D package.
- Minimum breakdown voltage of 6V and maximum reverse stand-off voltage of 3.3V.
- Capable of handling peak pulse current up to 7A with fast response.
- Supports line capacitance of only 0.5 pF, ideal for USB 3.2, HDMI, and Display Port interfaces.
- Wide operating temperature range from -55°C to 150°C for industrial reliability.
- Automotive compliant with AEC-Q101 standard for robust applications.
- Compact dimensions of 2.5mm length, 1mm width and 0.75mm height for space-saving PCB designs.
- Meets ISO10605 and IEC61000-4-2 Level 4 standards for superior ESD protection.
Product Description
Nexperia PESD4USB3U-TBSX Uni-Directional ESD Protection Diode, housed in a compact 10-pin DFN2510D surface mount package, provides reliable electrostatic discharge protection for sensitive electronics.
Designed specifically for high-speed interface protection, this device safeguards Super Speed USB 3.2 (10 Gbps), HDMI 2.0, Display Port, eSATA, LVDS, and GMSL SerDes against damaging ESD events up to ±15 kV. Its very low line capacitance of 0.5 pF per channel ensures minimal signal distortion.
The diode features outstanding system protection, combining deep snap-back with a dynamic resistance of 0.4 Ohms, facilitating excellent clamping voltage of 3.5V and withstanding peak pulse currents of 7A. It operates within a broad temperature range from -55°C to 150°C, making it highly suited for industrial, automotive, and demanding environments.
Compact physical dimensions (2.5mm length, 1mm width, 0.75mm height) and side-wettable flanks support automated PCB assembly and side wettability for reliable solder joints. It meets strict industry standards including ISO10605 and IEC61000-4-2 Level 4 for ESD robustness and is automotive qualified to AEC-Q101.
Typical applications include infotainment systems like USB 2.0 and SuperSpeed USB 3.2 devices, automotive audio-video monitors, vehicle displays and cameras, as well as SerDes implementations such as GMSL, FPD-Link, and LVDS signaling.
Uni-directional ESD Protection Diode with 10-pin DFN2510D package for compact assembly. Low line capacitance of 0.5 pF enables high-speed signal integrity for 10 Gbps data links. Clamping voltage at 3.5 V combined with 7 A peak pulse current capability ensures effective surge suppression.
Wide operating temperature range (-55°C to 150°C) for reliability in harsh conditions. Automotive grade compliance with AEC-Q101 standard. Meets IEC61000-4-2 Level 4 ESD immunity standards for exceptional protection. Compatible with USB 3.2, HDMI 2.0, Display Port, eSATA, and LVDS applications.
Small form factor with side-wettable flanks supports automated PCB manufacturing. Designed for infotainment, automotive video systems, and high-speed data link ESD protection. Explore more electronic components, semiconductors, and ESD protection devices at EnvMart to support your industrial, automotive, and consumer electronics designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It can handle a maximum peak pulse current of 7A.
The clamping voltage is 3.5V.
The minimum breakdown voltage is 6V.
The maximum reverse stand-off voltage is 3.3V.
It has a line capacitance of 0.5 pF, making it suitable for high-speed applications.
It operates within a temperature range of -55°C to 150°C.
Yes, it is compliant with the AEC-Q101 automotive standard.
It comes in a compact 10-pin DFN2510D surface mount package.
It meets ISO10605 and IEC61000-4-2 Level 4 standards for ESD immunity.
It is suitable for applications such as USB 2.0, SuperSpeed USB 3.2, HDMI 2.0, and Display Port interfaces.
The dimensions are 2.5mm in length, 1mm in width, and 0.75mm in height.
It is a uni-directional ESD protection diode designed for high-speed interface protection.
