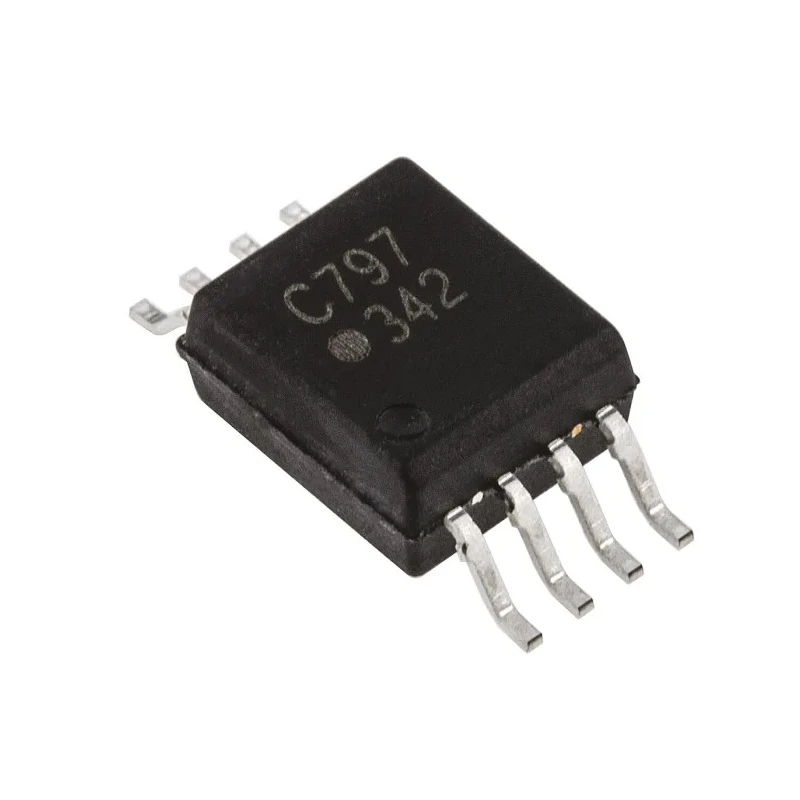

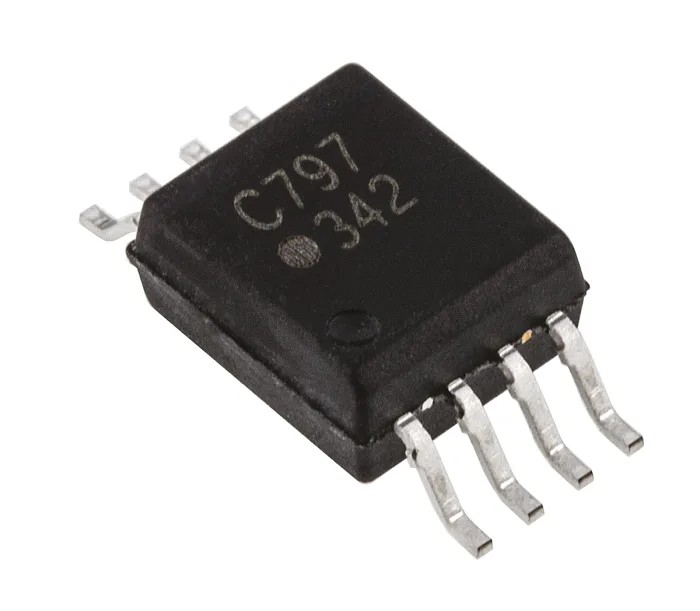

Broadcom Delta Sigma 1-Bit Analogue to Digital Converter ADC, Surface Mount, 8-Pin SSOP ACPL-C797-000E
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 1 bit |
| Brand | Broadcom |
| Height | 3.61mm |
| Length | 5.85mm |
| Model | ACPL-C797-000E |
| Mount Type | Surface |
| Series | ACPL-C797 |
| Input Type | Voltage |
| Maximum Operating Temperature | 105°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Architecture | Delta Sigma |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Number of ADCs | 1 |
Key Features
- Utilizes Delta Sigma architecture for precise current and voltage sensing.
- Compact 8-pin SSOP surface-mount package for easy PCB integration.
- Operates with supply voltage between 3V and 5.5V and temperature range from -40°C to 105°C.
- High Common Mode Rejection (CMR) for reliable measurements in noisy environments.
- Suitable for industrial applications including motor drives and power inverters.
- Offers an effective alternative to traditional Hall effect current sensors.
- Compact form factor with dimensions 5.85 mm length by 3.61 mm height.
- No automotive standard certifications; designed for general industrial use.
Product Description
Broadcom ACPL-C797-000E is a state-of-the-art 1-bit Delta Sigma Analogue to Digital Converter (ADC) designed specifically for precision current and voltage measurements in power converters. This surface-mount device comes in an 8-pin SSOP package with compact dimensions of 5.85 mm length and 3.61 mm height, making it suitable for dense PCB layouts.
The ADC features advanced Sigma-Delta Modulator technology, delivering accurate measurements with high Common Mode Rejection (CMR), ensuring performance stability even in challenging industrial environments. It supports a supply voltage operating range from 3V minimum to 5.5V maximum, and operates reliably across a broad temperature range from -40°C to 105°C, catering to demanding applications.
This component is widely utilized in industrial and commercial fields such as motor drive current sensing, power inverter voltage monitoring, and isolation amplification in voltage signals. Its design provides a compact and effective alternative to Hall effect sensors, improving signal fidelity and insulation performance.
Packaged as an 8-pin SSOP surface-mount device, the ACPL-C797-000E enables straightforward PCB mounting and integration into various power electronics systems. Its absence of automotive certification means it is suited for general industrial rather than automotive-specific applications.
This ADC integrates Delta Sigma architecture for precise current and voltage sensing. Compact SSOP package ensures efficient mounting on circuit boards. Suitable for motor drives and power inverter applications requiring isolated signal measurement.
Wide operating temperature and supply voltage ranges enhance versatility across industrial environments. High Common Mode Rejection (CMR) enables noise-resistant readings. The device offers a reliable alternative to traditional Hall effect current sensors.
Low-profile 8-pin configuration aids in space-saving design architectures.
This product falls under the Electronics & Electricals category, specifically within Semiconductor components and Analogue to Digital Converters. It is engineered for industrial, manufacturing, and laboratory use-cases where accurate signal conversion and isolation are critical. Explore additional semiconductor converter products and accessories on EnvMart for expanded options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resolution of this ADC is 1 bit.
It operates within a temperature range of -40°C to 105°C.
This ADC supports a supply voltage range from 3V to 5.5V.
The dimensions of this model are 5.85 mm in length and 3.61 mm in height.
It comes in an 8-pin SSOP surface-mount package.
It is suitable for industrial applications such as motor drives and power inverters, where precise current and voltage measurements are needed.
It utilizes Delta Sigma architecture for precise current and voltage sensing.
The high Common Mode Rejection (CMR) ensures reliable measurements in noisy environments, enhancing performance stability.
This model integrates 1 ADC.
The input type for this ADC is voltage.
The country of origin for this product is India.
It offers improved signal fidelity and insulation performance, making it an effective alternative to traditional Hall effect current sensors.
