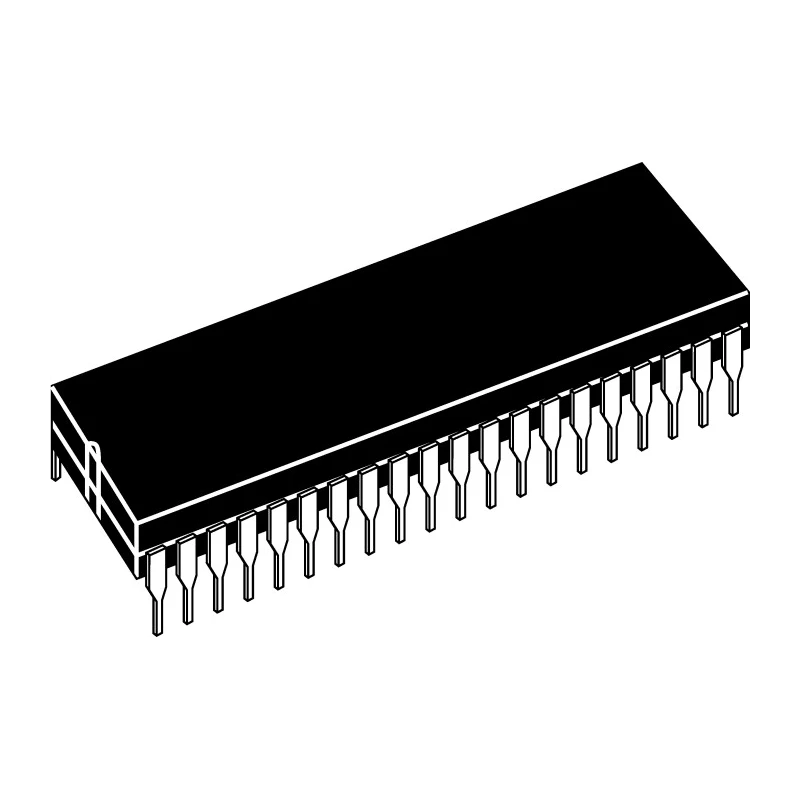

Microchip Dual Slope 12 Bit 10 SPS Analogue to Digital Converter, 40-Pin PDIP TC7109CPL
Specifications
| Country of Origin | Thailand |
|---|---|
| Resolution | 12 bit |
| Brand | Microchip |
| Height | 6.25mm |
| Length | 52.38mm |
| Model | TC7109CPL |
| Mount Type | Through Hole |
| Sampling rate | 10sps |
| Series | TC7109 |
| Input Type | Voltage |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Interface Type | Parallel/Serial |
| Architecture | Dual Slope |
| Pin Count | 40 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -5V |
| Number of ADCs | 1 |
Key Features
- Features a 12-bit resolution suitable for precise analogue-to-digital conversion.
- Operates at a sampling rate of 10 samples per second.
- Designed with a dual slope architecture for accuracy and noise rejection.
- Mounts through-hole using a 40-pin PDIP package for easy integration in circuits.
- Supports parallel or serial interface types for flexible connectivity.
- Operates within a temperature range of 0°C to 70°C for industrial reliability.
- Accepts input voltage signals and operates with supply voltages from -5 V to 5 V.
Product Description
Microchip TC7109CPL is a precision dual slope analogue to digital converter featuring a 12-bit resolution and a sampling rate of 10 samples per second. This device is housed in a 40-pin PDIP package designed for through-hole mounting applications, providing easy installation and reliable electrical connections.
The device supports both parallel and serial interface configurations, offering versatility for integration into various electronic systems. Operating voltage ranges from -5 V to 5 V allow compatibility with diverse power supply environments. The converter handles voltage input types and is optimized for industrial temperature conditions between 0°C and 70°C, making it suitable for robust electronic and industrial control applications.
With precise dual slope architecture, the TC7109CPL achieves high noise rejection and measurement accuracy, making it ideal for instrumentation and data acquisition systems requiring reliable performance. Its physical length of 52.38 mm and compact height of 6.25 mm facilitates efficient use of PCB real estate in design implementations.
The device is suitable for applications such as precision measurement tools, industrial process controls, and embedded system monitoring where stable and accurate ADC conversion is critical.
Features a 12-bit resolution suitable for precise analogue-to-digital conversion. Operates at a sampling rate of 10 samples per second. Designed with a dual slope architecture for accuracy and noise rejection. Mounts through-hole using a 40-pin PDIP package for easy integration in circuits.
Supports parallel or serial interface types for flexible connectivity. Operates within a temperature range of 0°C to 70°C for industrial reliability. Accepts input voltage signals and operates with supply voltages from -5 V to 5 V.
Compact dimensions: length of 52.38 mm and height of 6.25 mm allow space-effective PCB design. Explore more high quality semiconductor and converter components at EnvMart to meet your industrial and electronic design requirements.
Explore more products in our Analogue to Digital Converters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a resolution of 12 bits, suitable for precise analogue-to-digital conversion.
The device operates at a sampling rate of 10 samples per second (10 SPS).
It accepts voltage input signals for conversion to digital format.
It operates within a temperature range of 0°C to 70°C, suitable for industrial applications.
The TC7109CPL is housed in a 40-pin PDIP package designed for through-hole mounting.
This model supports both parallel and serial interface types for flexible connectivity.
It has a length of 52.38 mm and a height of 6.25 mm, allowing for efficient PCB design.
It operates with supply voltages ranging from -5 V to 5 V.
The dual slope architecture enhances accuracy and noise rejection in the conversion process.
It is suitable for applications such as precision measurement tools and industrial process controls.
This model contains one analogue to digital converter (ADC).
The country of origin for this product is Thailand.
