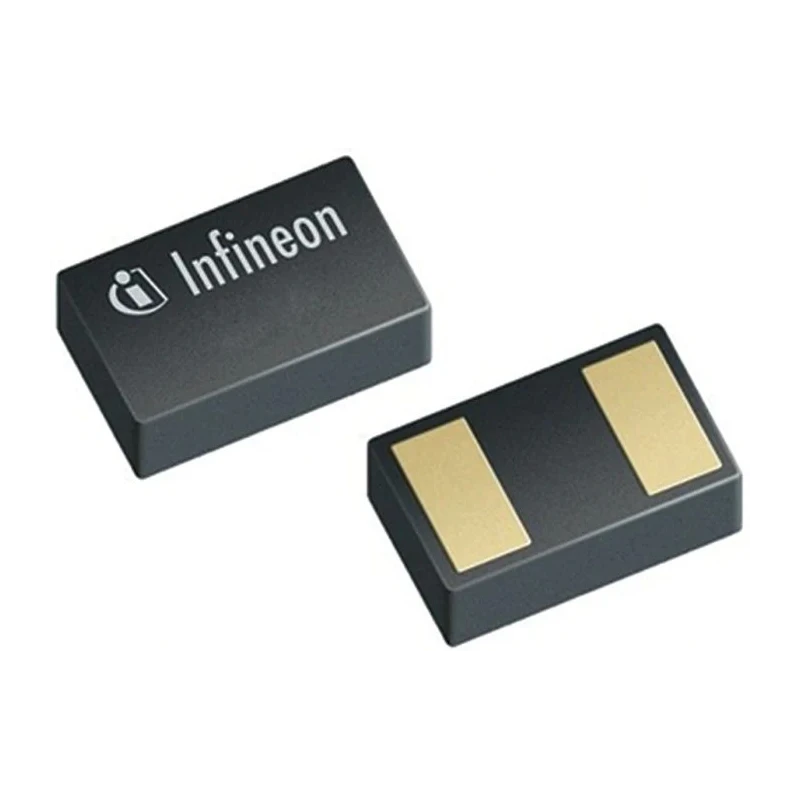

Infineon 1-Element Uni-Directional TVS Diode 2-Pin TSLP, Surface Mount, 6V Breakdown Voltage ESD114U102ELE6327XTMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon 1-Element Uni-Directional TVS Diode 2-Pin TSLP, Surface Mount, 6V Breakdown Voltage ESD114U102ELE6327XTMA1

Name: Infineon 1-Element Uni-Directional TVS Diode 2-Pin TSLP, Surface Mount, 6V Breakdown Voltage ESD114U102ELE6327XTMA1
Brand: Infineon
SKU: 138899



Category TVS Diodes Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	0.26mm
Length	1mm
Model	ESD114U102ELE6327XTMA1
Width	0.6mm
Mount Type	Surface
Series	ESD
Maximum Operating Temperature	125°C
Package Type	TSLP
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	28V
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	6V
Maximum Reverse Stand-off Voltage Vwm	5.3V
Test Current It	1mA
Maximum Peak Pulse Current Ippm	3A
Maximum Reverse Leakage Current	100nA

Key Features

Provides transient voltage suppression for sensitive components.
Features a minimum breakdown voltage of 6V and clamping voltage of 28V.
Has a maximum peak pulse current rating of 3A for robust protection.
Compact 2-pin TSLP package with dimensions 1mm length, 0.6mm width, and 0.26mm height.
Operates reliably from -55°C up to 125°C for demanding environments.
Designed for surface mount applications in semiconductor-based circuit protection.
Offers uni-directional protection with a maximum reverse stand-off voltage of 5.3V.
Has low leakage current of 100nA to ensure minimal power loss during operation.

Product Description

Infineon ESD114U102ELE6327XTMA1 is a 1-element uni-directional transient voltage suppression (TVS) diode housed in a low-profile 2-pin TSLP surface mount package, engineered for high-speed Electrostatic Discharge (ESD) protection in sensitive electronic and semiconductor circuits.

This TVS diode features a minimum breakdown voltage (Vbr) of 6 volts and a maximum reverse stand-off voltage (Vwm) of 5.3 volts, enabling precise voltage regulation during transient events. The device clamps voltage spikes up to 28 volts ensuring safe circuit operation.

With a maximum peak pulse current rating (Ippm) of 3A and test current (It) of 1mA, this diode offers robust surge protection suitable for industrial, consumer electronics, telecommunications, and automotive circuit applications requiring ESD mitigation.

The small footprint package measures 1mm in length, 0.6mm in width, and 0.26mm in height, making it ideal for high-density PCB assembly. It operates effectively over a temperature range of -55°C to 125°C, ensuring reliability across harsh operating conditions.

Key features include low maximum leakage current of 100nA, surface mount mount type, and single element per chip configuration, supporting streamlined integration into modern electronics designs.

Transient voltage suppression for ESD sensitive components. Uni-directional diode configuration for controlled current flow. Compact TSLP package for high-density board layouts. Wide operating temperature range from -55°C to 125°C.

Low reverse leakage current minimizes power dissipation. Maximum peak pulse current rating of 3A for surge robustness. Compliance with typical semiconductor quality standards.

This Infineon TVS diode series is commonly applied in electronic components, power connectors, semiconductors, and discrete semiconductor protection circuits. It forms an essential part of protection strategies in telecommunications, automotive systems, industrial electronics, and consumer goods to safeguard sensitive devices from voltage transients.
